Is the Reduction with external thread BSPT/internal thread BSP, stainless steel, type 62080 suitable for use at -20Â°C to +225Â°C and up to 140 bar pressure?

Yes. Reduction with external thread BSPT/internal thread BSP, stainless steel, type 62080 appears suitable for use at -20Â°C to +225Â°C and up to 140 bar, based on the specifications of the comparable Stainless steel reducing adapter type 62040: Material AISI 316L steel, operating temperature -20Â°C to +225Â°C, and working pressure 140 bar. Assuming type 62080 shares the same material and engineering/design standards as type 62040, it should meet those temperature and pressure limits. If you require absolute confirmation for critical or safetyâcritical applications, verify the manufacturerâs datasheet or certification for type 62080 to confirm identical ratings and any applicationâspecific restrictions.

Can Reduction with external thread BSPT/internal thread BSP, stainless steel, type 62080 withstand temperatures from -20Â°C to +225Â°C and pressures up to 140 bar?

Yes. Reduction with external thread BSPT/internal thread BSP, stainless steel, type 62080 can withstand temperatures from -20Â°C to +225Â°C and pressures up to 140 bar, based on the identical material (AISI 316L) and specified operating limits of the described stainless steel reducing adapter type 62040. Ensure installation and service conditions (media compatibility, thread sealing, dynamic loads) do not introduce additional stresses beyond these rated limits.

Can Reduction with external thread BSPT/internal thread BSP, stainless steel, type 62080 be used safely at pressures up to 140 bar?

Based on the provided data for the Stainless steel reducing adapter type 62040 (AISI 316L). operating temperature â20Â°C to +225Â°C and working pressure 140 bar. you can infer safe use parameters for the Reduction with external thread BSPT/internal thread BSP, stainless steel, type 62080 only if the two parts are functionally and materially equivalent (same geometry, wall thickness, material grade, manufacturing standard and thread sealing method). If the type 62080 is made of AISI 316L stainless steel, shares identical pressure-rating design (including wall thickness and thread engagement), and will be used within the same temperature range (â20Â°C to +225Â°C) and with the same media and sealing arrangement, then it may be used safely at pressures up to 140 bar. However, you must verify the following before declaring safe use: - Manufacturerâs official pressure rating for type 62080 explicitly states 140 bar or higher. - Material is AISI 316L (or equivalent) and manufacturing/heat treatment match type 62040. - Thread dimensions, engagement length and wall thickness are equal or superior to type 62040. - Application temperature stays within â20Â°C to +225Â°C. - Compatible media (corrosion, chemical attack) and appropriate sealing (tape, sealant, or gasket) are used. - Installation torque and assembly procedures follow manufacturer recommendations. - System transient pressures, vibration and fatigue loads do not exceed design limits. - Compliance with applicable standards/certifications and pressure equipment regulations. If any of these cannot be confirmed, do not assume safe use at 140 bar; obtain manufacturer documentation or engineering validation (calculation or testing) for type 62080.

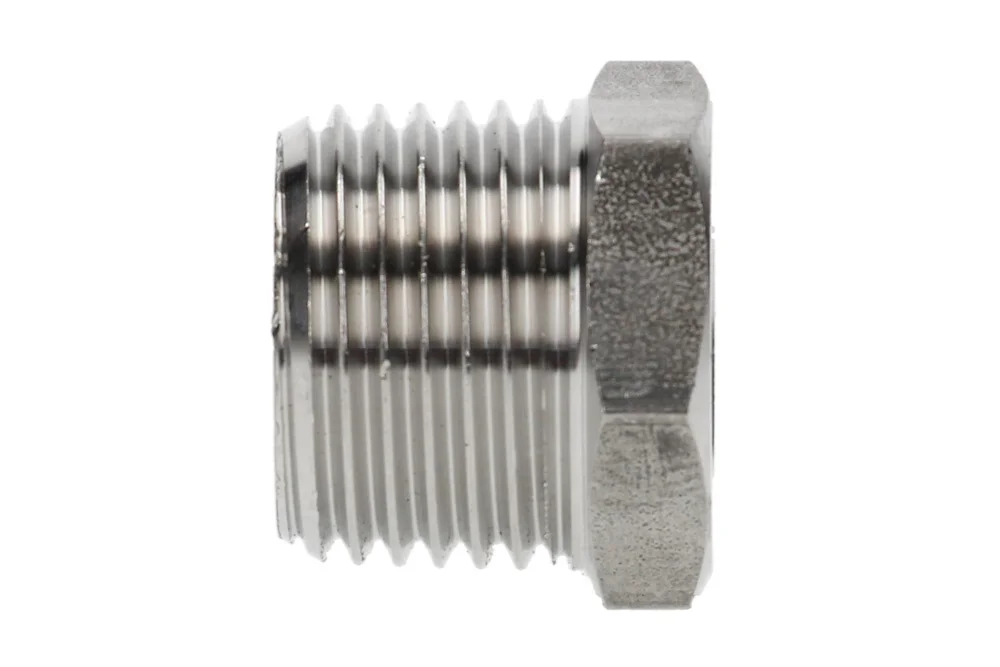

Reducer with BSPT male / BSP female thread, stainless steel, type 62080

All products, Threaded pneumatic fittings/

Additional information

Material	SS – stainless steel

Reducing adapter made of stainless steel, type 62040, with BSPT male thread and BSP female thread. Material: AISI 316L steel. Operating temperature: from -20°C to +225°C. Working pressure: 140 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AI-62080-04-02	Reducer 1/4" BSPT male / 1/8" BSP female, AISI 316L	-	140	In stock	Enquiry
AI-62080-06-02	Reducer 3/8" BSPT male / 1/8" BSP female, AISI 316L	-	140	In stock	Enquiry
AI-62080-06-04	Reducer 3/8" BSPT male / 1/4" BSP female, AISI 316L	-	140	In stock	Enquiry
AI-62080-08-04	Reducer 1/2" BSPT male / 1/4" BSP female, AISI 316L	-	140	In stock	Enquiry
AI-62080-08-06	Reducer 1/2" BSPT male / 3/8" BSP female, AISI 316L	-	140	In stock	Enquiry
AI-62080-12-08	Reducer 3/4" BSPT male / 1/2" BSP female, AISI 316L	-	140	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Reducing adapter made of stainless steel, type 62040, with BSPT male thread and BSP female thread. Material: AISI 316L steel. Operating temperature: from -20°C to +225°C. Working pressure: 140 bar.
