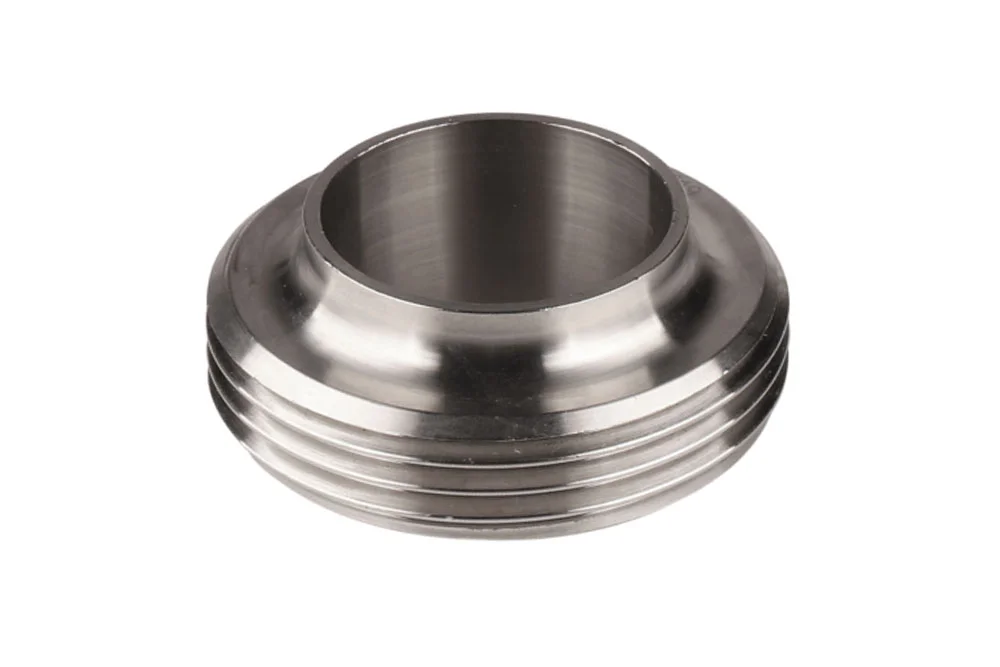

RJT end with GZ for welding, stainless steel, type RZS

All products, Hygienic stainless steel couplings/

Additional information

Material	SS – stainless steel

RJT end with external thread, for welding, according to BS 4825-5. Maximum allowable working pressure (for the coupling itself according to BS 4825-5): 10 bar. Operating temperature: depending on the type of material of the applied gasket. Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-RZS-025	RJT GZ 1" end fitting for welding, AISI 316	-	10	In stock	Enquiry
NH-RZS-040	RJT end fitting GZ 1.1/2" for welding, AISI 316	-	10	In stock	Enquiry
NH-RZS-050	RJT GZ 2" end fitting for welding, AISI 316	-	10	In stock	Enquiry
NH-RZS-065	RJT GZ 2.1/2" end fitting for welding, AISI 316	-	10	In stock	Enquiry
NH-RZS-075	RJT GZ 3" end fitting for welding, AISI 316	-	10	In stock	Enquiry
NH-RZS-100	RJT GZ 4" end fitting for welding, AISI 316	-	10	In stock	Enquiry
