Is the SC shell bracket (EN 14420-3/DIN 2817), stainless steel, compatible with hoses rated for 25 bar working pressure and safety flanges?

Yes. The SC shell bracket (EN 14420-3/DIN 2817), stainless steel is compatible with hoses rated for 25 bar working pressure when used with hoses and ends that meet EN 14420-3 (DIN 2817) requirements. The product description states the shell clamp is AISI 316 stainless steel, designed to secure hoses with a safety flange, and specifies working pressure 25 bar provided an appropriately selected hose and end EN 14420-3 are used. Ensure you match the correct DN (hose internal diameter and wall thickness), verify the hose and safety flange are certified to EN 14420-3 for 25 bar, and follow manufacturer installation and torque recommendations for a reliable, safe connection.

Can the SC shell bracket (EN 14420-3/DIN 2817), stainless steel, be used with hoses requiring a 25 bar working pressure and safety flanges?

Yes. The SC shell bracket (EN 14420-3/DIN 2817), stainless steel, is suitable for use with hoses requiring a 25 bar working pressure and safety flanges, provided the hose and end fittings are correctly selected and sized (DN = internal diameter x wall thickness) and are compliant with EN 14420-3. Material AISI 316 and the specified working pressure 25 bar apply when the hose assembly, flanges and installation meet the standardâs requirements.

Does the SC shell bracket (EN 14420-3/DIN 2817), stainless steel, support hoses with safety flanges at 25 bar?

Yes. The SC shell bracket (EN 14420-3/DIN 2817), stainless steel, is designed to secure hoses with a safety flange andâwhen used with a hose and end fittings that are correctly selected and manufactured to EN 14420-3âsupports operation at a working pressure of 25 bar. The product specifications state: material AISI 316 and working pressure 25 bar (with appropriately selected hose and end EN 14420-3). Ensure the hose diameter and wall thickness (DN) match the bracket size and that the complete hose assembly, including flange and hose construction, is rated for 25 bar per EN 14420-3 to guarantee safe operation.

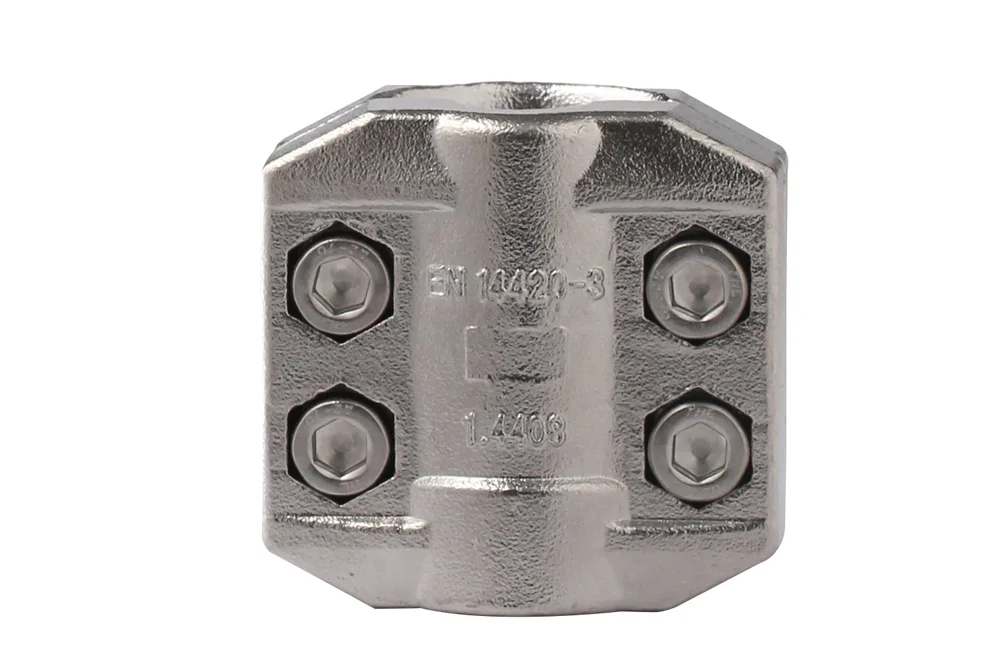

SC shell bracket (EN 14420-3/DIN 2817), stainless steel

Additional information

Material	SS – stainless steel

Shell clamp according to EN 14420-3 (DIN 2817) designed for securing hoses at ends with a safety flange. DN – internal diameter of the hose x wall thickness of the hose. Material: AISI 316 steel. Working pressure: 25 bar (with appropriately selected hose and end EN 14420-3).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-SC-013-050-SS	SC shell clamp 13x5 mm, SS	-	-	In stock	Enquiry
TI-SC-019-060-SS	SC shell clamp 19x6 mm, SS	-	-	In stock	Enquiry
TI-SC-025-060-SS	SC shell clamp 25x6 mm, SS	-	-	In stock	Enquiry
TI-SC-032-060-SS	SC shell clamp 32x6 mm, SS	-	-	In stock	Enquiry
TI-SC-038-065-SS	SC shell clamp 38x6.5 mm, SS	-	-	In stock	Enquiry
TI-SC-050-060-SS	SC shell clamp 50x6 mm, SS	-	-	In stock	Enquiry
TI-SC-050-080-SS	SC shell clamp 50x8 mm, SS	-	-	In stock	Enquiry
TI-SC-065-070-SS	SC shell clamp 63x8 mm, SS	-	-	In stock	Enquiry
TI-SC-075-080-SS	SC shell clamp 75x8 mm, SS	-	-	In stock	Enquiry
TI-SC-100-080-SS	SC shell clamp 100x8 mm, SS	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Shell clamp according to EN 14420-3 (DIN 2817) designed for securing hoses at ends with a safety flange. DN – internal diameter of the hose x wall thickness of the hose. Material: AISI 316 steel. Working pressure: 25 bar (with appropriately selected hose and end EN 14420-3).
