Can Screw connection tee DIN 2353 with metric FG, carbon steel, zinc-nickel, type TE-MT be sealed reliably with Teflon tape or should an anaerobic sealant be used for higher pressure applications?

Screw connection tee DIN 2353 with metric FG, carbon steel, zinc-nickel, type TE-MT: sealing on the thread may be achieved with either PTFE (Teflon) tape or an anaerobic sealant, but choice depends on service conditions. Use PTFE tape when: - Pressures and temperatures are moderate and within the componentâs rated limits (typical hydraulic/industrial fittings at standard pressures). - You need easy assembly/disassembly and resistance to many fluids. - You apply tape correctly (wrap neatly, correct amount, avoid contaminating mating surfaces) to avoid extrusion or pieces entering the system. Use an anaerobic sealant when: - Higher pressure, cycling loads, vibration, or critical leak-tightness are expected. - You require a more durable, pressure-resistant, vibration-resistant seal and reduced risk of creep or tape migration. - Thread sealing where tapered metric external thread is specified to be sealed on the thread . anaerobic products designed for metal threads will cure in the absence of air and provide a joint-strengthening, leak-proof seal. Given the TE-MTâs zinc-nickel coating and carbon steel construction, choose an anaerobic sealant compatible with plated surfaces to avoid corrosion or adhesion issues. For high-pressure or safety-critical applications prefer an anaerobic sealant rated for the operating pressure and temperature; for routine, lower-pressure use, correctly applied PTFE tape is acceptable.

Can Screw connection tee DIN 2353 with metric FG, carbon steel, zinc-nickel, type TE-MT be sealed reliably with Teflon tape or is anaerobic sealant recommended for higher pressures?

Screw connection tee DIN 2353 with metric FG, carbon steel, zinc-nickel, type TE-MT: the 24Â° DIN 2353 socket seals by cone; the metric tapered external thread is specified to seal on the thread and may be sealed with Teflon tape or an anaerobic sealant. For low-to-moderate pressures and static, non-vibrating installations, correct application of quality PTFE tape can provide reliable sealing. For higher pressures, dynamic conditions, vibration, or where leakage risk must be minimized, an anaerobic thread sealant is recommended - it offers stronger, more pressure-resistant and vibration-resistant sealing and fills minor thread imperfections. Follow manufacturer torque/specs and cure times for anaerobic products; ensure compatibility with system fluids.

Is Screw connection tee DIN 2353 with metric FG, carbon steel, zinc-nickel, type TE-MT better sealed with Teflon tape or anaerobic sealant for high-pressure use?

For Screw connection tee DIN 2353 with metric FG, carbon steel, zinc-nickel, type TE-MT used in high-pressure applications, anaerobic sealant is generally the better choice over Teflon tape. Why: - DIN 2353 TE-MT is a 24Â° socket with external metric thread and an external metric tapered thread where sealing on the thread is permitted. High-pressure systems demand reliable, vibration-resistant seals that do not extrude or degrade under pressure. - Teflon tape (PTFE) can work for low-to-medium pressure and non-critical joints but may compress, migrate, or shed particles under high pressure and vibration, risking leaks or contamination. - Anaerobic sealants (threadlock/pipe sealants rated for hydraulic use) cure in the absence of air to form a tough, gap-filling polymer that resists pressure, vibration, and temperature cycling. Properly chosen anaerobic sealants provide consistent sealing on metal threads, prevent loosening, and maintain integrity in high-pressure hydraulic systems. Selection and application tips: - Choose an anaerobic sealant specifically rated for hydraulic/high-pressure steel connections and compatible with carbon steel and zinc-nickel coatings. Verify pressure and temperature ratings and chemical compatibility with the fluid. - Clean threads thoroughly of oils, grease, and old tape. Apply sealant evenly to the male threads per manufacturer instructions; avoid contaminating the 24Â° sealing face. - Assemble to the specified torque and allow cure time as recommended before pressurizing. - For assemblies subject to disassembly, select a removable-strength anaerobic product. Conclusion: For Screw connection tee DIN 2353 with metric FG, carbon steel, zinc-nickel, type TE-MT in high-pressure service, use a qualified anaerobic sealant rather than Teflon tape.

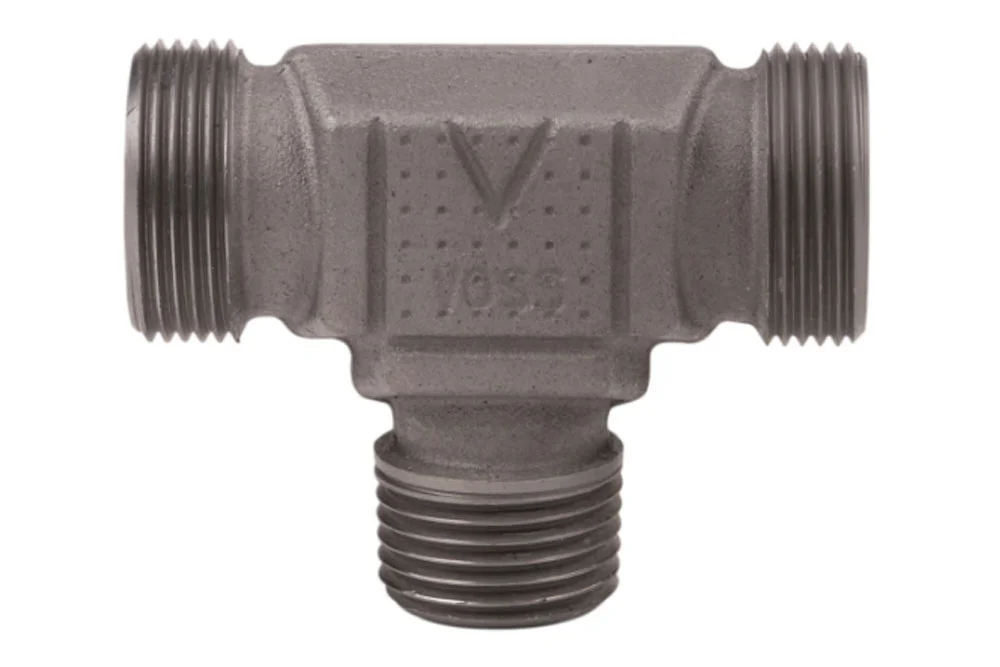

Screw connection tee DIN 2353 with metric FG, carbon steel, zinc-nickel, type TE-MT

Additional information

Material	CS – steel (cast iron)
Standard length [m]	30

DIN 2353 threaded tee coupling, type TE-MT: 24° DIN 2353 socket with external metric thread and external metric tapered thread (sealing on the thread – with Teflon tape or anaerobic sealant). Available as: LL (very light series), L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which is characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel. Safety factor: 2.5:1.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-TE-04LL-MT-08-CN	DIN 2353 connector TE 4LL M8x1, Zn-Ni	-	100	In stock	Enquiry
HD-TE-06L-MT-10-CN	DIN 2353 fitting TE 6L M10x1, Zn-Ni	-	250	In stock	Enquiry
HD-TE-06LL-MT-10-CN	DIN 2353 fitting TE 6LL M10x1, Zn-Ni	-	100	In stock	Enquiry
HD-TE-06S-MT-12-CN	DIN 2353 TE 6S M12x1.5 connector, Zn-Ni	-	630	In stock	Enquiry
HD-TE-08L-MT-12-CN	DIN 2353 TE 8L M12x1.5 connector, Zn-Ni	-	250	In stock	Enquiry
HD-TE-08LL-MT-10-CN	DIN 2353 fitting TE 8LL M10x1, Zn-Ni	-	100	In stock	Enquiry
HD-TE-08S-MT-14-CN	DIN 2353 TE 8S M14x1.5 connector, Zn-Ni	-	630	In stock	Enquiry
HD-TE-10L-MT-14-CN	DIN 2353 fitting TE 10L M14x1.5, Zn-Ni	-	250	In stock	Enquiry
HD-TE-10S-MT-16-CN	DIN 2353 fitting TE 10S M16x1.5, Zn-Ni	-	630	In stock	Enquiry
HD-TE-12L-MT-16-CN	DIN 2353 fitting TE 12L M16x1.5, Zn-Ni	-	250	In stock	Enquiry
HD-TE-12S-MT-18-CN	DIN 2353 TE 12S M18x1.5 connector, Zn-Ni	-	630	In stock	Enquiry
HD-TE-14S-MT-20-CN	DIN 2353 fitting TE 14S M20x1.5, Zn-Ni	-	630	In stock	Enquiry
HD-TE-15L-MT-18-CN	DIN 2353 fitting TE 15L M18x1.5, Zn-Ni	-	250	In stock	Enquiry
HD-TE-16S-MT-22-CN	DIN 2353 fitting TE 16S M22x1.5, Zn-Ni	-	400	In stock	Enquiry
HD-TE-18L-MT-22-CN	DIN 2353 fitting TE 18L M22x1.5, Zn-Ni	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 threaded tee coupling, type TE-MT: 24° DIN 2353 socket with external metric thread and external metric tapered thread (sealing on the thread – with Teflon tape or anaerobic sealant). Available as: LL (very light series), L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which is characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel. Safety factor: 2.5:1.
