Is the Short round nipple with 2 x GZ NPT stainless steel, 122HCN compatible with AISI 316 piping and standard NPT fittings?

Yes. The Short round nipple with 2 x GZ NPT stainless steel, 122HCN is made of AISI 316 stainless steel and features two external NPT (GZ NPT) threads, so it is compatible with piping made from AISI 316 and with standard NPT fittings. Ensure matching thread sizes (NPT taper), proper thread engagement and sealing method (e.g., thread sealant or PTFE tape) are used, and verify pressure/temperature ratings of all components for your application.

Can the Short round nipple with 2 x GZ NPT stainless steel, 122HCN withstand corrosive environments in chemical and pharmaceutical plants?

Short round nipple with 2 x GZ NPT stainless steel, 122HCN is made from AISI 316 stainless steel, which offers good general corrosion resistance and is widely used in chemical and pharmaceutical plants. It is suitable for many corrosive environments, especially those involving acids, alkalis, and organic chemicals at moderate temperatures. However, AISI 316 is not immune to all corrosive agents-chloride-rich media (e.g., seawater, HCl, chlorinated compounds) can cause pitting and crevice corrosion, and certain aggressive chemicals or high-temperature conditions may require higher-alloy materials (e.g., duplex or 6Mo/316L or Hastelloy). For pharmaceutical uses where passivation, cleanability, and compatibility with CIP/SIP are critical, AISI 316 often meets requirements but verify surface finish and certification. Recommendation: assess the specific chemicals, concentrations, temperatures, and pressure conditions and consult corrosion data or a materials engineer to confirm suitability.

Does the Short round nipple with 2 x GZ NPT stainless steel, 122HCN meet pressure ratings for industrial piping systems?

Short round nipple with 2 x GZ NPT stainless steel, 122HCN: based on the provided description alone, you cannot definitively conclude that it meets specific pressure ratings for industrial piping systems. The description gives useful factsâtype 122H, two external NPT threads, intended for connecting pipe elements, application areas (chemical, petrochemical, pharmaceutical, energy, nuclear, process engineering), and material AISI 316 stainless steelâbut it lacks critical information required to verify pressure ratings, such as: - Nominal size (OD/ID and thread size) and wall thickness - Design pressure or applicable pressure class (e.g., ANSI/ASME class, PN rating) - Manufacturing standard and certifications (e.g., ASME B31.x, ASME B16.11, EN, PED) - Thread tolerances and whether threads are sealed for pressure service - Heat treatment, material certification (e.g., EN 10204 3.1/3.2), and traceability - Hydrostatic or pneumatic test data and qualified test pressure - Temperature limits and corrosion allowance for the specific service - Welded/joined details if applicable and any NDT results AISI 316 stainless steel has good corrosion resistance and mechanical properties suitable for many industrial applications, but allowable working pressure depends on component geometry, temperature, manufacturing standard, and testing. To confirm compliance with required pressure ratings, obtain from the manufacturer: detailed drawings, mechanical properties, applicable standards/certifications, pressure/temperature ratings, and test certificates. Only with those documents can an engineer determine if Short round nipple with 2 x GZ NPT stainless steel, 122HCN meets the specific pressure requirements for a given industrial piping system.

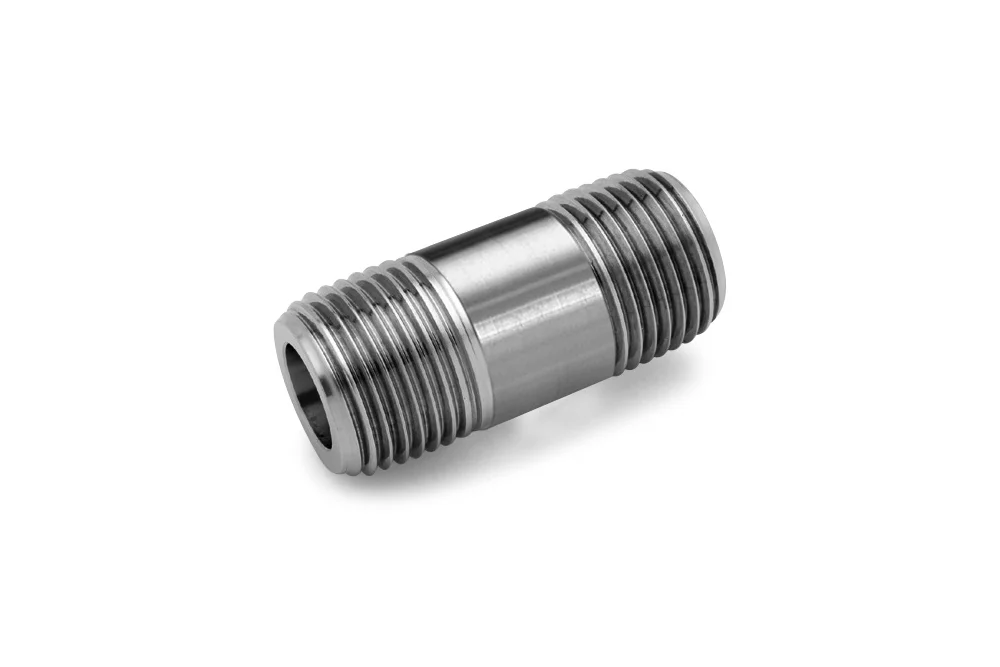

Short round nipple with 2 x GZ NPT stainless steel, 122HCN

All products, Precision threaded fasteners/

Additional information

Material	SS – stainless steel
Standard length [m]	10

Short round nipple with 2 x external NPT threads, type 122H, intended for connecting two pipe elements. Mainly used in the chemical, petrochemical, pharmaceutical, energy, nuclear power, and process engineering industries. Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-P122HCN-02-SS	Short round nipple GZ 1/8" NPT, SS	-	690	In stock	Enquiry
HM-P122HCN-04-SS	Short round nipple GZ 1/4" NPT, SS	-	552	In stock	Enquiry
HM-P122HCN-06-SS	Short round nipple GZ 3/8" NPT, SS	-	538	In stock	Enquiry
HM-P122HCN-08-SS	Short round nipple GZ 1/2" NPT, SS	-	531	In stock	Enquiry
HM-P122HCN-12-SS	Short round nipple GZ 3/4" NPT, SS	-	503	In stock	Enquiry
HM-P122HCN-16-SS	Short round nipple GZ 1" NPT, SS	-	366	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Short round nipple with 2 x external NPT threads, type 122H, intended for connecting two pipe elements. Mainly used in the chemical, petrochemical, pharmaceutical, energy, nuclear power, and process engineering industries. Material: AISI 316 steel.
