Is the SMS end with GZ tail under RS clamp, stainless steel, SZR type rated for use in food processing at 15 bar and compatible with gaskets for various temperatures?

Yes. The SMS end with GZ tail under RS clamp, stainless steel, SZR type is rated for use in food processing: it has Ra 0.8 Âµm surface finish, stainless steel construction and a maximum allowable working pressure of 15 bar (for the coupling itself). Compatibility with gasket temperatures depends on the gasket material chosen; the fittingâs operating temperature is therefore limited by the gasket material used rather than the stainless steel body.

Does the SMS end with GZ tail under RS clamp, stainless steel, SZR type meet 15 bar rating and food-grade gasket compatibility?

Yes. The SMS end with GZ tail under RS clamp, stainless steel, SZR type meets a 15 bar rating and is compatible with food-grade gaskets. The description specifies an SMS end with external thread Rd, tail for RS, Ra clamp (in the hole) 0.8 Âµm, for use in the food industry, maximum allowable working pressure (for the coupling itself) 15 bar, operating temperature dependent on gasket material, and stainless steel construction-therefore it supports 15 bar and food-grade gasket compatibility.

Is the SMS end with GZ tail under RS clamp, stainless steel, SZR type suitable for food use at 15 bar?

Yes. the SMS end with GZ tail under RS clamp, stainless steel, SZR type is suitable for food use at 15 bar, with the following conditions met: - Surface finish: Ra 0.8 Âµm (in the bore) meets common hygienic requirements for food contact, minimizing bacterial adhesion. - Material: stainless steel (assuming an appropriate food-grade alloy such as AISI 304 or AISI 316) is commonly accepted for food applications. Confirm the exact grade if specific chemical resistance or regulatory compliance is required. - Pressure rating: the maximum allowable working pressure for the coupling itself is 15 bar, so it is suitable at that pressure provided the rest of the system (tubing, gaskets, clamps) is rated for â¥15 bar. - Gasket/materials: operating temperature and chemical compatibility depend on gasket materialâselect a food-grade gasket (e.g., EPDM, FKM, PTFE) rated for your process temperature and media. - Installation and inspection: ensure correct assembly under the RS clamp and regular inspection/cleaning regimes to maintain hygienic integrity. If you need formal compliance confirmation, provide the exact stainless steel grade and gasket material so certifications (e.g., EC 1935/2004, FDA) can be verified.

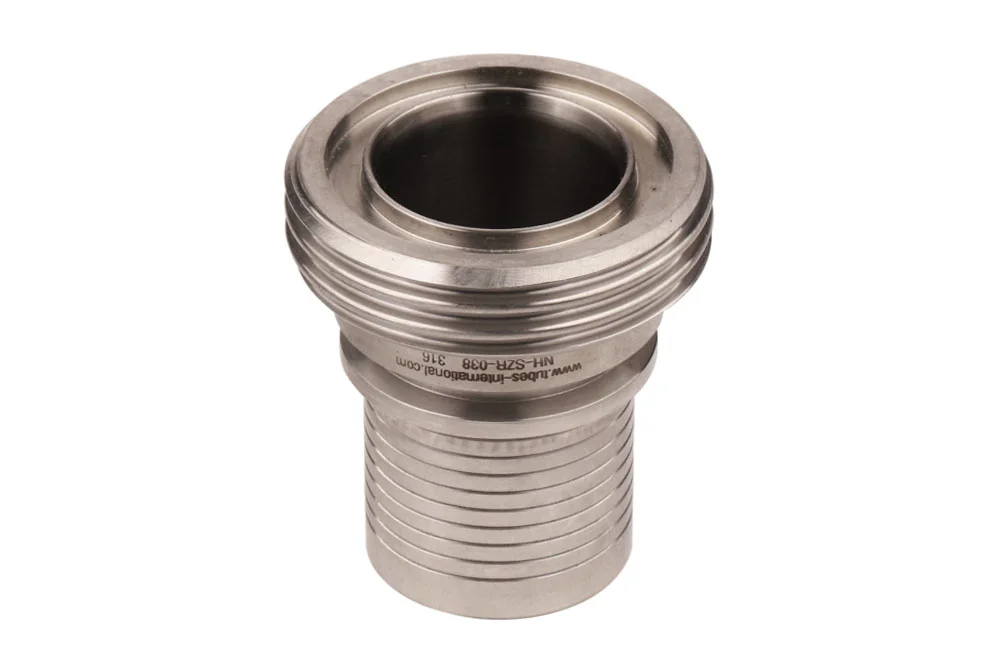

SMS end with GZ tail under RS clamp, stainless steel, SZR type

All products, Hygienic stainless steel couplings/

Additional information

Material	SS – stainless steel

SMS end with external thread Rd, with tail for RS, Ra clamp (in the hole) 0.8 µm, for use in the food industry. Maximum allowable working pressure (for the coupling itself): 15 bar. Operating temperature: depending on the type of material used for the gasket. Material: stainless steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-SZR-025	End. SMS under RS DN25, Rd 40x1/6", hose 25 mm	25	15	In stock	Enquiry
NH-SZR-032	End. SMS under RS DN32, Rd 48x1/6", hose 32 mm	32	15	In stock	Enquiry
NH-SZR-038	End. SMS under RS DN38, Rd 60x1/6", hose 38 mm	38	15	In stock	Enquiry
NH-SZR-050	End. SMS under RS DN50, Rd 70x1/6", hose 50 mm	50	15	In stock	Enquiry
NH-SZR-051	End. SMS under RS DN50, Rd 70x1/6", hose 51 mm	50	15	In stock	Enquiry
NH-SZR-063	End. SMS under RS DN63, Rd 85x1/6", hose 63 mm	65	15	In stock	Enquiry
NH-SZR-075	End. SMS under RS DN75, Rd 98x1/6", hose 75 mm	75	15	In stock	Enquiry
NH-SZR-076	End. SMS under RS DN75, Rd 98x1/6", hose 76 mm	75	15	In stock	Enquiry
NH-SZR-100	End. SMS under RS DN100, Rd 132x1/6", hose 100 mm	100	15	In stock	Enquiry
NH-SZR-102	End. SMS under RS DN100, Rd 132x1/6", hose 102 mm	100	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

SMS end with external thread Rd, with tail for RS, Ra clamp (in the hole) 0.8 µm, for use in the food industry. Maximum allowable working pressure (for the coupling itself): 15 bar. Operating temperature: depending on the type of material used for the gasket. Material: stainless steel.
