Is the Straight connector for PP, PVDF plastic hose, series 1B type EM suitable for repeated disassembly and reassembly without losing sealing performance?

Yes . the Straight connector for PP, PVDF plastic hose, series 1B type EM is suitable for repeated disassembly and reassembly without losing sealing performance, provided you follow proper use parameters. The connector secures the hose by pushing it onto the integrated connecting sleeve and locking with a knurled nut that tightens the flexible hose onto the sleeve; this mechanical retention allows multiple installations. Materials (PP, PVDF) and design are intended for flexible hoses (PVC, silicone) with specified wall thickness, and the fitting is rated for a working pressure of 10 bar (with short spikes up to 30 bar at +20Â°C). To maintain seal integrity over repeated cycles, ensure hoses are within the specified material/thickness range, threads and sealing surfaces are clean and undamaged, and assembly torque is consistent. Avoid excessive pressure, temperature, or chemical exposure beyond specified limits to prevent wear that could compromise sealing.

Can the Straight connector for PP, PVDF plastic hose, series 1B type EM handle food-grade cleaning agents and sanitization procedures without degradation?

Straight connector for PP, PVDF plastic hose, series 1B type EM can generally withstand routine foodâgrade cleaning and sanitization if compatible agents and conditions are used. Made of polypropylene or PVDF, the connector resists many common detergents and sanitizers; PVDF offers superior chemical and temperature resistance versus polypropylene. Working pressure is rated 10 bar (short spikes to 30 bar at +20Â°C), so pressure during cleaning must stay within these limits. Ensure cleaning temperatures, exposure times and concentrations do not exceed the chemical or thermal limits of the chosen material (prefer PVDF for harsher chemistries). Verify compatibility with specific cleaning agents (e.g., strong oxidizers, highâtemp caustics) and follow manufacturer guidance for repeated sanitary cycles to avoid degradation.

Can the Straight connector for PP, PVDF plastic hose, series 1B type EM withstand continuous operation at elevated temperatures near its max rating?

No, continuous operation near the maximum rated temperature is not recommended. Explanation: The Straight connector for PP, PVDF plastic hose, series 1B type EM is specified with a working pressure of 10 bar and is noted to withstand short pressure spikes up to 30 bar at +20Â°C. Those spike ratings are explicitly short-duration and given at room temperature; the description does not claim sustained performance at elevated temperatures. Polymers like polypropylene and PVDF lose stiffness and strength as temperature approaches their upper service limits, which reduces pressure capability and long-term seal reliability. Repeated or continuous exposure to high temperature near the material limits promotes creep, relaxation of the knurled-nut hose clamp interface, accelerated chemical attack (depending on media), and higher risk of slow leakage or sudden failure under pressure. If you must operate at elevated temperature continuously: - Verify the exact maximum continuous temperature rating for the specific PP or PVDF grade used (manufacturer data). - Derate working pressure according to the supplierâs temperatureâpressure curves (if available). - Prefer PVDF over PP for higher-temperature resistance if compatible with the fluid. - Consider additional mechanical hose clamps or alternative metal fittings designed for high-temperature continuous service. - Perform temperature/pressure validation tests and more frequent inspections. Conclusion: Without explicit temperature-rated continuous-pressure data, do not assume the Straight connector for PP, PVDF plastic hose, series 1B type EM can safely run continuously near its maximum temperature rating.

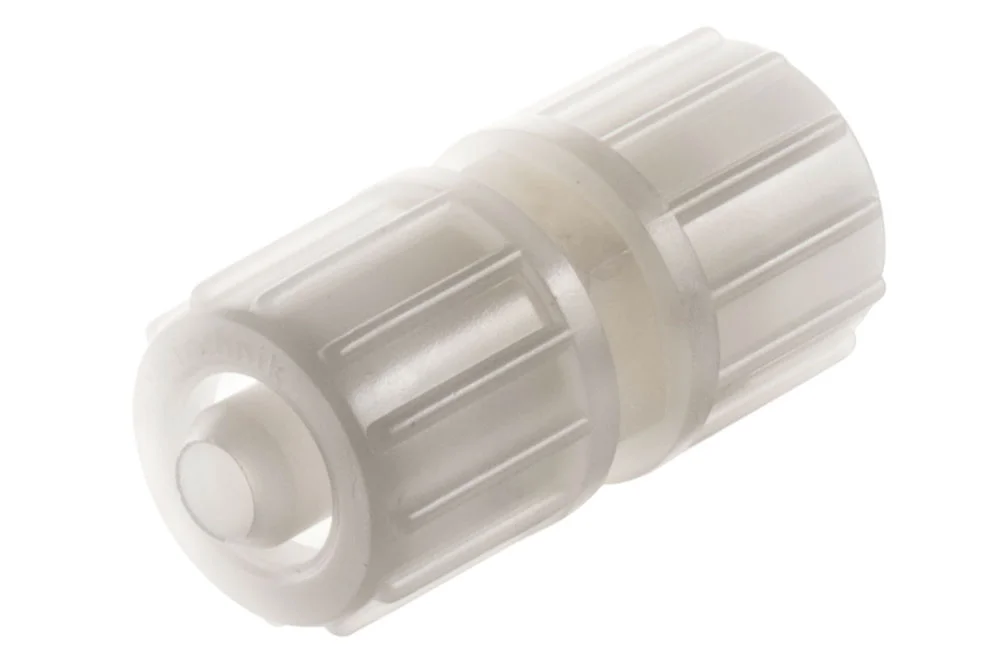

Straight connector for a hose of PP, PVDF plastic, 1B series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Straight connector for a hose 1B series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. Assembly is carried out by pushing the hose onto the integrated connecting sleeve, and locking is achieved by means of a knurled nut that clamps the flexible hose onto the connecting sleeve. Repeated assembly is possible. It is intended for flexible plastic hoses (PVC, silicone) reinforced with a braid, of a specified wall thickness. The fitting withstands short pressure surges up to 30 bar at a temperature of +20°C. Other sizes and diameters of ends and connectors are available. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1B100T40PP	Straight connector (1B series), hose 4x10 mm, polypropylene	4	10	In stock	Enquiry
EM-1B100T40PV	Straight connector (1B series), hose 4x10 mm, PVDF	4	10	In stock	Enquiry
EM-1B100T42PP	Straight connector (1B series), hose 5x11 mm, polypropylene	5	10	In stock	Enquiry
EM-1B100T42PV	Straight connector (1B series), hose 5x11 mm, PVDF	5	10	In stock	Enquiry
EM-1B100T44PP	Straight connector (1B series), hose 6x12 mm, polypropylene	6	10	In stock	Enquiry
EM-1B100T44PV	Straight connector (1B series), hose 6x12 mm, PVDF	6	10	In stock	Enquiry
EM-1B100T45PP	Straight connector (1B series), hose 8x14 mm, polypropylene	8	10	In stock	Enquiry
EM-1B100T45PV	Straight connector (1B series), hose 8x14 mm, PVDF	8	10	In stock	Enquiry
EM-1B100T47PP	Straight connector (1B series), hose 9x15 mm, polypropylene	8	10	In stock	Enquiry
EM-1B100T47PV	Straight connector (1B series), hose 9x15 mm, PVDF	8	10	In stock	Enquiry
EM-1B100T49PP	Straight connector (1B series), hose 10x16 mm, polypropylene	10	10	In stock	Enquiry
EM-1B100T49PV	Straight connector (1B series), hose 10x16 mm, PVDF	10	10	In stock	Enquiry
EM-1B100T52PP	Straight connector (1B series), hose 12x18 mm, polypropylene	12	10	In stock	Enquiry
EM-1B100T52PV	Straight connector (1B series), hose 12x18 mm, PVDF	12	10	In stock	Enquiry
EM-1B100T57PP	Straight connector (1B series), hose 13x20 mm, polypropylene	12	10	In stock	Enquiry
EM-1B100T57PV	Straight connector (1B series), hose 13x20 mm, PVDF	12	10	In stock	Enquiry
EM-1B100T59PP	Straight connector (1B series), hose 16x22 mm, polypropylene	16	10	In stock	Enquiry
EM-1B100T62PP	Straight connector (1B series), hose 19x27 mm, polypropylene	20	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight connector for a hose 1B series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. Assembly is carried out by pushing the hose onto the integrated connecting sleeve, and locking is achieved by means of a knurled nut that clamps the flexible hose onto the connecting sleeve. Repeated assembly is possible. It is intended for flexible plastic hoses (PVC, silicone) reinforced with a braid, of a specified wall thickness. The fitting withstands short pressure surges up to 30 bar at a temperature of +20°C. Other sizes and diameters of ends and connectors are available. Material: polypropylene, PVDF. Working pressure: 10 bar.
