Can the Straight hose end with GZ BSP plastic PP, PVDF, series 1A type EM be used with silicone and TYGONÂ® hoses at 10 bar working pressure?

Yes. The Straight hose end with GZ BSP plastic PP, PVDF, series 1A type EM Format is specified for flexible, smoothâwalled, unreinforced hoses including silicone and TYGONÂ® and has a rated working pressure of 10 bar. Its integrated sleeve and internal clamping ring (reusable) are designed to secure those hose types, so it can be used with silicone and TYGONÂ® hoses at 10 bar working pressure, provided the hose inner diameter matches the fitting size and the hose itself is rated for 10 bar or higher.

Is the Straight hose end with GZ BSP plastic PP, PVDF, series 1A type EM compatible with PTFE and FKM hoses?

Yes. The Straight hose end with GZ BSP plastic PP, PVDF, series 1A type EM is compatible with PTFE and FKM hoses. The product description explicitly lists PTFE and FKM among the flexible, smoothâwalled, unreinforced hose materials it is designed for; the integrated sleeve and reusable clamping ring secure these hose types for working pressures up to 10 bar.

Can the Straight hose end with GZ BSP plastic PP, PVDF, series 1A type EM be reused multiple times with the same hose?

Yes. the Straight hose end with GZ BSP plastic PP, PVDF, series 1A type EM can be reused multiple times with the same hose. The fitting uses an internal clamping ring located inside the knurled nut; thanks to its flexibility, the clamping ring can be reused multiple times in the same connection. It is intended for flexible, smooth-walled, unreinforced hoses (PVC, PA, PUR, PTFE, FKM, silicone, TYGONÂ®). Ensure the hose and fitting are undamaged, clean, and correctly installed each time; discard and replace the clamping ring or fitting if you detect deformation, wear, cracks, or loss of sealing performance. Working pressure rating: 10 bar.

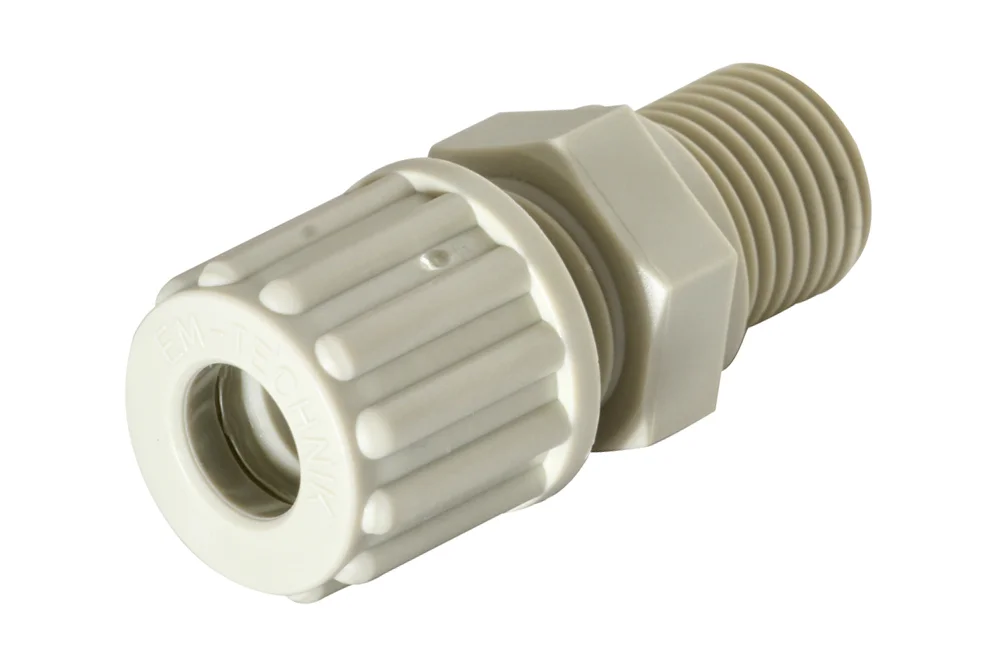

Straight hose fitting with a BSP male thread of PP, PVDF plastic, 1A series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Straight hose fitting with a BSP male thread type EM, is widely used in laboratories, medicine (e.g. dialysis devices), and the pharmaceutical, chemical and food industries. It has an integrated sleeve, which facilitates assembly, and the hose is locked by means of a clamping ring located inside the knurled nut. Thanks to its flexibility, the clamping ring can be used several times in the same joint. It is intended for flexible, smooth-walled, unreinforced hoses made of PVC, PA, PUR, PTFE, FKM, silicone and TYGON® hoses. Other sizes and diameters of ends and connectors are available. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1A100MG4014PP	Straight fitting (1A series) with 1/4" BSP male, hose 4x6 mm, polypropylene	4	10	In stock	Enquiry
EM-1A100MG4014PV	Straight fitting (1A series) with 1/4" BSP male, hose 4x6 mm, PVDF	4	10	In stock	Enquiry
EM-1A100MG4018PP	Straight fitting (1A series) with 1/8" BSP male, hose 4x6 mm, polypropylene	4	10	In stock	Enquiry
EM-1A100MG4018PV	Straight fitting (1A series) with 1/8" BSP male, hose 4x6 mm, PVDF	4	10	In stock	Enquiry
EM-1A100MG4538PV	Straight fitting (1A series) with 3/8" BSP male, hose 8x10 mm, PVDF	8	10	In stock	Enquiry
EM-1A100MG4738PP	Straight fitting (1A series) with 3/8" BSP male, hose 9x12 mm, polypropylene	8	10	In stock	Enquiry
EM-1A100MG4838PP	Straight fitting (1A series) with 3/8" BSP male, hose 10x12 mm, PP	10	10	In stock	Enquiry
EM-1A100MG4838PV	Straight fitting (1A series) with 3/8" BSP male, hose 10x12 mm, PVDF	10	10	In stock	Enquiry
EM-1A100MG5212PP	Straight fitting (1A series) with 1/2" BSP male, hose 12x16 mm, polypropylene	12	10	In stock	Enquiry
EM-1A100MG5212PV	Straight fitting (1A series) with 1/2" BSP male, hose 12x16 mm, PVDF	12	10	In stock	Enquiry
EM-1A100MG5634PP	Straight fitting (1A series) with 3/4" BSP male, hose 16x20 mm, polypropylene	16	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight hose fitting with a BSP male thread type EM, is widely used in laboratories, medicine (e.g. dialysis devices), and the pharmaceutical, chemical and food industries. It has an integrated sleeve, which facilitates assembly, and the hose is locked by means of a clamping ring located inside the knurled nut. Thanks to its flexibility, the clamping ring can be used several times in the same joint. It is intended for flexible, smooth-walled, unreinforced hoses made of PVC, PA, PUR, PTFE, FKM, silicone and TYGON® hoses. Other sizes and diameters of ends and connectors are available. Material: polypropylene, PVDF. Working pressure: 10 bar.
