Is the Hose end straight with GZ BSP, plastic PP, PVDF, series 1+ type EM compatible with silicone, PTFE, and TYGONÂ® hoses under 16 bar working pressure?

Yes. The Hose end straight with GZ BSP, plastic PP, PVDF, series 1+ type EM is compatible with silicone, PTFE, and TYGONÂ® hoses when used with flexible smooth-walled unreinforced hoses of those materials and operated up to the specified working pressure of 16 bar.

Can the Hose end straight with GZ BSP, plastic PP, PVDF, series 1+ type EM be installed toolâfree in laboratory and food industry applications?

Yes. Hose end straight with GZ BSP, plastic PP, PVDF, series 1+ type EM can be installed toolâfree in laboratory and food industry applications. Its design permits multiple installations without tools, and it is specifically intended for flexible smoothâwalled unreinforced hoses (PVC, PA, PUR, PTFE, PFA, FEP, FKM, silicone, TYGONÂ®). Materials (polypropylene, PVDF) and a working pressure of 16 bar make it suitable for those environments.

Does the Hose end straight with GZ BSP, plastic PP, PVDF, series 1+ type EM resist chemical exposure in pharmaceutical and chemical use?

Hose end straight with GZ BSP, plastic PP, PVDF, series 1+ type EM is designed for use in laboratories, medicine, pharmaceutical, chemical and food industries and is made from polypropylene (PP) and PVDF. materials chosen for chemical resistance. It is intended for flexible smoothâwalled unreinforced hoses of various polymers including PTFE, PFA, FEP, FKM, silicone and TYGONÂ®, and is rated to 16 bar. Therefore, Hose end straight with GZ BSP, plastic PP, PVDF, series 1+ type EM is suitable for many chemical and pharmaceutical applications; PVDF offers excellent resistance to a wide range of acids, solvents and aggressive media, while PP is resistant to many chemicals but less so to strong oxidizers and some solvents. Final suitability depends on the specific chemicals, concentrations, temperatures and cleaning agents used in your process. For assurance, verify compatibility against chemical resistance data for PP and PVDF (and the hose material) under your operating conditions or consult the manufacturer.

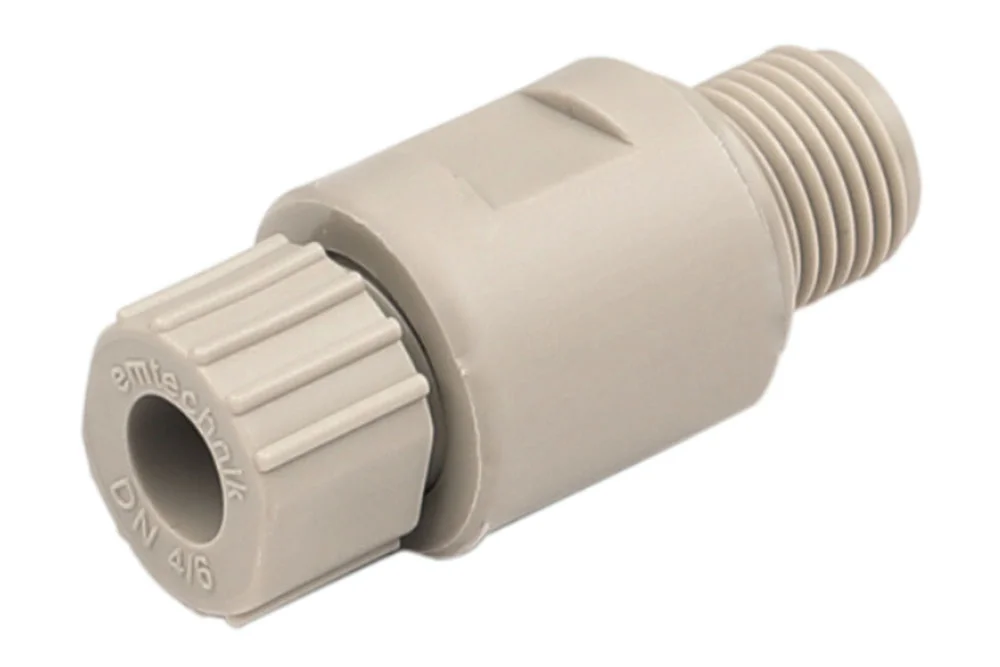

Straight hose fitting with a BSP male thread, of PP, PVDF plastic, 1+ series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Straight hose fitting with a BSP male thread, type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. The design allows repeated assembly without the need for tools. It is intended for flexible, smooth-walled, unreinforced hoses made of PVC, PA, PUR, PTFE, PFA, FEP, FKM, silicone and TYGON® hoses. Material: polypropylene, PVDF. Working pressure: 16 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1P100MG4018PP	Straight fitting (1 series+) with 1/8" BSP male, hose 4x6 mm, polypropylene	4	16	In stock	Enquiry
EM-1P100MG4018PV	Straight fitting (1 series+) with 1/8" BSP male, hose 4x6 mm, PVDF	4	16	In stock	Enquiry
EM-1P100MG4314PP	Straight fitting (1 series+) with 1/4" BSP male, hose 6x8 mm, polypropylene	6	16	In stock	Enquiry
EM-1P100MG4314PV	Straight fitting (1 series+) with 1/4" BSP male, hose 6x8 mm, PVDF	6	16	In stock	Enquiry
EM-1P100MG4512PP	Straight fitting (1 series+) with 1/2" BSP male, hose 8x10 mm, polypropylene	8	16	In stock	Enquiry
EM-1P100MG4838PP	Straight fitting (1 series+) with 3/8" BSP male, hose 10x12 mm, polypropylene	10	16	In stock	Enquiry
EM-1P100MG4838PV	Straight fitting (1 series+) with 3/8" BSP male, hose 10x12 mm, PVDF	10	16	In stock	Enquiry
EM-1P100MG5112PP	Straight fitting (1 series+) with 1/2" BSP male, hose 12x14 mm, polypropylene	12	16	In stock	Enquiry
EM-1P100MG5112PV	Straight fitting (1 series+) with 1/2" BSP male, hose 12x14 mm, PVDF	12	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight hose fitting with a BSP male thread, type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. The design allows repeated assembly without the need for tools. It is intended for flexible, smooth-walled, unreinforced hoses made of PVC, PA, PUR, PTFE, PFA, FEP, FKM, silicone and TYGON® hoses. Material: polypropylene, PVDF. Working pressure: 16 bar.
