Can the Straight nozzle with lever, aluminum, series 270 be safely used at the maximum pressure of 8 bar or should it be limited to the specified operating pressure range of 1â6 bar?

Straight nozzle with lever, aluminum, series 270 should be used within its specified operating pressure range of 1â6 bar. Although the product lists a maximum pressure of 8 bar (the structural limit), continuous or regular use at that maximum could increase wear, risk of component failure, or unsafe air force beyond intended ergonomic and functional design. To ensure safe, reliable operation and compliance with the manufacturerâs intended use, limit working pressure to 1â6 bar; occasional brief exposure to higher pressure up to 8 bar is only acceptable if explicitly permitted by the manufacturerâs safety guidance and local regulations.

Is the Straight nozzle with lever, aluminum, series 270 suitable for continuous use at its 8 bar maximum pressure?

Straight nozzle with lever, aluminum, series 270 is not suitable for continuous use at its 8 bar maximum pressure. Although its maximum pressure rating is 8 bar, the specified operating pressure range is 1â6 bar and the operating temperature range is â10Â°C to +50Â°C. Continuous operation should be limited to the recommended operating pressure (up to 6 bar) to ensure safe, reliable performance and to avoid premature wear or failure. If you require sustained operation at higher pressures, consult the manufacturer for guidance or a model rated for continuous use at 8 bar.

Does the Straight nozzle with lever, aluminum, series 270 require specific maintenance when used frequently at 6 bar?

Yes. Straight nozzle with lever, aluminum, series 270 used frequently at 6 bar should receive simple, regular maintenance to ensure safety and longevity: - Daily/shift checks: inspect nozzle body, lever and connection for visible damage, cracks or deformation; check the 2 mm nozzle orifice for clogging by debris or condensate and clear gently if needed. - Air supply care: use clean, dry, filtered compressed air and a properly sized drainable filter/regulator to limit moisture and particles that can clog or corrode the nozzle. - Lubrication: occasional light lubrication of the lever pivot with a small amount of suitable oil will keep smooth operation and reduce wearâavoid excess oil entering the air stream. - Connection inspection: check hose fitting (6 mm/9 mm) or EUROSTANDARD 7.2 plug for secure fit, wear or leaks; replace seals or fittings if worn. - Pressure monitoring: although maximum pressure is 8 bar and operating range includes 6 bar, avoid pressure spikes above 8 bar and keep supply within recommended 1â6 bar for continuous use. - Cleaning: periodically clean the exterior and internal passage with compressed air (at safe pressure) and, if necessary, a non-corrosive solvent compatible with aluminum. - Storage and environment: store in dry conditions within -10Â°C to +50Â°C and protect from mechanical impacts. - Replacement schedule: replace the nozzle or worn parts if orifice distortion, persistent leakage, or impaired lever action occurs. These steps help maintain performance, operator comfort and safety when operating frequently at 6 bar.

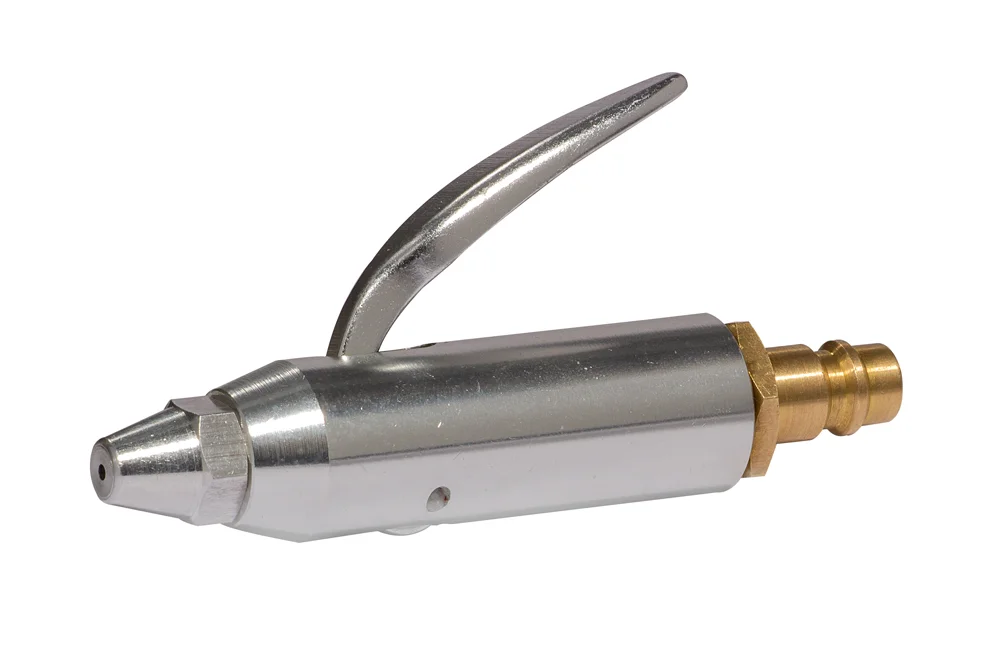

Straight nozzle with lever, aluminum, series 270

Air guns, All products/

Additional information

Handy straight nozzle for compressed air with a lever, designed for removing all types of contaminants from surfaces: liquids, fine chips, shavings, etc. The lever design reduces operator fatigue and discomfort, even during prolonged use. Equipped with a standard nozzle with a hole diameter of 2 mm. Depending on the connection, we distinguish between a nozzle ending with a hose fitting of 6 mm and 9 mm diameter or a EUROSTANDARD 7.2 plug. Material: aluminum. Nozzle hole diameter: 2 mm. Maximum pressure: 8 bar. Operating pressure: 1 ÷ 6 bar. Operating temperature: from -10°C to +50°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-27011	Vertical pistol with lever, standard d., hole diameter 1.5 mm, hose end 6 mm, aluminum	-	8	In stock	Enquiry
EW-27017	Vertical pistol with lever, standard d., hole diameter 1.5 mm, hose end 9 mm, aluminum	-	8	In stock	Enquiry
EW-27041	Straight nozzle with lever, with quick-connect plug DN 7.2	-	8	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Handy straight nozzle for compressed air with a lever, designed for removing all types of contaminants from surfaces: liquids, fine chips, shavings, etc. The lever design reduces operator fatigue and discomfort, even during prolonged use. Equipped with a standard nozzle with a hole diameter of 2 mm. Depending on the connection, we distinguish between a nozzle ending with a hose fitting of 6 mm and 9 mm diameter or a EUROSTANDARD 7.2 plug. Material: aluminum. Nozzle hole diameter: 2 mm. Maximum pressure: 8 bar. Operating pressure: 1 ÷ 6 bar. Operating temperature: from -10°C to +50°C.
