Is the Spigot S-type, carbon steel end fitting compatible with low-pressure rubber, non-reinforced, and textile-reinforced plastic hoses?

Yes. The Spigot, carbon steel, type S Format is compatible with low-pressure rubber, non-reinforced, and textile-reinforced plastic hoses (with an external steel braid). It features a 60Â° sealing cone, spherical, similar to DIN 7608, and is intended specifically for such hose types. It is commonly used in flexible hoses for sanitary fittings, fuel systems, air systems, etc., and uses the UM nut type (EC-105â¦). Material: carbon steel, galvanized.

Can Spigot carbon steel S-type fittings with a 60Â° cone and UM nut be used with hoses that have an external steel braid?

Yes. Spigot carbon steel S-type Format fittings with a 60Â° cone and UM nut are suitable for hoses with an external steel braid. These S-type end fittings (spherical, similar to DIN 7608) are intended for low-pressure rubber and non-reinforced or textile-reinforced plastic hoses, including those with an external steel braid, and are commonly used in sanitary, fuel and air flexible hose assemblies. Ensure hose inner/outer dimensions, braid clearance and assembly procedures match the fitting specifications and that galvanised carbon steel compatibility meets your media and corrosion requirements.

Can Spigot carbon steel S-type fittings with a 60Â° sealing cone and UM nut be used in sanitary and fuel flexible hose systems?

Yes. Spigot carbon steel type S Format fittings with a 60Â° sealing cone and UM nut can be used in sanitary and fuel flexible hose systems, with qualifications. Why: the S-type (60Â° sealing cone, spherical, similar to DIN 7608) is specifically intended for low-pressure rubber and nonâreinforced or textileâreinforced plastic hoses with external steel braid, and is commonly used in flexible hoses for sanitary fittings, fuel systems, air systems, etc. The construction (carbon steel, galvanized) and UM nut (ECâ105â¦) match common hose coupling standards for such applications. Qualifications and cautions: - Operating conditions: suitable for lowâpressure applications. Do not use for highâpressure systems unless the hose and fitting assembly are rated and tested together for that pressure. - Media compatibility: carbon steel (galvanized) is acceptable for many sanitary and fuel applications, but confirm chemical compatibility (e.g., with aggressive chemicals, certain fuels or additives) and any corrosion concerns. For potable water or corrosive environments, stainless steel may be preferable. - Hygiene and approvals: for sanitary (potable/food) systems, verify required hygienic standards/certifications (e.g., NSF, FDA, foodâgrade elastomers) for the entire hose assembly, not just the fitting. - Assembly and testing: ensure correct hose/fitting match, proper crimping or clamping procedure, and pressure/leak testing per manufacturer guidelines. - Regulations: comply with industry and local regulations for fuel systems (vapor permeation, fire safety, vehicle standards) and sanitary installations. Conclusion: Suitable for typical lowâpressure sanitary and fuel flexible hose uses when matched, assembled, and certified for the specific application and environment.

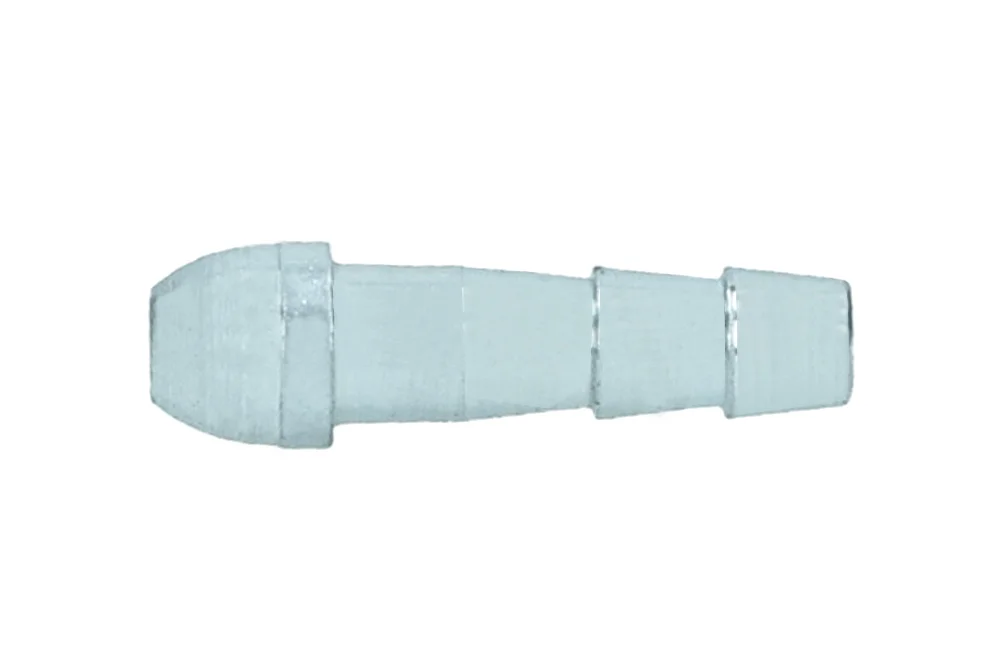

Spigot, carbon steel, type S

All products, Low-pressure fittings and adapters/

Additional information

Material	CS – steel (cast iron)

Fitting type S with a 60° sealing cone, spherical, similar to DIN 7608, intended for low-pressure rubber and plastic hoses, unreinforced and with textile reinforcement, with an external steel braid. Commonly used in flexible lines for sanitary fittings, fuel and air installations, etc. Use a UM type nut (EC-105…). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EC-105050	Spigot S 5 (hose 4.5 mm)	5	30	In stock	Enquiry
EC-105060	Spigot S 6 (hose 5.5 mm)	6	30	In stock	Enquiry
EC-105068	Spigot S 6/8 (hose 5.5 mm)	6	30	In stock	Enquiry
EC-105069	Spigot S 6/10 (hose 5.5 mm)	6	30	In stock	Enquiry
EC-105080	Spigot S 8 (hose 7.5 mm)	8	30	In stock	Enquiry
EC-105081	Spigot S 8/10 (hose 7.5 mm)	8	30	In stock	Enquiry
EC-105100	Spigot S 10 (hose 9 mm)	10	30	In stock	Enquiry
EC-105102	Spigot S 10/12 (hose 9 mm)	10	30	In stock	Enquiry
EC-105112	Spigot S 12 (hose 11.5 mm)	12	30	In stock	Enquiry
EC-105113	Spigot S 12 1/2" (hose 11.5 mm)	12	30	In stock	Enquiry
EC-105114	Spigot S 12/15 (hose 11.5 mm)	12	30	In stock	Enquiry
EC-105150	Spigot S 15/22 (hose 14.5 mm)	16	30	In stock	Enquiry
EC-105151	Spigot S 15 1/2" (hose 14.5 mm)	16	30	In stock	Enquiry
EC-105156	Spigot S 15/26 (hose 14.5 mm)	16	30	In stock	Enquiry
EC-105186	Spigot S 18/26 (hose 17 mm)	18	30	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting type S with a 60° sealing cone, spherical, similar to DIN 7608, intended for low-pressure rubber and plastic hoses, unreinforced and with textile reinforcement, with an external steel braid. Commonly used in flexible lines for sanitary fittings, fuel and air installations, etc. Use a UM type nut (EC-105…). Material: carbon steel, galvanized.
