Is the Spigot carbon steel type SF compatible with low-pressure rubber and textile-reinforced plastic hoses with external steel braid?

Yes. The Spigot, carbon steel, type SF end fitting (flat sealing) is designed for low-pressure rubber, non-reinforced, and textile-reinforced plastic hoses with an external steel braid. It is commonly used in flexible hoses for sanitary fittings, fuel systems, air systems, etc., and is supplied with nut type UM (EC-105â¦) in galvanized carbon steel, making it compatible with the specified hose types.

Can Spigot carbon steel type SF with UM nut be used in sanitary, fuel and air systems for flexible hoses with external steel braid?

Yes. Spigot carbon steel type SF Format with UM nut can be used in sanitary, fuel and air systems for flexible hoses with external steel braid. The SF type end fitting with flat sealing is intended for low-pressure rubber, non-reinforced and textile-reinforced plastic hoses with external steel braid and is commonly used in flexible hoses for sanitary fittings, fuel systems, air systems, etc. Material: carbon steel, galvanized.

Does Spigot carbon steel type SF with UM nut suit textile-reinforced plastic hoses with external steel braid?

Yes. The Spigot, carbon steel, type SF Format with flat sealing and UM nut is designed for use on low-pressure rubber and non-reinforced and textile-reinforced plastic hoses that have an external steel braid. Its intended applicationsâflexible hoses for sanitary fittings, fuel systems, air systems, etc.âmatch textile-reinforced plastic hose use. The carbon steel, galvanized construction provides suitable strength and corrosion resistance for typical low-pressure service. Ensure compatibility by verifying hose inner diameter and braid fit with the specific SF spigot dimensions and confirm operating pressure and media are within the fittingâs rated limits.

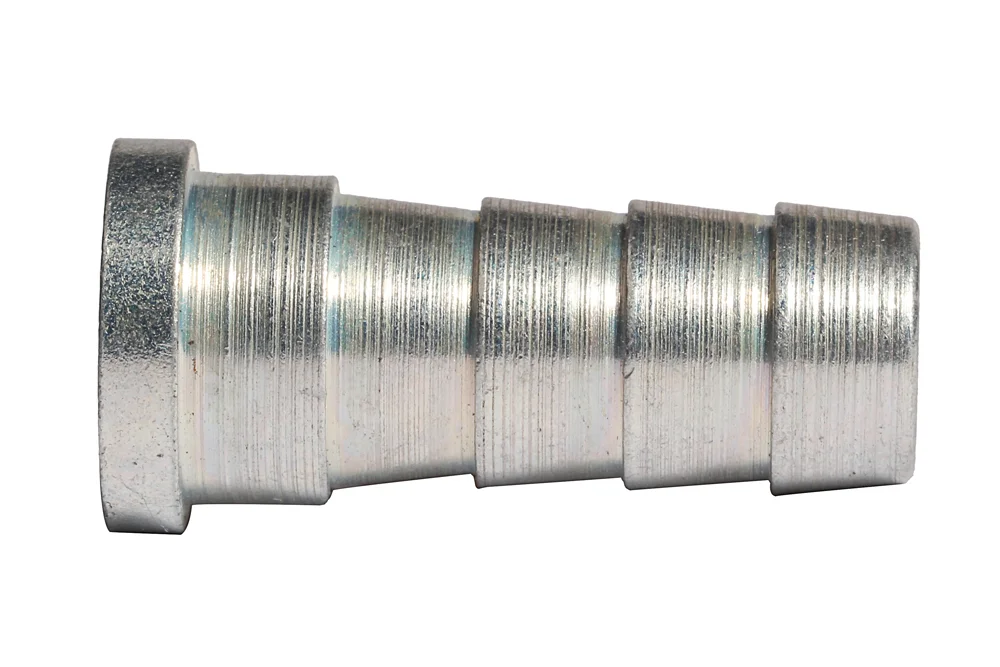

Spigot, carbon steel, type SF

All products, Low-pressure fittings and adapters/

Additional information

Material	CS – steel (cast iron)

Fitting type SF with a flat seal, intended for low-pressure rubber and plastic hoses, unreinforced and with textile reinforcement, with an external steel braid. Commonly used in flexible lines for sanitary fittings, fuel and air installations, etc. Use a UM type nut (EC-105…). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EC-105205	Spigot S 5 F (hose 4.5 mm)	5	30	In stock	Enquiry
EC-105206	Spigot S 6 F (hose 5.5 mm)	6	30	In stock	Enquiry
EC-105208	Spigot S 8 F (hose 7.5 mm)	8	30	In stock	Enquiry
EC-105210	Spigot S 10 F (hose 9.5 mm)	10	30	In stock	Enquiry
EC-105212	Spigot S 12 F (hose 11.5 mm)	12	30	In stock	Enquiry
EC-105213	Spigot S 12 F 1/2" (hose 11.5 mm)	12	30	In stock	Enquiry
EC-105215	Spigot S 15/22 F (hose 14.5 mm)	14	30	In stock	Enquiry
EC-105216	Spigot S 15 F 1/2" (hose 14.5 mm)	14	30	In stock	Enquiry
EC-105226	Spigot S 15/26 F (hose 14.5 mm)	14	30	In stock	Enquiry
EC-105228	Spigot S 18/26 F (hose 17 mm)	18	30	In stock	Enquiry
EC-105230	Spigot S 20 F 3/4" (hose 19.5 mm)	20	30	In stock	Enquiry
EC-105232	Spigot S 20 F 1" (hose 19.5 mm)	20	30	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting type SF with a flat seal, intended for low-pressure rubber and plastic hoses, unreinforced and with textile reinforcement, with an external steel braid. Commonly used in flexible lines for sanitary fittings, fuel and air installations, etc. Use a UM type nut (EC-105…). Material: carbon steel, galvanized.
