Is TYGONÂ® A 60-G universal temperature-resistant and peristaltic pump hose suitable for use with hydrogen peroxide and sodium hypochlorite?

Yes. TYGONÂ® A 60-G universal temperature-resistant and peristaltic pump hose is suitable for use with hydrogen peroxide and sodium hypochlorite. The product description specifically cites good chemical resistance to oxidizing agents such as hydrogen peroxide and sodium hypochlorite, notes excellent performance in peristaltic pumps (soft material, high flexibility, up to ~1000 hours pump life), and specifies a wide operating temperature range (â60Â°C to +135Â°C) and strong resistance to aging, ozone and UV. It is not recommended for hydrocarbons, but for the cited oxidizers it is appropriate.

Can TYGONÂ® A 60-G universal temperature-resistant and peristaltic pump hose be welded for custom-length assemblies?

Yes - TYGONÂ® A 60-G universal temperature-resistant and peristaltic pump hose can be welded for custom-length assemblies. The product description states hose connection by welding is possible. Use appropriate welding methods for thermoplastic elastomers (norpreneÂ® TPE) and follow manufacturer guidelines for joint strength, cleanliness (product is supplied from a clean room), and compatibility with intended media and temperature/pressure conditions.

Does TYGONÂ® A 60-G universal temperature-resistant and peristaltic pump hose resist animal and vegetable fats?

Yes. TYGONÂ® A 60-G universal temperature-resistant and peristaltic pump hose is resistant to a variety of animal and vegetable fats.

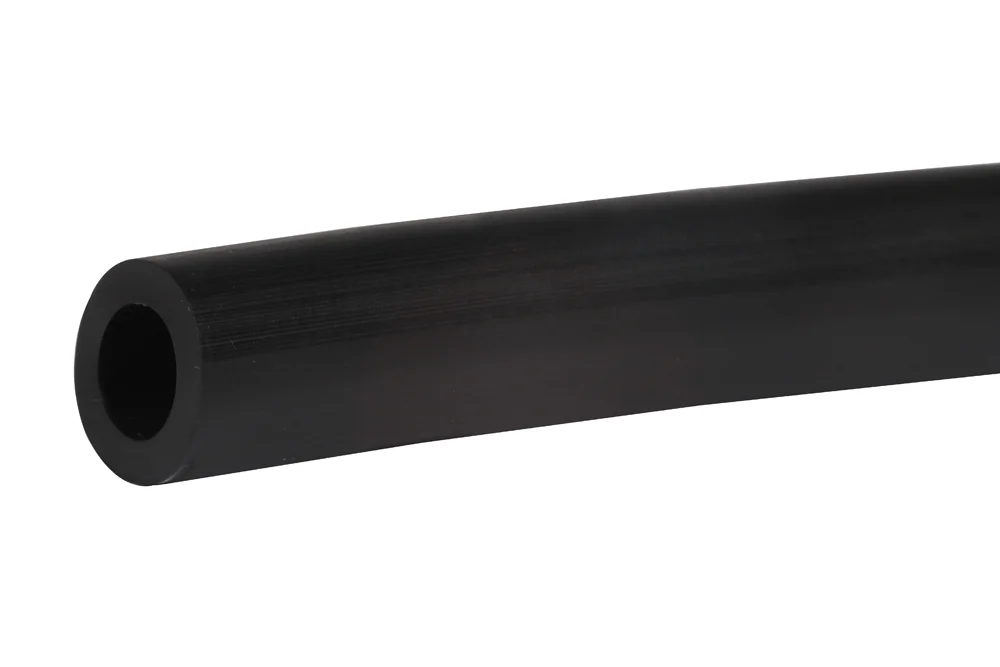

TYGON® A 60-G universal temperature-resistant and peristaltic pump hose

All products, TYGON® hoses/

Additional information

Material	TPE – thermoplastic elastomer
Maximum operating temperature [°C]	135
Vacuum resistance	yes
Standard length [m]	15, 30, 50

Black flexible universal hose with exceptional resistance to aging, weather conditions, and ozone, with good chemical resistance. Resistant to temperatures in a wide range from -60°C to +135°C. Extremely flexible, elastic, with high fatigue resistance to deformation, resistant to abrasion. Excellent for use in peristaltic pumps. Used for transfer and dosing in industry and services, e.g., for dispensing soap and disinfectants, cleaning agents, caustic soda, etching and galvanizing chemicals, in glass and window washing systems, etc. The soft hose material (61° Shore (A)) is very flexible and provides excellent longevity of up to 1000 hours of operation in a peristaltic pump. The hose is an alternative to commonly used hoses made from traditional rubber blends such as EPDM and chloroprene. It has good chemical resistance to a range of chemicals, particularly acids and bases, oxidizing agents such as hydrogen peroxide, sodium hypochlorite, or ozone (300 pphm). Resistant to a variety of animal and vegetable fats. Not recommended for hydrocarbons. Resistant to aging and UV radiation. Characterized by low gas permeability compared to rubber hoses. Hose connection by welding is possible. The VACUUM version with thick walls is designed for continuous operation with vacuum and is resistant to cracking and aging. Full hose roll length: 15 m. Working pressure specified relative to burst pressure with a safety factor of 1:5. Material: norprene® – thermoplastic elastomer (TPE). Maximum operating temperature: +135°C. Brittleness temperature: -60°C. Hardness: 61° Shore (A). Density: 0.98 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
VE-R6002-23	TYGON A 60-G hose 1.6x4.8 mm	2	2.34
VE-R6004-23	Hose TYGON A 60-G 3.2x6.4 mm	3	1.31
VE-R6004-43	Hose TYGON A 60-G 3.2x9.6 mm	3	2.34
VE-R6006-23	TYGON A 60-G hose 4.8x8 mm	5	0.9
VE-R6006-33	Hose TYGON A 60-G 4.8x9.6 mm	5	1.31
VE-R6006-63	TYGON A 60-G VACUUM Hose 4.8x14.4 mm	5	2.34
VE-R6008-23	Hose TYGON A 60-G 6.4x9.6 mm	6	0.69
VE-R6008-33	TYGON A 60-G hose 6.4x11.2 mm	6	1.03
VE-R6008-43	TYGON A 60-G hose 6.4x12.8 mm	6	1.31
VE-R6008-63	TYGON A 60-G VACUUM Hose 6.4x16 mm	6	1.79
VE-R6010-23	Hose TYGON A 60-G 8x11.2 mm	8	0.55
VE-R6010-33	Hose TYGON A 60-G 8x12.8 mm	8	0.83
VE-R6010-83	Hose TYGON A 60-G VACUUM 8x20.8 mm	8	1.93
VE-R6012-23	TYGON A 60-G hose 9.5x12.7 mm	10	0.48
VE-R6012-33	TYGON A 60-G hose 9.5x14.3 mm	10	0.69
VE-R6012-43	Hose TYGON A 60-G 9.5x15.9 mm	10	0.9
VE-R6014-23	Hose TYGON A 60-G 11.1x14.3 mm	10	0.41
VE-R6016-23	Hose TYGON A 60-G 12.7x15.9 mm	12	0.41
VE-R6016-33	Hose TYGON A 60-G 12.7x17.5 mm	12	0.55
VE-R6016-43	Hose TYGON A 60-G 12.7x19.1 mm	12	0.69
VE-R6020-33	Hose TYGON A 60-G 15.9x20.7 mm	16	0.48
VE-R6020-43	Hose TYGON A 60-G 15.9x22.3 mm	16	0.55
VE-R6024-43	Hose TYGON A 60-G 19x25.4 mm	20	0.48
VE-R6032-43	Hose TYGON A 60-G 25.4x31.8 mm	25	0.41

Black flexible universal hose with exceptional resistance to aging, weather conditions, and ozone, with good chemical resistance. Resistant to temperatures in a wide range from -60°C to +135°C. Extremely flexible, elastic, with high fatigue resistance to deformation, resistant to abrasion. Excellent for use in peristaltic pumps. Used for transfer and dosing in industry and services, e.g., for dispensing soap and disinfectants, cleaning agents, caustic soda, etching and galvanizing chemicals, in glass and window washing systems, etc. The soft hose material (61° Shore (A)) is very flexible and provides excellent longevity of up to 1000 hours of operation in a peristaltic pump. The hose is an alternative to commonly used hoses made from traditional rubber blends such as EPDM and chloroprene. It has good chemical resistance to a range of chemicals, particularly acids and bases, oxidizing agents such as hydrogen peroxide, sodium hypochlorite, or ozone (300 pphm). Resistant to a variety of animal and vegetable fats. Not recommended for hydrocarbons. Resistant to aging and UV radiation. Characterized by low gas permeability compared to rubber hoses. Hose connection by welding is possible. The VACUUM version with thick walls is designed for continuous operation with vacuum and is resistant to cracking and aging. Full hose roll length: 15 m. Working pressure specified relative to burst pressure with a safety factor of 1:5. Material: norprene® – thermoplastic elastomer (TPE). Maximum operating temperature: +135°C. Brittleness temperature: -60°C. Hardness: 61° Shore (A). Density: 0.98 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.
