Is the 90Â° elbow with external and internal BSP thread compatible with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series for use in pharmaceutical and food applications?

Yes . the 90Â° elbow with external and internal BSP thread, series 3F type EM, made of PVDF (also available in polypropylene) and rated to 10 bar, is compatible with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series for pharmaceutical and food applications. Both parts share the same 3F series, BSP thread standards (external/internal vs GZ/GW BSP terminology), and PVDF material, which is chemically resistant, inert and suitable for hygienic uses. Ensure matching BSP thread sizes and male/female orientation (external/internal vs GZ/GW) and verify pressure, temperature and sealing (use appropriate gaskets or PTFE tape if required) for your specific system and regulatory cleaning/sterilization requirements.

Can the 90Â° elbow with external and internal BSP thread, PVDF, 3F series be sterilized for use with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series?

Yes. The 90Â° elbow with external and internal BSP thread, PVDF, 3F series can be sterilized for use with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series. Both components are PVDF from the same 3F series, designed for laboratory, medical, pharmaceutical, chemical, and food applications, and can withstand typical sterilization methods compatible with PVDF (e.g., autoclaving and chemical sterilants) within the materialâs temperature and pressure limits. Ensure sterilization parameters do not exceed PVDFâs recommended temperature and that connections are assembled per manufacturer guidance to maintain seal integrity under working pressure (10 bar).

Does the 90Â° elbow with external and internal BSP thread, PVDF, 3F series meet USP/EP material standards for use with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series?

Based on the provided description, the 90Â° elbow with external and internal BSP thread, PVDF, 3F series (type EM) is stated to be made of polypropylene and PVDF and intended for use in laboratories, medicine, pharmaceutical, chemical, and food industries, with a working pressure of 10 bar. However, that description does not explicitly state compliance with USP (United States Pharmacopeia) or EP (European Pharmacopeia) material standards. Therefore, you cannot assume USP/EP compliance solely from the application claims. To determine if the 90Â° elbow meets USP/EP standards for use with the Straight connector with GZ BSP / GW BSP, PVDF, 3F series Format, you need explicit manufacturer documentation certifying USP Class VI or specific USP/EP material test compliance for the PVDF used (e.g., certificates of analysis, declaration of conformity, or thirdâparty test reports). Ask the manufacturer or supplier for USP/EP compliance certificates for the PVDF component; once provided and matching the Straight connector with GZ BSP / GW BSP, PVDF, 3F series Format materials, you can confirm suitability.

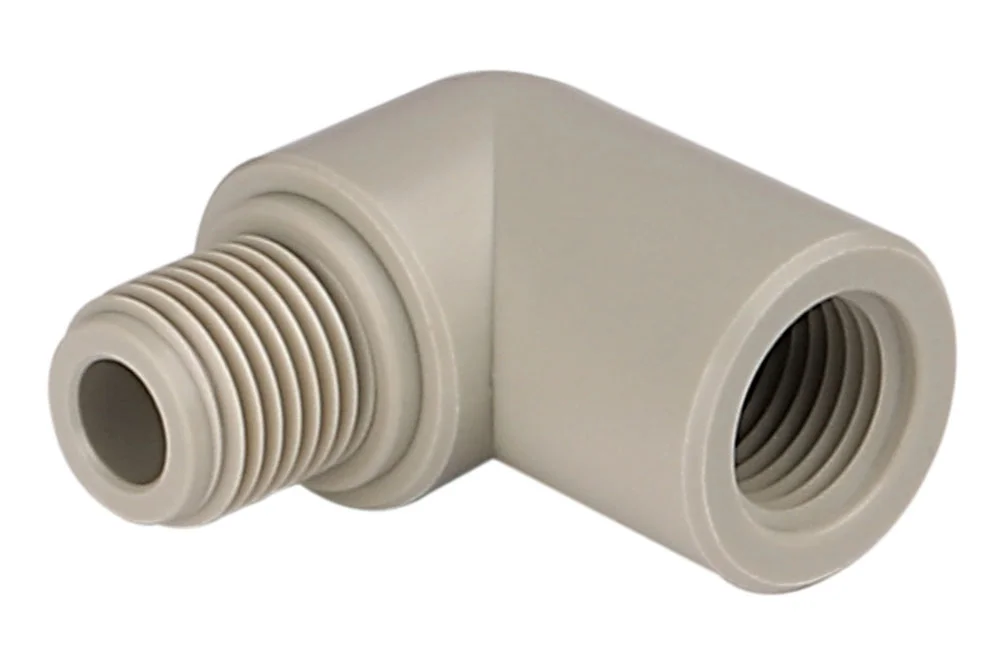

90° elbow with a BSP male thread / BSP female thread of PP, PVDF plastic, 3F series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

90° elbow with a BSP male and female thread, 3F series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-3F234GG12PP	Connector 90° (3F series) with male/female BSP 1/2", polypropylene	-	10	In stock	Enquiry
EM-3F234GG12PV	Connector 90° (3F series) with male/female BSP 1/2", PVDF	-	10	In stock	Enquiry
EM-3F234GG14PP	Connector 90° (3F series) with male/female BSP 1/4", polypropylene	-	10	In stock	Enquiry
EM-3F234GG14PV	Connector 90° (3F series) with male/female BSP 1/4", PVDF	-	10	In stock	Enquiry
EM-3F234GG18PP	Connector 90° (3F series) with male/female BSP 1/8", polypropylene	-	10	In stock	Enquiry
EM-3F234GG18PV	Connector 90° (3F series) with male/female BSP 1/8", PVDF	-	10	In stock	Enquiry
EM-3F234GG38PP	Connector 90° (3F series) with male/female BSP 3/8", polypropylene	-	10	In stock	Enquiry
EM-3F234GG38PV	Connector 90° (3F series) with male/female BSP 3/8", PVDF	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° elbow with a BSP male and female thread, 3F series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. Material: polypropylene, PVDF. Working pressure: 10 bar.
