Can the 90Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW222 be crimped onto 4SP/4SH/R13/R15 hoses without cutting the hose rubber using TI-N sleeves?

Yes. The 90Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW222 can be crimped onto 4SP/4SH/R13/R15 hoses using TI-N sleeves without cutting the hose rubber. The fitting is specifically designed as a non-skive (no rubber removal) 90Â° end with internal metric thread, a 24Â° cone sealing surface plus Oâring (DKOS 90), and its heavy series construction is intended for crimping to highâpressure hose types 4SP, 4SH, R13, and R15 with TIâN crimping sleeves. Material: carbon steel, galvanized. Follow the manufacturerâs crimping dimensions, tool settings and assembly procedure to ensure correct swage profile and sealing.

Is the 90Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW222 compatible with TI-N crimp sleeves for 4SP/4SH/R13/R15 hoses without cutting rubber?

Yes. The 90Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW222 is compatible with TI-N crimp sleeves for 4SP/4SH/R13/R15 hoses and is designed for installation without cutting the hose rubber. It features an internal metric thread, 24Â° cone sealing with O-ring, and is intended for crimping with TI-N sleeves on the specified hose types.

Does the 90Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW222 require hose cutting before crimping with TI-N sleeves?

No. The 90Â° NON SKIVE DKOS end, heavy series, carbon steel, type NMW222 is designed for crimping with TI-N sleeves onto hoses type 4SP, 4SH, R13 and R15 without cutting the hose rubber. Installation is specified as "without cutting the hose rubber," so you should fit and crimp the sleeve per the manufacturerâs procedure without removing the outer rubber cover.

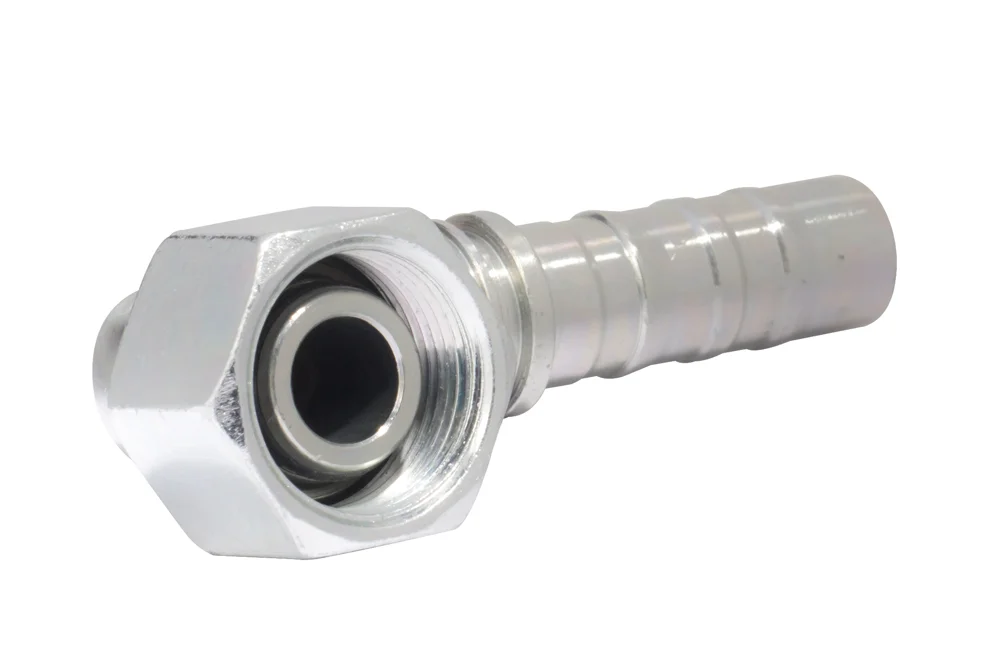

90° NON SKIVE DKOS end, heavy series, carbon steel, type NMW222

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

90° NON SKIVE end with internal metric thread, with sealing on a 24° cone, o-ring (DKOS 90), heavy series, designed for crimping in hoses type 4SP, 4SH, R13, and R15 using crimping sleeve TI-N… . Installation: without cutting the hose rubber. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NMW222-30-12	End 90° NON SKIVE GW M30x2, hose 3/4"	20	420	In stock	Enquiry
TI-NMW222-36-12	End. 90° NON SKIVE GW M36x2, hose 3/4"	20	420	In stock	Enquiry
TI-NMW222-36-16	End. 90° NON SKIVE GW M36x2, hose 1"	25	380	In stock	Enquiry
TI-NMW222-42-16	End. 90° NON SKIVE GW M42x2, hose 1"	25	380	In stock	Enquiry
TI-NMW222-42-20	End fitting 90° NON SKIVE GWM42x2, hose 1.1/4"	32	325	In stock	Enquiry
TI-NMW222-52-20	End fitting 90° NON SKIVE GWM52x2, hose 1.1/4"	32	325	In stock	Enquiry
TI-NMW222-52-24	End fitting 90° NON SKIVE GWM52x2, hose 1.1/2"	38	290	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° NON SKIVE end with internal metric thread, with sealing on a 24° cone, o-ring (DKOS 90), heavy series, designed for crimping in hoses type 4SP, 4SH, R13, and R15 using crimping sleeve TI-N… . Installation: without cutting the hose rubber. Material: carbon steel, galvanized.
