Is the Adaptor - elbow 45Â° with GZ / GW NPT, carbon steel, type A304 suitable for use with thread sealant on both external and internal NPT threads?

Yes. The Adaptor - elbow 45Â° with GZ / GW NPT, carbon steel, type A304 is described as having both external NPT thread (thread seal) and internal NPT thread (thread seal). That indicates it is suitable for use with thread sealant on both the external (male) and internal (female) NPT threads. Use an appropriate NPT-compatible sealant (e.g., PTFE tape or pipe dope) and follow recommended application practices.avoid overuse that could interfere with thread engagement or contaminate the system.and ensure compatibility of the sealant with carbon steel and the media in the system.

Can Adaptor - elbow 45Â° with GZ / GW NPT, carbon steel, type A304 be used in high-pressure systems with both external and internal NPT threads sealed?

Yes. The Adaptor - elbow 45Â° with GZ / GW NPT, carbon steel, type A304 described as a 45Â° high-pressure adapter with both external NPT thread (thread seal) and internal NPT thread (thread seal), made of galvanized carbon steel, can be used in high-pressure systems provided the following are met: the adapterâs pressure rating equals or exceeds the system operating pressure, threads are properly sealed with suitable NPT sealing method (thread sealant or PTFE tape compatible with media and temperature), and installation torque and thread engagement follow manufacturer or applicable standards. Also ensure material compatibility (carbon steel, galvanization) with the fluid and operating temperature to avoid corrosion or degradation.

Can Adaptor - elbow 45Â° with GZ / GW NPT, carbon steel, type A304 tolerate PTFE tape or pipe dope on both male and female NPT threads?

Adaptor - elbow 45Â° with GZ / GW NPT, carbon steel, type A304 can tolerate PTFE tape or pipe dope on both male and female NPT threads, with some important caveats. NPT threads are tapered and seal primarily by thread interference; using appropriate thread sealant (PTFE tape or pipe dope) is common practice to improve sealing and prevent galling, especially on carbon steel galvanized fittings. For the Adaptor - elbow 45Â° with GZ / GW NPT, carbon steel, type A304: - PTFE tape: Suitable when applied correctly. Use 3â4 wraps in the direction of the thread tightening, avoid overwrapping which can prevent proper engagement and cause leakage. Use tape rated for the operating pressure and temperature of your system. - Pipe dope (thread sealant): Also suitable and often provides a more robust seal on high-pressure fittings. Select a compatible, non-hardening compound rated for carbon steel, NPT threads, and your media (e.g., hydraulic oil, gas). Apply per manufacturer instructions and allow any curing time if required. - Both on male and female threads: You typically apply sealant to the male NPT thread only. Applying tape or dope inside the female thread is unnecessary and can introduce excess material that interferes with thread engagement. If pipe dope is used, light application to female threads is acceptable in some practices, but avoid overfilling. - Consider galvanization: Galvanized surfaces can affect adhesion of some sealants; choose products compatible with zinc coatings. - Pressure, temperature, and media: Ensure the chosen sealant is rated for your systemâs maximum pressure, temperature, and the conveyed fluid or gas. - Assembly best practices: Clean threads, hand-start to avoid cross-threading, tighten to recommended torque, and test for leaks. In summary: Adaptor - elbow 45Â° with GZ / GW NPT, carbon steel, type A304 can accept PTFE tape or pipe dope on NPT threads. Prefer applying sealant to the male threads only, choose a sealant compatible with galvanized carbon steel and your operating conditions, and follow proper application and assembly procedures.

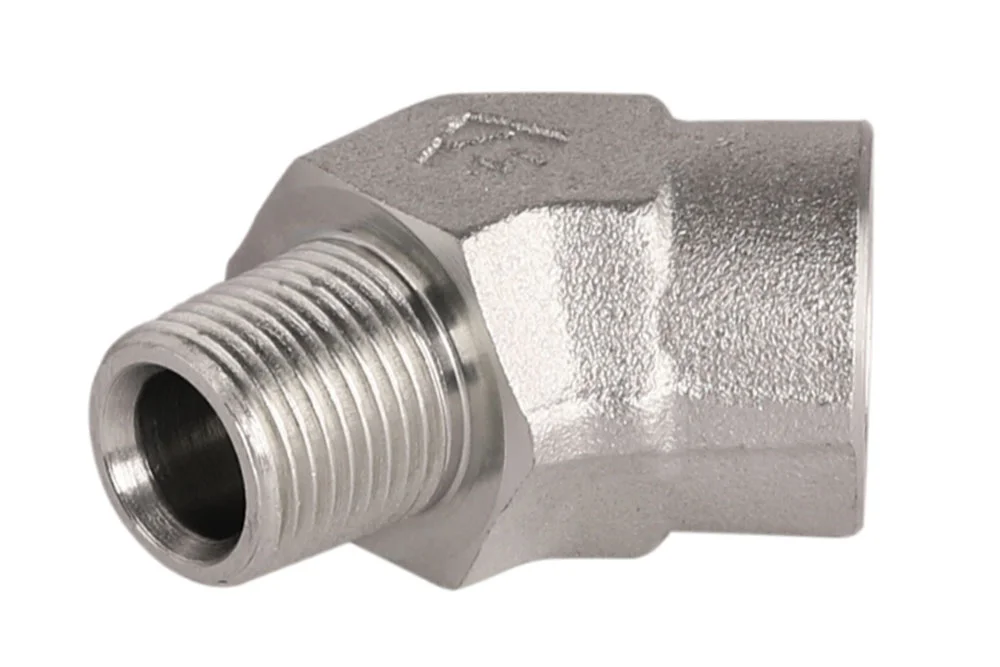

Adaptor – elbow 45° with GZ / GW NPT, carbon steel, type A304

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

45° high-pressure adapter type A304 with external NPT thread (thread seal) and internal NPT thread (thread seal). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A304-02-02	Adapter 45° GZ NPT 1/8" / GW NPT 1/8"	-	345	In stock	Enquiry
TI-A304-04-04	Adapter 45° GZ NPT 1/4" / GW NPT 1/4"	-	345	In stock	Enquiry
TI-A304-06-06	Adapter 45° GZ NPT 3/8" / GW NPT 3/8"	-	276	In stock	Enquiry
TI-A304-08-08	Adapter 45° GZ NPT 1/2" / GW NPT 1/2"	-	241	In stock	Enquiry
TI-A304-12-12	Adapter 45° GZ NPT 3/4" / GW NPT 3/4"	-	155	In stock	Enquiry
TI-A304-16-16	Adapter 45° GZ NPT 1" / GW NPT 1"	-	138	In stock	Enquiry
TI-A304-20-20	Adapter 45° GZ NPT 1.1/4" / GW NPT 1.1/4"	-	112	In stock	Enquiry
TI-A304-24-24	Adapter 45° GZ NPT 1.1/2" / GW NPT 1.1/2"	-	86	In stock	Enquiry
