Can the BANJO end to be soldered, carbon steel, type RL be used with standard DIN 7642-compatible hoses and fittings without modifying soldering procedure?

No . the BANJO end to be soldered, carbon steel, type RL Format cannot be assumed fully compatible with standard DIN 7642-compatible hoses and fittings without adjusting the soldering procedure. Although the RL type is described as âsimilar to DIN 7642,â similarity does not guarantee identical dimensions, tolerances, surface finish, or joint geometry required for reliable capillary soldering. Differences that matter include seating/clearance gaps, inner/outer diameters, bore alignment, and metallurgical surface condition; any of these can alter capillary action, solder flow, heat distribution, and joint strength. Before using the RL BANJO end with DIN 7642 components you should: - Verify dimensional compatibility (critical diameters, lengths, and fit clearance) against DIN 7642 specs. - Check material and plating/oxidation state; carbon steel surface prep and flux choice may need adjustment. - Test the recommended solder type, flux, and joint temperature/time on sample assemblies to confirm proper capillary action and leak-tightness. - Inspect joint geometry to ensure adequate capillary gap and avoid overfill or voids. If tests confirm exact fit and identical soldering behavior, you may use standard DIN 7642 soldering procedures; otherwise modify flux, heat profile, or joint preparation as required.

Can the BANJO end to be soldered, carbon steel, type RL meet the same pressure ratings as DIN 7642 when soldered per standard procedures?

Based on the description, the BANJO end to be soldered, carbon steel, type RL is similar to DIN 7642 and, when soldered according to standard procedures, can achieve comparable pressure ratings provided the following conditions are met: the base material and fitting geometry match DIN 7642 specifications; the solder alloy and joint preparation (cleaning, fluxing, correct fit-up) follow approved procedures; soldering is performed with controlled heat to ensure full capillary flow without overheating the base metal; and joints are inspected and tested (pressure/leak test) per the relevant standard. If any of these conditions are not met, pressure performance may be lower. For certification, validate by testing against DIN 7642 requirements.

Does BANJO end to be soldered, carbon steel, type RL require special flux or solder alloy for reliable joints?

For reliable joints when soldering BANJO end to be soldered, carbon steel, type RL Format (similar to DIN 7642), use the following: - Flux: A water-soluble or rosin-based flux formulated for steel is recommended. For carbon steel, use an active flux (contains mildly corrosive agents like zinc chloride/ammonium chloride or proprietary steel flux) to remove oxides and promote wetting. Avoid fluxes intended only for copper/brass plumbing as they may not activate sufficiently on steel. - Solder alloy: Use a solder compatible with steel and the joint service conditions. Common choices: - Silver-bearing solder (e.g., Ag-bearing soft solders) offers better mechanical strength and wetting on steel than plain tin-lead solders. - Low-melting bronze or copper-phosphorus alloys can also be used for stronger joints on steel. - Avoid relying on standard lead-free tin solders formulated for electronics (Sn-Ag-Cu) unless manufacturer confirms suitability for steel; they often need proper flux and higher temperature. - Temperature and heating: Ensure sufficient heat to reach solder flow temperature for the chosen alloy and flux, but avoid overheating which can burn flux and degrade the joint. Use a torch or soldering iron appropriate for the mass of the fitting. - Surface prep: Thoroughly clean the parts (degrease, remove rust/scale, abrade if necessary) before flux application for consistent wetting. - Post-solder cleaning: Remove residual flux (especially corrosive types) after soldering to prevent corrosion. In summary: BANJO end to be soldered, carbon steel, type RL Format requires an active steel-compatible flux and a solder alloy appropriate for steel (silver-bearing or copper/bronze-type solders recommended) for reliable joints; clean surfaces and post-solder removal of flux are essential.

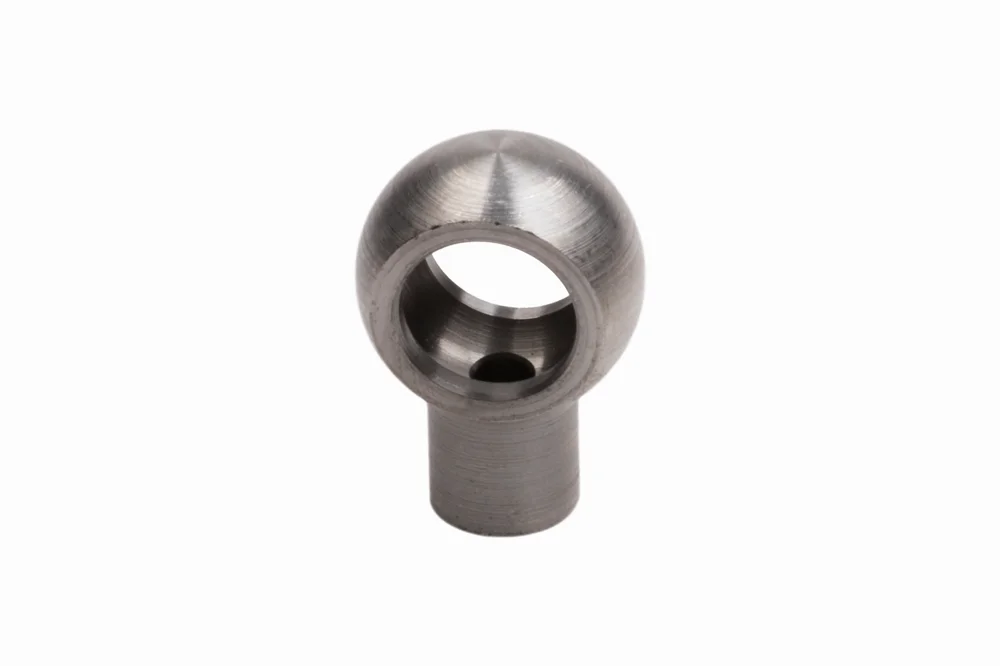

BANJO end to be soldered, carbon steel, type RL

All products, Low-pressure fittings and adapters/

Additional information

Material	CS – steel (cast iron)

RL type BANJO end fitting for soldering, similar to DIN 7642. Material: carbon steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EC-109006	BANJO fitting RL 6 mm (tube 4 mm)	-	30	In stock	Enquiry
EC-109008	BANJO fitting RL 8 mm (tube 5 mm)	-	30	In stock	Enquiry
EC-109010	BANJO fitting RL 10 mm (tube 6 mm)	-	30	In stock	Enquiry
EC-109012	BANJO fitting RL 12 mm (tube 6 mm)	-	30	In stock	Enquiry
EC-109014	BANJO fitting RL 14 mm (tube 6 mm)	-	30	In stock	Enquiry
EC-109112	BANJO fitting RL 12 mm (tube 8 mm)	-	30	In stock	Enquiry
EC-109114	BANJO fitting RL 14 mm (tube 8 mm)	-	30	In stock	Enquiry
EC-109213	BANJO fitting RL 12 mm (tube 10 mm)	-	30	In stock	Enquiry
EC-109214	BANJO fitting RL 14 mm (tube 10 mm)	-	30	In stock	Enquiry
EC-109216	BANJO fitting RL 16 mm (tube 10 mm)	-	30	In stock	Enquiry
EC-109316	BANJO fitting RL 16 mm (tube 12 mm)	-	30	In stock	Enquiry
EC-109318	BANJO fitting RL 18 mm (tube 12 mm)	-	30	In stock	Enquiry
EC-109418	BANJO fitting RL 18 mm (tube 15 mm)	-	30	In stock	Enquiry
EC-109422	BANJO fitting RL 22 mm (tube 18 mm)	-	30	In stock	Enquiry
EC-109426	BANJO end fitting 26 mm (tube 18 mm)	-	30	In stock	Enquiry
EC-109526	BANJO end fitting RL 26 mm (tube 22 mm)	-	30	In stock	Enquiry
EC-109530	BANJO end fitting 30 mm (tube 28 mm)	-	30	In stock	Enquiry
