What is the correct opening pressure setting for the Brake valve, type VODE relative to the actuator load?

The correct opening pressure setting for the Brake valve, type VODE must be 30% higher than the pressure produced by the actuator load. Set the opening pressure using the adjustment screw (Allen key) and lock it with the counter nut. If the load-derived pressure is P_load, then set P_open = P_load Ã 1.30. Note: the valveâs standard minimum opening pressure is 0.5 bar, so the final set value must not be below 0.5 bar.

How do I adjust the opening pressure of the Brake valve, type VODE to account for actuator load?

To adjust the opening pressure of the Brake valve, type VODE, to account for actuator load: 1. Determine the pressure produced by the actuator load (load pressure P_load). 2. Calculate target opening pressure: P_target = P_load Ã 1.30 (30% higher than load pressure). 3. Note the valveâs standard minimum is 0.5 bar; ensure P_target â¥ 0.5 bar. 4. Using an Allen key, turn the adjustment screw to increase or decrease spring preload until the valve opens at P_target. 5. Verify with a pressure gauge under the actual load. 6. Lock the adjustment screw with the counter nut. Brake valve, type VODE materials and limits: galvanized steel body/valve, NBR seals, operating â20Â°C to +100Â°C.

How often should the opening pressure of the Brake valve, type VODE be rechecked during regular maintenance?

The opening pressure of the Brake valve, type VODE should be rechecked during regular maintenance at every scheduled service interval or whenever load conditions of the receiver change. Specifically: - At each routine maintenance inspection (recommended minimum: every 6â12 months, depending on usage intensity and operating conditions). - After any adjustment of load or actuator parameters that affect receiver pressure. - After any repair, replacement, or removal/reinstallation of the valve. Always verify that the set opening pressure (adjusted with an Allen key and locked with the counter nut) remains 30% above the pressure resulting from the receiver load, and confirm it is near the standard check valve reference of 0.5 bar where applicable.

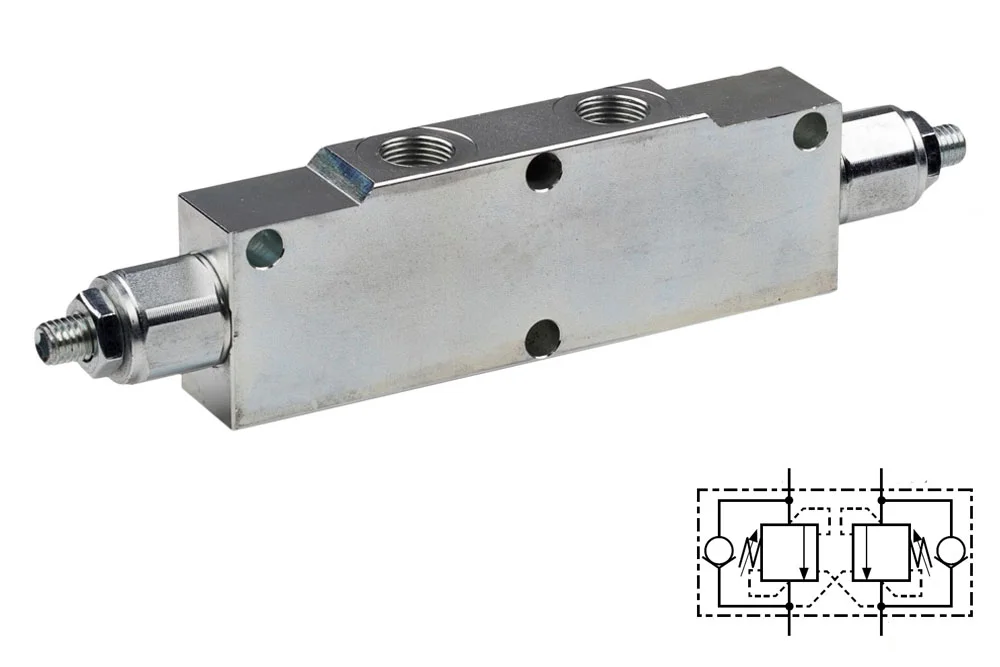

Brake valve, type VODE

All products, Other high-pressure valves/

Additional information

Material	CS – steel (cast iron)

VODE valves are used in hydraulic systems as a controlling and blocking element for double-acting actuators. They allow for smooth descent of the actuator under load. The opening pressure value is set using screws (adjustment with an Allen key, locked with a counter nut). The set value must be 30% higher than the pressure value resulting from the load of the receiver. The standard opening pressure of check valves is 0.5 bar. The valves are equipped with mounting holes. Material: galvanized steel (body), galvanized steel (valve). Sealing: NBR. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DC-VODE-04	VODE brake valve, GW 1/4" BSP	-	350	In stock	Enquiry
DC-VODE-06	VODE brake valve, GW 3/8" BSP	-	350	In stock	Enquiry
DC-VODE-08	VODE brake valve, GW 1/2" BSP	-	350	In stock	Enquiry
DC-VODE-12	VODE brake valve, GW 3/4" BSP	-	350	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

VODE valves are used in hydraulic systems as a controlling and blocking element for double-acting actuators. They allow for smooth descent of the actuator under load. The opening pressure value is set using screws (adjustment with an Allen key, locked with a counter nut). The set value must be 30% higher than the pressure value resulting from the load of the receiver. The standard opening pressure of check valves is 0.5 bar. The valves are equipped with mounting holes. Material: galvanized steel (body), galvanized steel (valve). Sealing: NBR. Operating temperature: from -20°C to +100°C.
