Does the Pneumatic throttling valve brass MRF/B support bidirectional flow regulation at pressures up to 10 bar and temperatures -10Â°C to +70Â°C?

Yes. The Pneumatic throttling valve brass MRF/B supports bidirectional flow regulation (simultaneous regulation during filling and venting) and is rated for working pressures up to 10 bar and operating temperatures from -10Â°C to +70Â°C.

How do I adjust the flow on the Pneumatic throttling valve brass MRF/B using a screwdriver without disconnecting hoses?

To adjust flow on the Pneumatic throttling valve brass MRF/B without disconnecting hoses, use a flatâhead screwdriver to turn the adjustment screw on the valve body. Turn clockwise to reduce (throttle) flow and counterclockwise to increase flow. Make small incremental turns and test the system at operating pressure (up to 10 bar, nominal flow specified at 6.3 bar) after each adjustment until desired rate is reached. The valve allows simultaneous regulation for filling and venting; ensure you adjust while the system is pressurized so you observe the throttled direction behavior. The MRF/Bâs plug connection permits hose disassembly if needed, but is not required for the screwdriver adjustment. Work within the valveâs temperature range (â10Â°C to +70Â°C) and avoid overâtightening.

Can the Pneumatic throttling valve brass MRF/B be fitted with quick-disconnect fittings for faster hose replacement?

Yes. The Pneumatic throttling valve brass MRF/B can be fitted with quick-disconnect fittings for faster hose replacement, because it is described as âequipped with a plug connection for easy disassembly of pneumatic hoses.â That plug-style connection is compatible with quick-disconnect (QD) style couplings or can be adapted to them, enabling rapid hose removal and reconnection without tools. Practical notes: - Ensure the QD fitting size and type match the valveâs existing plug connection and hose diameter. - Verify pressure and temperature ratings of the chosen QD fittings (the valve is rated to 10 bar and â10Â°C to +70Â°C). - Use fittings rated for compressed air and compatible with nickel-plated brass to avoid galvanic or sealing issues.

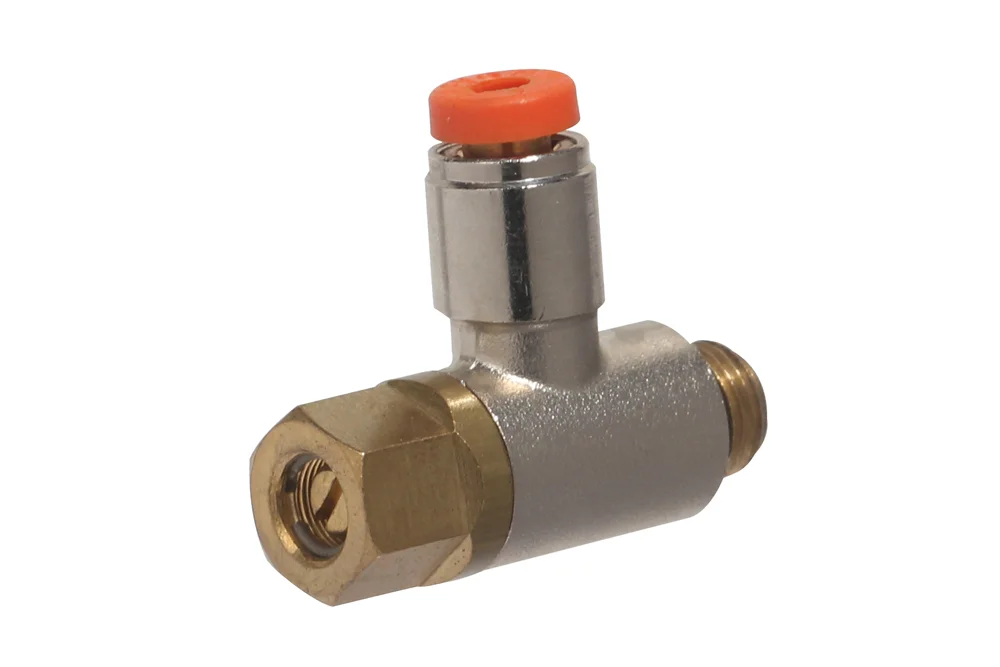

Valve throttle pneumatic brass MRF/B

All products, Pneumatic valves/

Additional information

Material	B – brass (bronze)

Valve throttle type MRF/B used for simultaneous adjustment flow in both directions – during filling and venting, used in systems pneumatic for adjustment rate flowing stream compressed. Equipped with a push-in connector ensuring easy disassembly of pneumatic lines. Setting adjustment using a screwdriver. stated flow nominal at pressure 6.3 bar (in direction throttled). pressure working: up to 10 bar. Operating temperature: from -10°C to +70°C. Material the body: brass nickel-plated.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MW-9001604	Throttle valve MRF/B, hose 5 mm, 1/8" BSP male	-	10	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Valve throttle type MRF/B used for simultaneous adjustment flow in both directions – during filling and venting, used in systems pneumatic for adjustment rate flowing stream compressed. Equipped with a push-in connector ensuring easy disassembly of pneumatic lines. Setting adjustment using a screwdriver. stated flow nominal at pressure 6.3 bar (in direction throttled). pressure working: up to 10 bar. Operating temperature: from -10°C to +70°C. Material the body: brass nickel-plated.
