Is the Collet for Teflon hoses, stainless steel, AF-T compatible with AF-T clamp sleeve for smoothbore and HYPERLINE V Teflon hoses in AISI 304 or 316?

Yes. The Collet for Teflon hoses, stainless steel, AF-T is compatible with the AF-T clamp sleeve for smoothbore and HYPERLINE V Teflon hoses in AISI 304 or 316. Both components are specified for AF-T Teflon hose systems and are manufactured in matching stainless-steel grades (AISI 304 or 316), ensuring material compatibility, proper fit, and corrosion resistance when used together.

Does the Collet for Teflon hoses, stainless steel, AF-T fit both smoothbore and HYPERLINE V Teflon hose sizes?

Yes. Collet for Teflon hoses, stainless steel, AF-T is designed as a clamp sleeve for both smoothbore and HYPERLINE V Teflon hoses. Made from AISI 304 or 316 stainless steel, it fits and secures both hose types.

Can the Collet for Teflon hoses, stainless steel, AF-T be used interchangeably with AF-T clamp sleeve for HYPERLINE V?

No. the Collet for Teflon hoses, stainless steel, AF-T cannot be assumed interchangeable with the AF-T clamp sleeve for HYPERLINE V without verifying specific dimensions and intended hose cross-sections. Explanation: Both parts are intended for PTFE (Teflon) smoothbore hoses and may be made from compatible materials (AISI 304 or 316), but interchangeability depends on matching critical features: - Internal bore diameter and taper profile (must match hose outer diameter and mating fitting taper). - Axial length and insertion depth (affects seal and grip). - Clamp geometry and how the sleeve engages the collet/fitting (different systems use distinct engagement methods). - Hose type specifics: HYPERLINE V may have a specific wall thickness or reinforcement that alters outer diameter compared with generic smoothbore PTFE hoses. - Pressure and temperature ratings: material is same, but design tolerances and rated working pressures may differ. Recommendation: Compare technical drawings/specs (bore, taper angle, length, part codes) or test-fit under controlled conditions. If specs match exactly or manufacturer confirms compatibility, interchange is acceptable; otherwise use the AF-T clamp sleeve designed for HYPERLINE V to ensure proper sealing and safety.

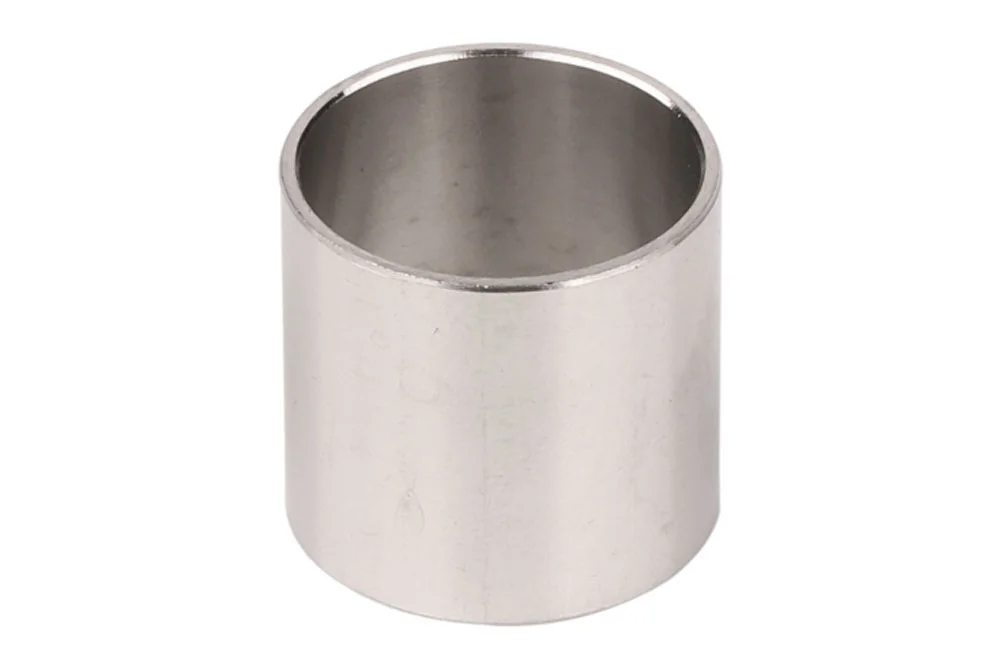

Collet for Teflon hoses, stainless steel, AF-T

All products, PTFE hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	15

AF-T clamp sleeve for smoothbore and HYPERLINE V teflon hoses. Material: AISI 304 or 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AF-T2-06-SS316	Teflon hose sleeve 3/8" (SWDB, HWDB, VFPB), AISI 316	-	-	In stock	Enquiry
AF-T2-08-SS	Teflon hose sleeve 1/2" (SWDB, HWDB, VFPB), AISI 304	-	-	In stock	Enquiry
AF-T2-10-SS	Teflon hose sleeve 5/8" (VFSS, VFPB), AISI 304	-	-	In stock	Enquiry
AF-T2-12-SS	Teflon hose sleeve 3/4" (SWSB, HWSB, SWDB, HWDB, VFSS), AISI 304	-	-	In stock	Enquiry
AF-T2-32-SS	Teflon hose sleeve 2" (HWDB, VFSS), AISI 304	-	-	In stock	Enquiry
AF-T3-16-SS	Teflon hose sleeve 1", AISI 304	-	-	In stock	Enquiry
