Is the Hose for handling systems RAFFINERIA CLC suitable for transferring liquids with up to 50% aromatics and safe from electrostatic buildup?

Hose for handling systems RAFFINERIA CLC is suitable for transferring liquids containing up to 50% aromatic compounds and is designed to minimize electrostatic hazards. The inner layer is antistatic with resistance R < 10^6 Î© and a copper wire provides electrical continuity between hose ends to dissipate static charges. Construction (NBR inner layer, synthetic braid and steel spirals, corrugated outer layer) and specified working pressures (10â16 bar) and temperature range (â30Â°C to +80Â°C, temporarily up to +120Â°C) confirm suitability for petrochemical transfer applications. Ensure proper bonding/grounding of the hose ends and follow grounding and handling procedures recommended for conductive hoses and for the specific product being transferred.

Can Hose for handling systems RAFFINERIA CLC be used with fuel tanker discharge systems at temperatures up to +120Â°C?

Hose for handling systems RAFFINERIA CLC can be used with fuel tanker discharge systems at temperatures up to +120Â°C only under temporary conditions and depending on the type of conveyed medium. Standard operating temperature range is -30Â°C to +80Â°C, with short-term exposure up to +120Â°C permissible per product specification. Ensure compatibility with the specific fluid (up to 50% aromatics), confirm antistatic continuity requirements, and verify that temporary high-temperature use does not exceed manufacturerâs limits for your hose diameter, pressure rating and application.

Can Hose for handling systems RAFFINERIA CLC resist temporary contact with hydrocarbons and oils?

Yes. Hose for handling systems RAFFINERIA CLC can resist temporary contact with hydrocarbons and oils. The product description explicitly states the outer layer is resistant to abrasion, mineral oils, ozone, aging, weather conditions, and temporary contact with hydrocarbons. Additionally, the inner layer is made of NBR (nitrile rubber), which offers good resistance to oils and hydrocarbons, and the hose is designed for petrochemical liquid transfer (including up to 50% aromatic compounds). Note the resistance is specified as temporary contact; continuous long-term immersion or exposure at elevated temperatures may require verification against specific hydrocarbons, concentrations and operating conditions.

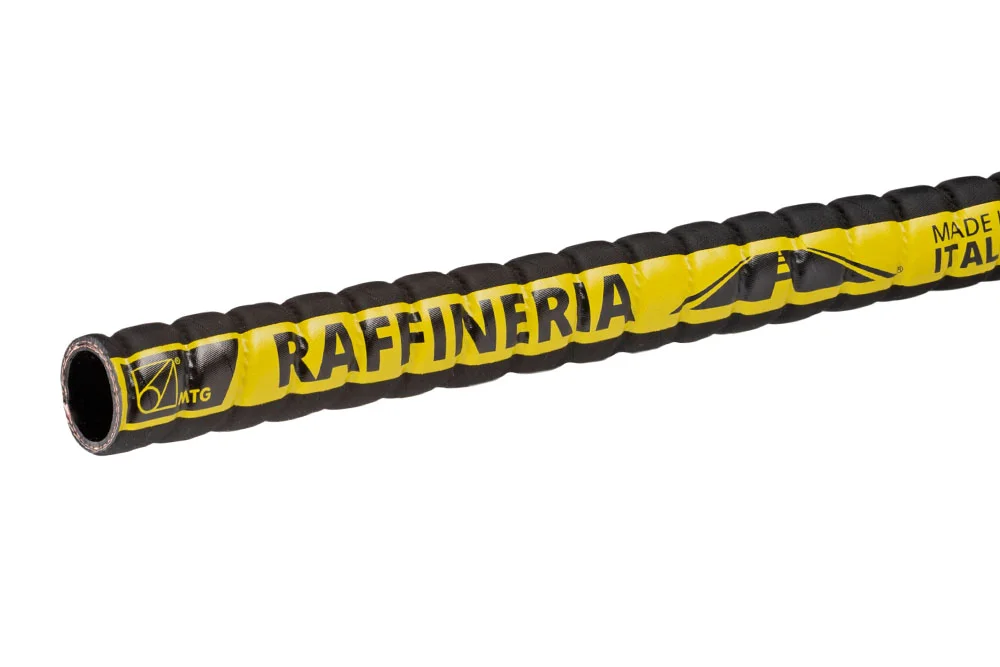

Hose for handling systems RAFFINERIA CLC

Q: Can Hose for handling systems RAFFINERIA CLC be used with fuel tanker discharge systems at temperatures up to +120Â°C?

Hose for handling systems RAFFINERIA CLC can be used with fuel tanker discharge systems at temperatures up to +120Â°C only under temporary conditions and depending on the type of conveyed medium. Standard operating temperature range is -30Â°C to +80Â°C, with short-term exposure up to +120Â°C permissible per product specification. Ensure compatibility with the specific fluid (up to 50% aromatics), confirm antistatic continuity requirements, and verify that temporary high-temperature use does not exceed manufacturerâs limits for your hose diameter, pressure rating and application.

Q: Can Hose for handling systems RAFFINERIA CLC resist temporary contact with hydrocarbons and oils?

Yes. Hose for handling systems RAFFINERIA CLC can resist temporary contact with hydrocarbons and oils. The product description explicitly states the outer layer is resistant to abrasion, mineral oils, ozone, aging, weather conditions, and temporary contact with hydrocarbons. Additionally, the inner layer is made of NBR (nitrile rubber), which offers good resistance to oils and hydrocarbons, and the hose is designed for petrochemical liquid transfer (including up to 50% aromatic compounds). Note the resistance is specified as temporary contact; continuous long-term immersion or exposure at elevated temperatures may require verification against specific hydrocarbons, concentrations and operating conditions.

All products, Oil and petroleum hoses/

Additional information

Material	NBR – nitrile rubber
Maximum operating temperature [°C]	80
Minimum operating temperature [°C]	-30
Vacuum resistance	yes
Standard length [m]	10, 12, 40, 50
Reinforcement	steel spiral, synthetic cover

Lightweight, flexible, suction and discharge hose designed for the transfer of liquid products in the petrochemical industry, containing up to 50% aromatic compounds. The inner layer is antistatic R<10⁶Ω. It features a copper wire ensuring electrical continuity between the hose ends and the dissipation of electrostatic charges. Excellent for transfer systems and, due to the external corrugation, suitable for applications requiring a small bending radius. The outer layer is resistant to abrasion, mineral oils, ozone, aging, weather conditions, and temporary contact with hydrocarbons. Used for fuel tankers and special vehicles for sewer cleaning. Inner layer: black NBR rubber. Reinforcement: synthetic braid, steel spirals. Outer layer: black synthetic rubber. Working pressure: from 10 bar to 16 bar – depending on the hose diameter. Vacuum: 0.9 bar. Operating temperature: from -30°C to +80°C (temporarily up to +120°C depending on the type of medium).

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
MT-RAFFINERIA-CLC-019	Hose REFINERY/CLC 19x30 mm	20	16
MT-RAFFINERIA-CLC-025	Hose REFINERY/CLC 25x37 mm	25	16
MT-RAFFINERIA-CLC-032	Hose REFINERY/CLC 32x43 mm	32	16
MT-RAFFINERIA-CLC-038	Hose REFINERY/CLC 38x51 mm	38	16
MT-RAFFINERIA-CLC-040	Hose REFINERY/CLC 40x52 mm	40	16
MT-RAFFINERIA-CLC-045	Hose REFINERY/CLC 45x57 mm	45	16
MT-RAFFINERIA-CLC-050	Hose REFINERY/CLC 50x64 mm	50	16
MT-RAFFINERIA-CLC-063	Hose REFINERY/CLC 63.5x77.5 mm	65	12
MT-RAFFINERIA-CLC-070	Hose REFINERY/CLC 70x85 mm	70	12
MT-RAFFINERIA-CLC-076	Hose REFINERY/CLC 76x91 mm	75	10
MT-RAFFINERIA-CLC-080	Hose REFINERY/CLC 80x95 mm	80	10
MT-RAFFINERIA-CLC-100	Hose REFINERY/CLC 100x120 mm	100	10
MT-RAFFINERIA-CLC-102	Hose REFINERY/CLC 102x122 mm	100	10

Lightweight, flexible, suction and discharge hose designed for the transfer of liquid products in the petrochemical industry, containing up to 50% aromatic compounds. The inner layer is antistatic R<10⁶Ω. It features a copper wire ensuring electrical continuity between the hose ends and the dissipation of electrostatic charges. Excellent for transfer systems and, due to the external corrugation, suitable for applications requiring a small bending radius. The outer layer is resistant to abrasion, mineral oils, ozone, aging, weather conditions, and temporary contact with hydrocarbons. Used for fuel tankers and special vehicles for sewer cleaning. Inner layer: black NBR rubber. Reinforcement: synthetic braid, steel spirals. Outer layer: black synthetic rubber. Working pressure: from 10 bar to 16 bar – depending on the hose diameter. Vacuum: 0.9 bar. Operating temperature: from -30°C to +80°C (temporarily up to +120°C depending on the type of medium).

Additional information

Material	NBR – nitrile rubber
Maximum operating temperature [°C]	80
Minimum operating temperature [°C]	-30
Vacuum resistance	yes
Standard length [m]	10, 12, 40, 50
Reinforcement	steel spiral, synthetic cover
