Is the DKOL 45Â° hydraulic end, type ZMW321, light series, AISI 316L steel compatible with standard crimping sleeves for industrial hydraulic hoses?

Yes . the DKOL 45Â° hydraulic end, type ZMW321, light series, AISI 316L steel is compatible with standard crimping sleeves intended for the specific hydraulic hose type. The product is described as a standard hydraulic end fitting (type Z) with a regular hydraulic tail designed for crimping in hydraulic and industrial hoses, and it explicitly states it is designed for use with a crimping sleeve suitable for the hose type. Ensure you match the sleeve and hose specifications (hose inner diameter, reinforcement type, and crimping dimensions) and use the correct crimping die/profile recommended by the hose manufacturer. Also verify compatibility of the 24Â° cone DKOL O-ring sealing angle and nut with the mating component and follow crimping pressures and procedures specified for the hose and sleeve to achieve a reliable, leak-free assembly.

Can DKOL 45Â° hydraulic end, type ZMW321, light series, AISI 316L steel be used with crimping sleeves specified for PTFE-lined hydraulic hoses?

Yes. DKOL 45Â° hydraulic end, type ZMW321, light series, AISI 316L steel can be used with crimping sleeves specified for PTFE-lined hydraulic hoses, provided the crimping sleeve matches the hose outer diameter and is rated for the hose construction. The fitting is designed for crimping in hydraulic and industrial hoses and features a regular hydraulic tail, internal metric thread with nut, and a 24Â° cone O-ring seal, so compatibility depends on correct sleeve size, crimping parameters, and material/pressure ratings. Verify sleeve dimensions, crimping machine settings, and system pressure/chemical compatibility before assembly.

Can DKOL 45Â° hydraulic end, type ZMW321, light series, AISI 316L steel be crimped using sleeves rated for high-pressure rubber hydraulic hoses?

Yes. DKOL 45Â° hydraulic end, type ZMW321, light series, AISI 316L steel can be crimped using sleeves rated for high-pressure rubber hydraulic hoses, provided the sleeve is specifically matched to the hose construction and nominal size. Reasoning: - The fitting description states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type," which indicates compatibility with standard crimping processes for high-pressure rubber hydraulic hoses. - Material (AISI 316L) and the light-series design do not prevent crimping; they require correct sleeve selection and proper crimping parameters to ensure a reliable swaged joint. - Critical requirements: - Sleeve type must match the hose (spiral, braided, wire-reinforced, or textile) and be approved for the hose working pressure. - Sleeve internal profile and length must fit the ZMW321 fitting geometry and allow correct insertion depth of hose and fitting tail. - Crimping machine and die set must be appropriate for the sleeve/hose combination and able to achieve the specified crimp dimensions and pressures. - Follow manufacturer installation instructions for hose, fitting, and sleeve (including lubrication, insertion depth, and crimp specs). Verify O-ring and 24Â° cone seating as part of assembly checks. - Perform pressure testing per applicable standards after crimping. If any doubt remains, confirm compatibility with the hose and sleeve manufacturers or request installation guidelines/test reports for the exact ZMW321 + hose + sleeve combination.

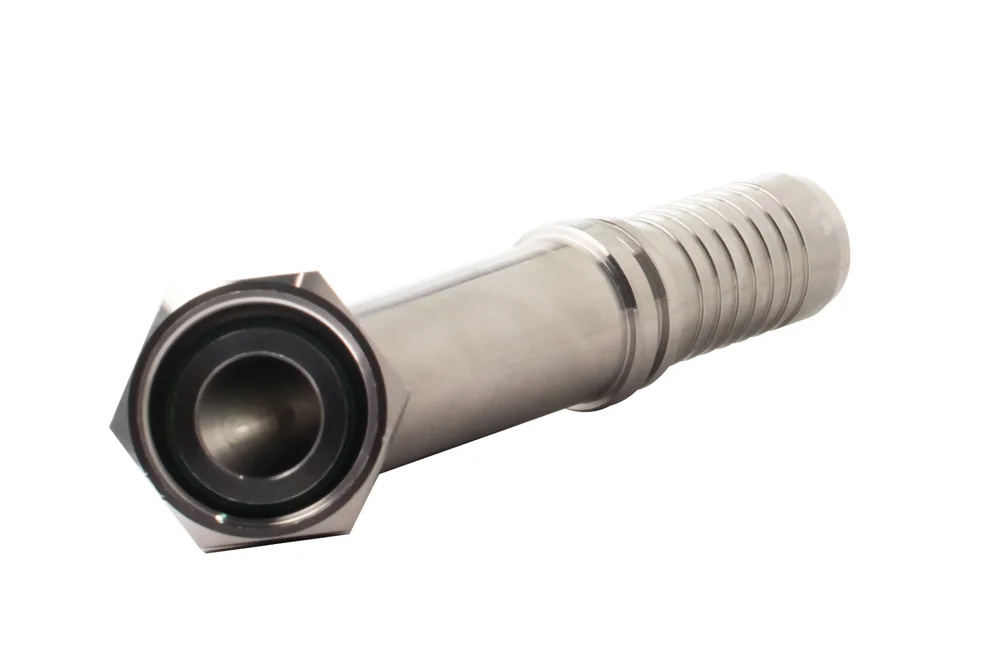

Fitting hydraulic DKOL 45°, type ZMW321, series light, AISI 316L

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	15

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric female thread with a nut, sealing an O-ring on a 24° cone (DKOL), angled 45°, series light. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 316L.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW321-12-04-SS	Fitting 45° M12x1.5 female, hose 1/4" 24, O-ring, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMW321-14-04-SS	Fitting 45° M14x1.5 female, hose 1/4", 24°, O-ring, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMW321-16-04-SS	Fitting 45° M16x1.5 female, hose 1/4", 24°, O-ring, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMW321-16-05-SS	Fitting 45° M16x1.5 female, hose 5/16", 24°,O-ring, light, AISI 316L	8	-	In stock	Enquiry
TI-ZMW321-16-06-SS	Fitting 45° M16x1.5 female, hose 3/8", 24°, O-ring, light, AISI 316L	10	-	In stock	Enquiry
TI-ZMW321-18-06-SS	Fitting 45° M18x1.5 female, hose 3/8", 24°, O-ring, light, AISI 316L	10	-	In stock	Enquiry
TI-ZMW321-22-08-SS	Fitting 45° M22x1.5 female, hose 1/2", 24°, O-ring, light, AISI 316L	12	-	In stock	Enquiry
TI-ZMW321-26-10-SS	Fitting 45° M26x1.5 female, hose 5/8", 24°, O-ring, light, AISI 316L	16	-	In stock	Enquiry
TI-ZMW321-30-12-SS	Fitting 45° M30x2 female, hose 3/4", 24°, O-ring, light, AISI 316L	20	-	In stock	Enquiry
TI-ZMW321-36-16-SS	Fitting 45° M36x2 female, hose 1", 24°, O-ring, light, AISI 316L	25	-	In stock	Enquiry
TI-ZMW321-45-20-SS	Fitting 45° M45x2 female, hose 1.1/4", 24°, O-ring, light, AISI 316L	32	-	In stock	Enquiry
TI-ZMW321-52-24-SS	Fitting 45° M52x2 female, hose 1.1/2", 24°, O-ring, light, AISI 316L	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric female thread with a nut, sealing an O-ring on a 24° cone (DKOL), angled 45°, series light. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 316L.
