Does the Nickel-plated brass tee "Y" with 1xGZ BSP/2xGW BSP, type A24 require thread sealant for safe use at 60 bar?

Yes. The Nickel-plated brass tee "Y" with 1xGZ BSP/2xGW BSP, type A24 requires thread sealant for safe use at 60 bar. Per the product description, connections do not rely on the fitting alone and âusually require the use of additional seals.â Use an appropriate seal based on thread form: - For tapered threads (BSPT, external), use PTFE (Teflon) tape or a thread sealant designed for gas/air service. Wrap tape correctly (clockwise looking at male thread) and avoid excess. - For cylindrical threads (BSP, internal), use a metal sealing washer (aluminum or copper) or an Oâring if specified for the mating part. Also ensure compatible sealant/washers for pneumatic service and the temperature/pressure range up to 60 bar. Torque fittings to manufacturer recommendations to avoid thread or washer damage.

Is thread sealant required for safe operation of the Nickel-plated brass tee "Y" with 1xGZ BSP/2xGW BSP, type A24 at 60 bar?

Yes. For safe operation of the Nickel-plated brass tee "Y" with 1xGZ BSP/2xGW BSP, type A24 at 60 bar you must use thread sealant appropriate to the thread type: for the tapered BSPT (external) thread use PTFE (Teflon) tape or a liquid thread sealant rated for pneumatic use and 60 bar; for the cylindrical BSP (internal) threads use aluminum or copper sealing washers as specified. Ensure sealants and washers are compatible with brass, the media, and the pressure rating, and tighten to correct torque. Conduct a leak test after assembly.

What sealing method is recommended for the Nickel-plated brass tee "Y" with 1xGZ BSP/2xGW BSP, type A24 at 60 bar?

For the Nickel-plated brass tee "Y" with 1xGZ BSP/2xGW BSP, type A24 at 60 bar, use sealing appropriate to thread type: for the tapered external BSPT (1xGZ) apply PTFE (Teflon) tape or a thread sealant; for the two internal cylindrical BSP (2xGW) use flat metal washers. aluminum or copper. on the mating male faces. Ensure tape/sealant is applied correctly to the BSPT male thread without contaminating the bore, and washers are correctly sized and compressed to form a metal-to-metal seal. This combination provides reliable tightness for pneumatic service at 60 bar.

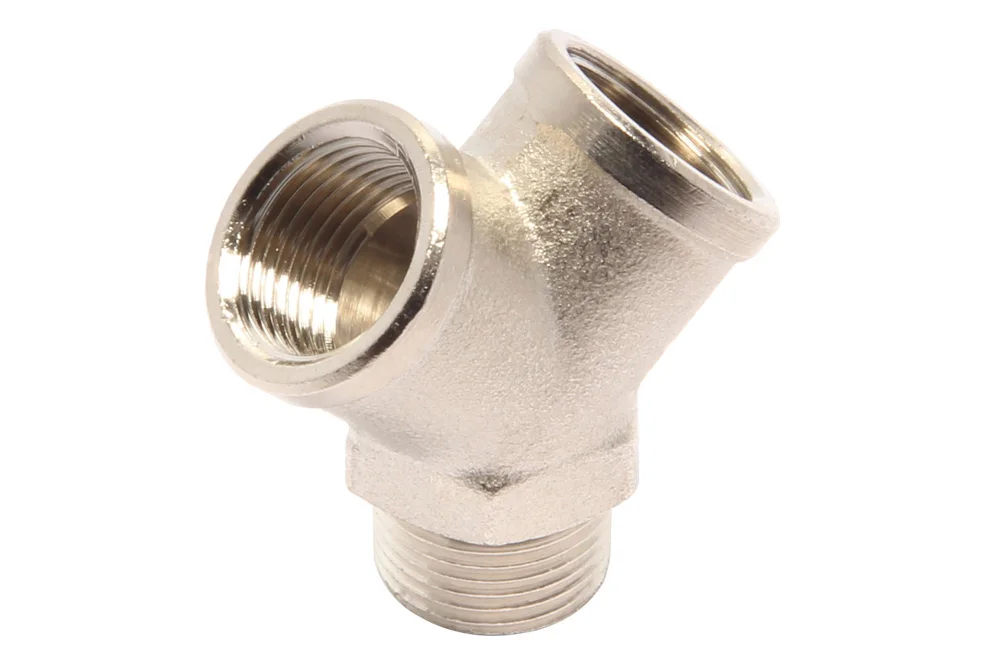

Nickel-plated brass tee “Y” with 1x BSP male / 2x BSP female, type A24

All products, Threaded pneumatic fittings/

Additional information

Material	B – brass (bronze)

Tee “Y”, 2x BSP female thread, 1x BSPT male thread, type A24, intended for connecting pneumatic components (including hoses) to one another. A tight connection usually requires additional sealing: PTFE tape or sealant for a tapered thread, or aluminum or copper washers for a parallel thread. Material: nickel-plated brass. Working pressure: 60 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2124001	Tee Y A24, 1/8" BSP male / 2 x 1/8" BSP female	-	60	In stock	Enquiry
MW-2124002	Tee Y A24, 1/4" BSP male / 2 x 1/4" BSP female	-	60	In stock	Enquiry
MW-2124003	Tee Y A24, 3/8" BSP male / 2 x 3/8" BSP female	-	60	In stock	Enquiry
MW-2124004	Tee Y A24, 1/2" BSP male / 2 x 1/2" BSP female	-	60	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Tee “Y”, 2x BSP female thread, 1x BSPT male thread, type A24, intended for connecting pneumatic components (including hoses) to one another. A tight connection usually requires additional sealing: PTFE tape or sealant for a tapered thread, or aluminum or copper washers for a parallel thread. Material: nickel-plated brass. Working pressure: 60 bar.
