Can PINCLAMP shell bracket, aluminum, type RS withstand 25 bar working pressure with my hose and EN 14420-3 end fittings?

Yes . PINCLAMP shell bracket, aluminum, type RS can withstand 25 bar working pressure provided two conditions are met: 1. The hose you use is rated for 25 bar (or higher) working pressure. 2. The end fittings are EN 14420-3 compliant and properly assembled with that hose. The product description explicitly states: "Working pressure: 25 bar (with appropriately selected hose and end EN 14420-3)." Installation must follow the clamp procedure: close the shell in a vice and drive in the included stainless steel mounting pin to lock it. Also ensure the hose/end dimensions match the clamp size and that the protective flange and corrugated/smooth end geometry are correct for a secure seal. If either the hose or the EN 14420-3 fittings are underspecified or poorly assembled, the assembly may not hold 25 bar.

Does PINCLAMP shell bracket, aluminum, type RS require a specific vice or torque when installed with the stainless steel mounting pin?

PINCLAMP shell bracket, aluminum, type RS does not require a specific branded vice or a special torque value. Installation is performed by closing the shell clamp in a vice and driving in the included stainless steel mounting pin. Use a vise that provides secure, even clamping pressure without deforming the aluminum shell; protect the clamp jaws with soft pads if necessary. Tighten just enough to fully close the clamp around the hose end before inserting the pin-avoid over-compression that could damage the clamp or hose. Ensure the hose and end fittings are appropriate for the stated working pressure (25 bar) and comply with EN 14420-3.

Can PINCLAMP shell bracket, aluminum, type RS be used on corrugated hose ends with a protective flange?

Yes. PINCLAMP shell bracket, aluminum, type RS can be used on corrugated hose ends that have a protective flange. The product description explicitly states it is designed for securing industrial hoses on smooth or corrugated ends with a protective flange. Installation is by closing the shell in a vice and driving in the supplied stainless steel mounting pin; no screw tightening is required. The clampâs material is aluminum and the pin is stainless steel, and it offers smaller external dimensions than screw-type shell clamps. Note the working pressure is 25 bar only when the hose and end fittings are appropriately selected and comply with EN 14420-3. ensure compatibility of your hose assembly and follow the standard and manufacturer instructions for safe use.

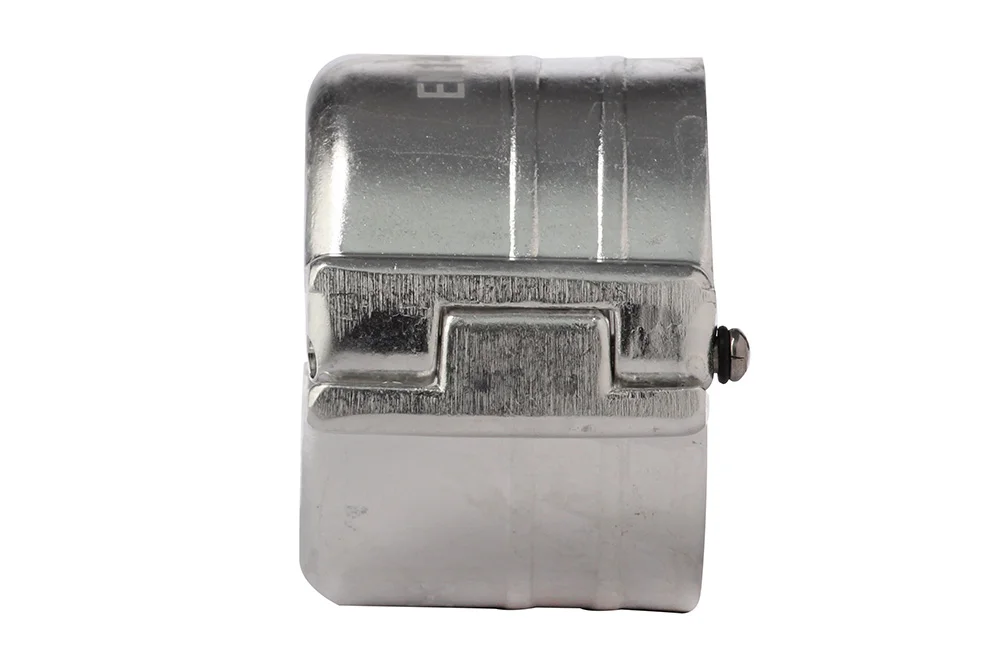

PINCLAMP shell bracket, aluminum, type RS

Additional information

Material	AL – aluminum

Shell clamp designed for securing industrial hoses on smooth or corrugated ends with a protective flange. It is closed by tightening in a vice and driving in a stainless steel mounting pin (included). It features smaller external dimensions than screw-type shell clamps. Material: clamps – aluminum, pin – stainless steel. Working pressure: 25 bar (with appropriately selected hose and end EN 14420-3).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
RS-634050008040	PINCLAMP shell clamp 50x8 mm, Al	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Shell clamp designed for securing industrial hoses on smooth or corrugated ends with a protective flange. It is closed by tightening in a vice and driving in a stainless steel mounting pin (included). It features smaller external dimensions than screw-type shell clamps. Material: clamps – aluminum, pin – stainless steel. Working pressure: 25 bar (with appropriately selected hose and end EN 14420-3).
