Can the Pneumatic throttling valve MRF/V brass, for diverter valve be disassembled quickly for maintenance using the plug-in coupling?

Yes. The Pneumatic throttling valve MRF/V brass, for diverter valve is equipped with a plug-in coupling for easy disassembly of pneumatic hoses, so it can be disassembled quickly for maintenance using the plug-in coupling. Adjustment is made with a screwdriver; note working pressure up to 10 bar and operating temperature â10Â°C to +70Â°C.

Does the Pneumatic throttling valve MRF/V brass, for diverter valve require lubrication for reliable operation?

Pneumatic throttling valve MRF/V brass, for diverter valve: Based on the provided description, no explicit requirement for lubrication is stated. The valve is nickelâplated brass, designed for compressed air (â10 Â°C to +70 Â°C, up to 10 bar) with adjustment by screwdriver and plugâin coupling for hose disassembly. For such brass pneumatic throttling/return fittings used with clean, dry compressed air, routine internal lubrication is typically not necessary and can even attract dust or affect performance unless the system specifically uses lubricated air. However, if the compressed air contains particulates, moisture, or if the installation environment or manufacturer instructions indicate sticking or wear, light compatible lubricant or system air lubrication may be recommended. Final recommendation: follow the manufacturerâs maintenance instructions; if none are provided, do not apply routine internal lubricationâmonitor operation and only use appropriate pneumatic lubricant if performance issues or contamination suggest it.

Pneumatic throttling valve MRF/V brass, for diverter valve

Q: What is the nominal flow of the Pneumatic throttling valve MRF/V brass, for diverter valve at 6.3 bar and how is it adjusted?

The nominal flow of the Pneumatic throttling valve MRF/V brass, for diverter valve at 6.3 bar (in the throttled direction) is the value specified by the manufacturer for that pressure . it is the nominal (rated) flow to be used for sizing and performance reference. The valve is adjusted with a screwdriver: turning the adjustment screw changes the throttling opening and thus the flow rate. The valve is fitted with a plug-in coupling for easy hose removal, is rated to work up to 10 bar and from â10 Â°C to +70 Â°C, and has a nickelâplated brass body.

All products, Pneumatic valves/

Additional information

Material	B – brass (bronze)

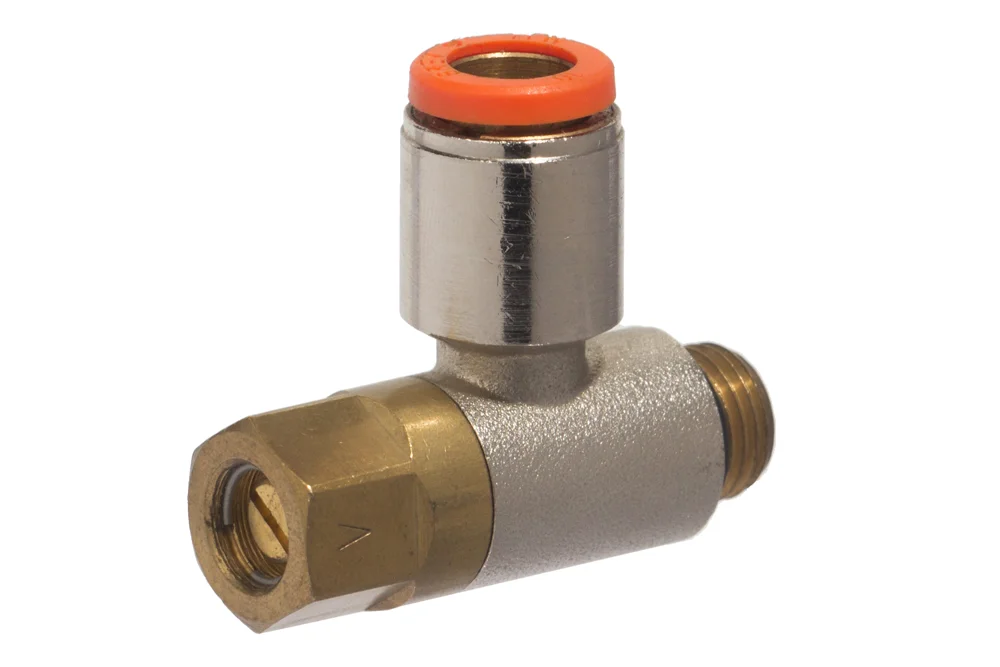

Throttle-return valve type MRF/V for installation in the connections of distribution valves, used in pneumatic systems to regulate the flow rate of compressed air and the direction of flow. Equipped with a plug-in coupling for easy disassembly of pneumatic hoses. Adjustment change using a screwdriver. The specified nominal flow at a pressure of 6.3 bar (in the throttled direction). Working pressure: up to 10 bar. Operating temperature: from -10°C to +70°C. Body material: nickel-plated brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MW-9001106	Throttle check valve for MRF/V valve, 10 mm hose, GZ BSP 1/4"	-	10	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Throttle-return valve type MRF/V for installation in the connections of distribution valves, used in pneumatic systems to regulate the flow rate of compressed air and the direction of flow. Equipped with a plug-in coupling for easy disassembly of pneumatic hoses. Adjustment change using a screwdriver. The specified nominal flow at a pressure of 6.3 bar (in the throttled direction). Working pressure: up to 10 bar. Operating temperature: from -10°C to +70°C. Body material: nickel-plated brass.
