Is the AMMOTECH anhydrous ammonia delivery hose suitable for use with refrigerant R717 in industrial refrigeration systems?

Yes. The AMMOTECH anhydrous ammonia delivery hose is suitable for use with refrigerant R717 (ammonia) in industrial refrigeration systems. It is specifically designed for transport of anhydrous ammonia (liquid and gas), meets EN ISO 5771:2008, has antistatic inner and outer layers (R â¤ 10^6 Î©/m), a highâstrength cord reinforcement with a 5:1 safety factor, working pressure 25 bar, and an operating temperature range of â40Â°C to +55Â°C. The product description explicitly lists industrial refrigeration (refrigerant R717) and filling of large refrigeration systems among its intended applications. Ensure compatibility with your systemâs pressure, temperature, connection fittings and local codes before installation.

Can AMMOTECH anhydrous ammonia delivery hose be used for safely transferring ammonia dissolved in water (ammoniacal water)?

Yes. AMMOTECH anhydrous ammonia delivery hose is specifically designed and certified for transport of anhydrous ammonia (EN ISO 5771:2008) and the product description explicitly states it can also be used for ammonia dissolved in water (ammoniacal water). Its antistatic, chemically resistant inner and outer rubber layers, high-strength cord reinforcement (safety factor 5:1), 25 bar working pressure and â40Â°C to +55Â°C temperature range make it suitable for typical industrial applications such as wastewater treatment, ion-exchange regeneration, rubber/plastics processes and boiler water treatment. Ensure compatibility with your specific ammonia concentration, temperature, pressure and local safety regulations before use.

Can AMMOTECH anhydrous ammonia delivery hose be used for filling large-scale ammonia refrigeration systems?

Yes. AMMOTECH anhydrous ammonia delivery hose is suitable for filling large-scale ammonia refrigeration systems. It is specifically designed for transport of anhydrous ammonia (refrigerant R717) in liquid and gaseous form, with an antistatic inner and outer rubber (R â¤ 10^6 Î©/m) and a high-strength cord reinforcement providing a 5:1 safety factor. The hose meets EN ISO 5771:2008 requirements, has a working pressure of 25 bar, and an operating temperature range of â40Â°C to +55Â°C. properties aligned with typical needs for flexible filling lines in industrial refrigeration. Its chemical-, abrasion-, ozone- and weather-resistant outer cover and microperforation further support durable field use. Note: Ensure system pressure, connection fittings, and local codes are compatible; consult AMMOTECH technical documentation and a qualified refrigeration engineer for installation and safety verification.

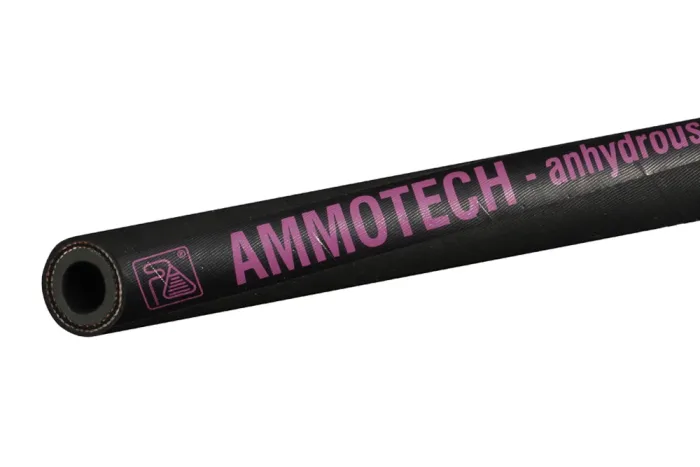

AMMOTECH anhydrous ammonia delivery hose

All products, Chemical hoses/

Additional information

Material	synthetic rubber
Maximum operating temperature [°C]	55
Minimum operating temperature [°C]	-40
Vacuum resistance	no
Reinforcement	synthetic braid

Pressure hose for the transport of anhydrous ammonia in liquid and gaseous form. Inner layer made of thick antistatic rubber (R≤10⁶ Ω/m). Reinforcement with high-strength cord ensures a high safety factor of 5:1. Outer layer made of antistatic rubber (R≤10⁶ Ω/m) resistant to chemicals, abrasion, ozone, and weather conditions, microperforated. Hose compliant with the requirements of standard EN ISO 5771:2008 for rubber hoses for the transport of anhydrous ammonia. The hose is particularly intended for ammonia in the production processes of nitrogen fertilizers, cleaning agents, and for the synthesis of many chemical compounds. It can also be used in other industrial sectors utilizing anhydrous ammonia, such as industrial refrigeration (refrigerant R717 – ammonia, used in large refrigeration systems; flexible hoses are primarily used for filling installations), metallurgy, and many others. The hose can also be used for ammonia dissolved in water – ammoniacal water, widely used in industries such as wastewater treatment (pH regulator), ion-exchange resin regeneration, rubber and plastics industry, and boiler water treatment. Inner layer: black synthetic rubber. Reinforcement: synthetic cord. Outer layer: black synthetic rubber, microperforated. Working pressure: 25 bar. Operating temperature: from -40°C to +55°C.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
IV-AMMOTECH-013	AMMOTECH hose 13x28 mm	12	25
IV-AMMOTECH-016	AMMOTECH hose 16x31 mm	16	25
IV-AMMOTECH-019	AMMOTECH hose 19x34 mm	20	25
IV-AMMOTECH-025	AMMOTECH hose 25x40 mm	25	25
IV-AMMOTECH-032	AMMOTECH hose 32x49 mm	32	25

Pressure hose for the transport of anhydrous ammonia in liquid and gaseous form. Inner layer made of thick antistatic rubber (R≤10⁶ Ω/m). Reinforcement with high-strength cord ensures a high safety factor of 5:1. Outer layer made of antistatic rubber (R≤10⁶ Ω/m) resistant to chemicals, abrasion, ozone, and weather conditions, microperforated. Hose compliant with the requirements of standard EN ISO 5771:2008 for rubber hoses for the transport of anhydrous ammonia. The hose is particularly intended for ammonia in the production processes of nitrogen fertilizers, cleaning agents, and for the synthesis of many chemical compounds. It can also be used in other industrial sectors utilizing anhydrous ammonia, such as industrial refrigeration (refrigerant R717 – ammonia, used in large refrigeration systems; flexible hoses are primarily used for filling installations), metallurgy, and many others. The hose can also be used for ammonia dissolved in water – ammoniacal water, widely used in industries such as wastewater treatment (pH regulator), ion-exchange resin regeneration, rubber and plastics industry, and boiler water treatment. Inner layer: black synthetic rubber. Reinforcement: synthetic cord. Outer layer: black synthetic rubber, microperforated. Working pressure: 25 bar. Operating temperature: from -40°C to +55°C.
