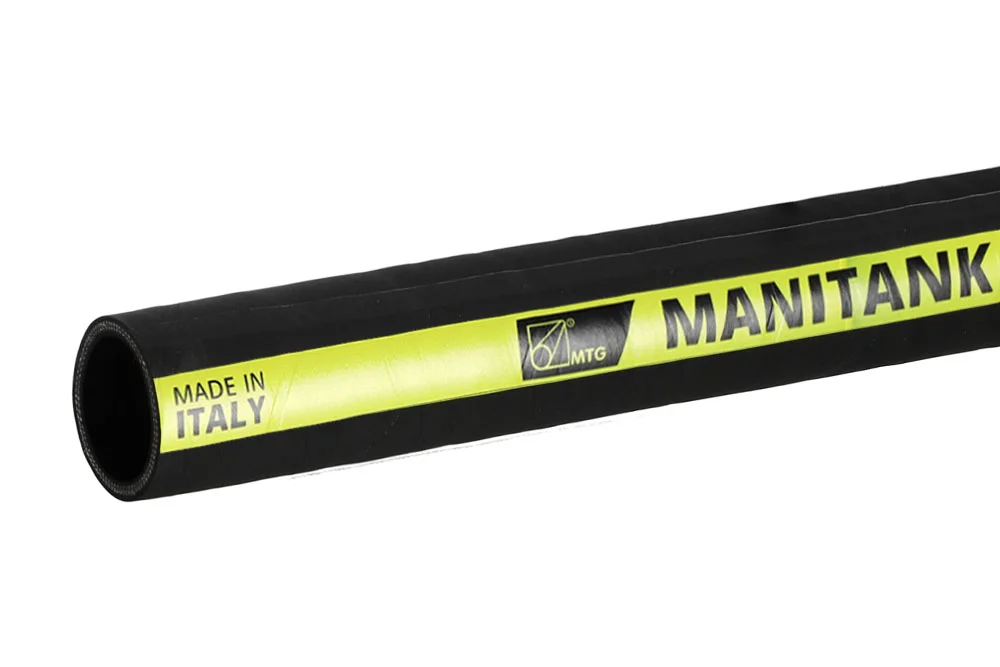

MANITANK AVIO “C” aircraft refueling delivery hose

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

40

Reinforcement

synthetic braid

Very strong fuel transfer hose for aviation fuel, designed for direct pressure refueling of aircraft on the ground. It can also be used in fuel transfer operations in airport tankers – dispensers, in operations not requiring high vacuum. Specifically designed for kerosene (aviation fuel – fuel for turbine aircraft engines, e.g., JET A1), aviation gasoline, and fuels with aromatic hydrocarbon content up to 50%. Can be used on drum reels. Inner layer made of black, smooth, antistatic NBR rubber. Reinforcement with layers of high-strength synthetic cord. Outer layer made of black, antistatic, self-extinguishing chloroprene (CR) rubber, resistant to abrasion, contact with hydrocarbons, and weather conditions. Antistatic outer layer, in accordance with EN ISO 1825 requirements, ensures the required low resistance of the hose between the ends (103 Ω ‹ R ‹ 106 Ω, ISO 8031). Compliant with requirements for aviation fuel hoses (type C/Ω) EN ISO 1825, EN 1361, BS 3158, EI 1529. Inner layer: black NBR rubber. Reinforcement: synthetic cord. Outer layer: black CR rubber. Working pressure: 20 bar. Operating temperature: from -30°C to +70°C (for aviation fuel according to EN 1825).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
MT-MANITANK-AVIO-C-019MANITANK AVIO C hose 19x31 mm2020In stock
Enquiry
MT-MANITANK-AVIO-C-025MANITANK AVIO C hose 25x38.5 mm2520In stock
Enquiry
MT-MANITANK-AVIO-C-032MANITANK AVIO C hose 32x46 mm3220In stock
Enquiry
MT-MANITANK-AVIO-C-038MANITANK AVIO C hose 38x52 mm3820In stock
Enquiry
MT-MANITANK-AVIO-C-050MANITANK AVIO C hose 50x65 mm5020In stock
Enquiry
MT-MANITANK-AVIO-C-063MANITANK AVIO C hose 63.5x81 mm6520In stock
Enquiry
MT-MANITANK-AVIO-C-075MANITANK AVIO C hose 75x93.5 mm7520In stock
Enquiry
MT-MANITANK-AVIO-C-100MANITANK AVIO C hose 100x122 mm10020In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Very strong fuel transfer hose for aviation fuel, designed for direct pressure refueling of aircraft on the ground. It can also be used in fuel transfer operations in airport tankers – dispensers, in operations not requiring high vacuum. Specifically designed for kerosene (aviation fuel – fuel for turbine aircraft engines, e.g., JET A1), aviation gasoline, and fuels with aromatic hydrocarbon content up to 50%. Can be used on drum reels. Inner layer made of black, smooth, antistatic NBR rubber. Reinforcement with layers of high-strength synthetic cord. Outer layer made of black, antistatic, self-extinguishing chloroprene (CR) rubber, resistant to abrasion, contact with hydrocarbons, and weather conditions. Antistatic outer layer, in accordance with EN ISO 1825 requirements, ensures the required low resistance of the hose between the ends (103 Ω ‹ R ‹ 106 Ω, ISO 8031). Compliant with requirements for aviation fuel hoses (type C/Ω) EN ISO 1825, EN 1361, BS 3158, EI 1529. Inner layer: black NBR rubber. Reinforcement: synthetic cord. Outer layer: black CR rubber. Working pressure: 20 bar. Operating temperature: from -30°C to +70°C (for aviation fuel according to EN 1825).

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

40

Reinforcement

synthetic braid
