Is the ISO-B quick-connect socket plug in PVC, DRAGON suitable for outdoor use and resistant to UV and weathering?

ISO-B quick-connect socket plug in PVC, DRAGON Format described as a dust-proof plug made of PVC and colored red is intended to protect connections from contamination. However, the provided description does not state any specific UV-stabilization, weatherproof rating, or outdoor-use certification. PVC parts can offer some general resistance to moisture and outdoor exposure, but without explicit UV inhibitors or weathering treatments the material may degrade over time when exposed to sunlight (UV), temperature cycles and harsh weather, becoming brittle, discolored or cracked. For reliable outdoor use and long-term UV resistance you need confirmation from the manufacturer that the ISO-B quick-connect socket plug in PVC, DRAGON Format is UV-stabilized or rated for weather exposure (e.g., IP rating, UV resistance specification, or outdoor-use endorsement). Recommendation: contact the supplier or check technical datasheet for UV-stability and weathering data; if not confirmed, choose a part specified for outdoor/UV exposure (e.g., UV-stabilized PVC, silicone or UV-resistant thermoplastic).

How do I clean and maintain the ISO-B quick-connect socket plug in PVC, DRAGON to prevent contamination and ensure long-term sealing?

Clean the ISO-B quick-connect socket plug in PVC, DRAGON Format regularly to prevent contamination and maintain sealing. Steps: 1. Inspect: before use check for cuts, cracks, warping or debris on mating faces and sealing surfaces. 2. Remove debris: blow out loose dust with compressed air (dry, oil-free) or gently brush with a soft nylon brush. 3. Clean surfaces: wipe with a lint-free cloth dampened with mild soap solution or 70% isopropyl alcohol; avoid harsh solvents that can degrade PVC. 4. Dry: air-dry or wipe with a clean lint-free cloth; ensure no residues remain in grooves or threads. 5. Lubricate seals: if equipped with O-rings, apply a thin film of manufacturer-recommended silicone lubricant compatible with PVC to preserve elasticity and sealing. 6. Store correctly: keep plug capped in a clean, dry container away from UV and extremes of temperature when not in use. 7. Replace when damaged: any deformation, persistent contamination or hardened seals require replacement to ensure long-term sealing. Regular inspection and gentle cleaning will prevent contamination and extend service life.

Can the ISO-B quick-connect socket plug in PVC, DRAGON withstand exposure to oils and hydraulic fluids without degrading?

The ISO-B quick-connect socket plug in PVC, DRAGON offers basic dust and contamination protection, but PVC alone is not inherently resistant to many oils and hydraulic fluids. Prolonged or repeated exposure to petroleum-based oils, hydraulic fluids, or aggressive solvents can cause PVC to soften, swell, crack or lose mechanical integrity over time, compromising the seal and protective function. Short summary guidance: - Occasional incidental contact with light oils or brief splashes may be tolerated without immediate visible degradation. - Continuous immersion, frequent contact, or exposure to aggressive hydraulic fluids (especially phosphate esters, synthetic fluids, or high-temperature oils) is likely to degrade the PVC, reducing durability and sealing performance. - For reliable long-term resistance to oils and hydraulic fluids, a plug made from oil-resistant elastomers (e.g., nitrile/NBR, Viton/FKM, or specially formulated polyurethane) is recommended instead of standard PVC. If you need a definitive compatibility assessment, provide the specific fluid type(s), temperature range, and exposure duration so compatibility can be checked against chemical-resistance data or material supplier specifications.

ISO-B quick-connect socket plug in PVC, DRAGON

All products, Hydraulic quick couplings/

Additional information

Material	P – material (plastic)

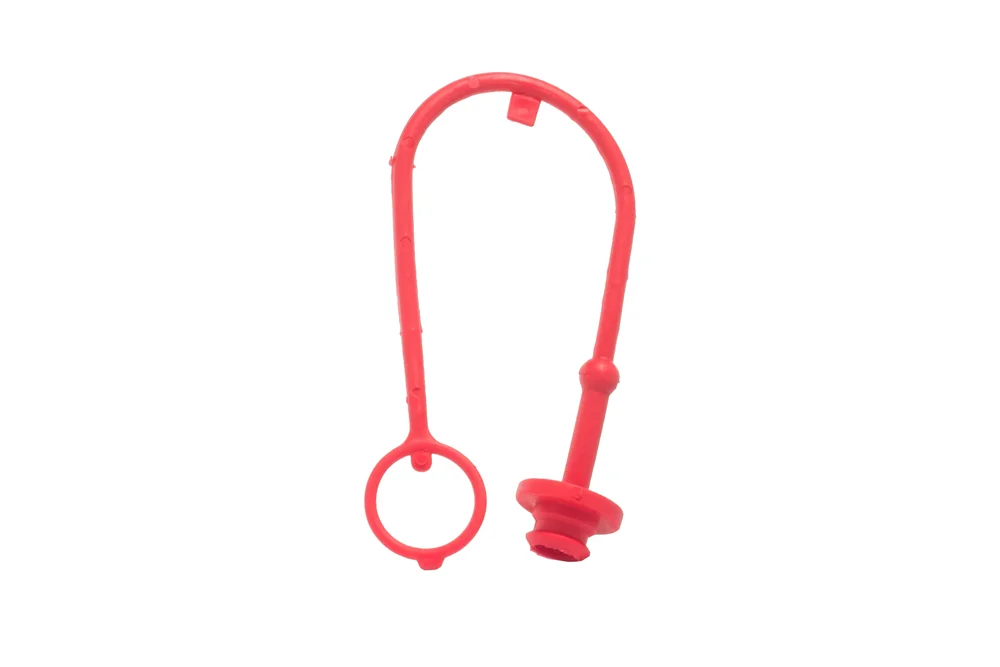

Dust-proof plug for ISO-B quick coupling socket protecting connections from contamination, which may result in damage to components and the ingress of impurities into the system. Material: PVC. Color red.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DP-SPBV-06002	ISO-B socket plug, 1/4" PVC, red	-	-	In stock	Enquiry
DP-SPBV-10002	ISO-B socket plug, 3/8" PVC, red	-	-	In stock	Enquiry
DP-SPBV-13002	ISO-B socket plug, 1/2" PVC, red	-	-	In stock	Enquiry
DP-SPBV-20002	ISO-B socket plug, 3/4" PVC, red	-	-	In stock	Enquiry
DP-SPBV-25002	ISO-B socket plug, 1" PVC, red	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Dust-proof plug for ISO-B quick coupling socket protecting connections from contamination, which may result in damage to components and the ingress of impurities into the system. Material: PVC. Color red.
