Is the Universal quick-connection plug DN1.5 miniature, threaded, brass, series 02KA suitable for use with liquids and inert gases at 35 bar and -20Â°C to +100Â°C?

Yes. The Universal quick-connection plug DN1.5 miniature, threaded, brass, series 02KA is specified for air, inert gases, and liquids, with a working pressure of 35 bar and an operating temperature range of â20 Â°C to +100 Â°C. It is available in brass or nickelâplated brass and comes in external or internal metric thread variants. Based on the provided description, it is suitable for use with liquids and inert gases at 35 bar within the stated temperature range. Note: For specific media compatibility (corrosive liquids, aggressive chemicals) or critical safety applications, verify chemical compatibility with brass/nickel plating and consult the manufacturer or material compatibility charts.

Does the Universal quick-connection plug DN1.5 miniature, threaded, brass, series 02KA come with internal and external metric thread options?

Yes. The Universal quick-connection plug DN1.5 miniature, threaded, brass, series 02KA is available with either internal (female) or external (male) metric threads. It comes in two material variants (uncoated brass and nickel-plated brass), is for air, inert gases and liquids, rated to 35 bar, and usable from -20Â°C to +100Â°C.

Can the Universal quick-connection plug DN1.5 miniature, threaded, brass, series 02KA be used in compact pneumatic systems?

Yes. The Universal quick-connection plug DN1.5 miniature, threaded, brass, series 02KA is suitable for compact pneumatic systems. Its very small dimensions and DN1.5 miniature size make it appropriate where space is limited. It is designed for air and inert gases (as well as liquids), so it functions correctly in pneumatic applications. With a working pressure of 35 bar it supports typical pressures encountered in compact pneumatic circuits. The temperature range (â20 Â°C to +100 Â°C) covers common operating environments for pneumatic components. Available in brass or nickel-plated brass, the materials provide good mechanical strength and corrosion resistance for standard pneumatic use. Note: the product is without valve, so system design should account for valve requirements (shut-off/bleed) if needed.

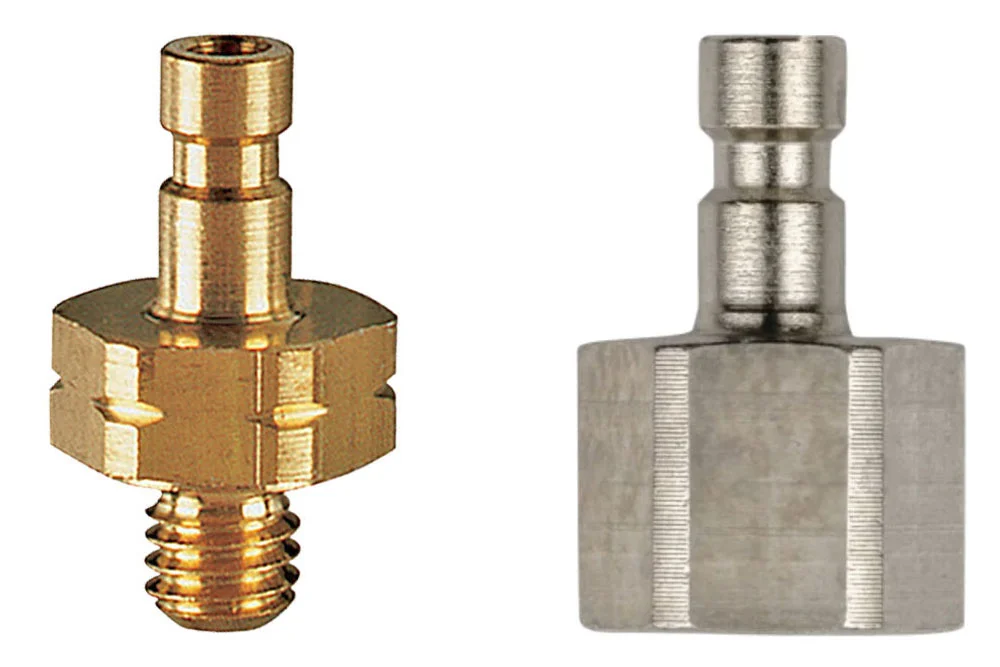

Plug quick coupling DN1.5 Miniature universal, with a thread, brass, series 02KA

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	10

Miniature plug quick coupling DN1.5, without valve, with a metric male or female thread, for air, inert gases and fluids, where small dimensions are required. Available in two variants: made of brass without coating and made of brass coated nickel. Working pressure: 35 bar. Operating temperature: from -20°C to +100°C. Material: brass or brass nickel-plated.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-02SFAM03MXN	Quick coupling plug 02 DN1.5, M3 male, brass nickel-plated	-	35	In stock	Enquiry
RE-02SFAM03MXX	Quick coupling plug 02 DN1.5, M3 male, brass	-	35	In stock	Enquiry
RE-02SFIM03MXN	Quick coupling plug 02 DN1.5, M3 female, brass nickel-plated	-	35	In stock	Enquiry
RE-02SFIM03MXX	Quick coupling plug 02 DN1.5, M3 female, brass	-	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Miniature plug quick coupling DN1.5, without valve, with a metric male or female thread, for air, inert gases and fluids, where small dimensions are required. Available in two variants: made of brass without coating and made of brass coated nickel. Working pressure: 35 bar. Operating temperature: from -20°C to +100°C. Material: brass or brass nickel-plated.
