Is the NiTO 1/2" water quick connector plug with GZ, for gun, brass suitable for use with gasoline or oil-based fluids?

No. The NiTO 1/2" water quick connector plug with GZ, for gun, brass is not suitable for gasoline or oil-based fluids. Although it is made of chrome-plated brass and rated for pressures up to 25 bar and temperatures up to +80Â°C, its sealing material is NBR (nitrile rubber), which is explicitly not compatible with gasoline and oils. Using it with such fluids can cause seal degradation, leaks, and potential failure. Use a connector with an oil-resistant seal (e.g., FKM/Viton) for gasoline or oil applications.

Can the NiTO 1/2" water quick connector plug with GZ, for gun, brass be used safely at temperatures up to +80Â°C?

Yes. The NiTO 1/2" water quick connector plug with GZ, for gun, brass is specified for an operating temperature up to +80Â°C, so it can be used safely at temperatures up to that limit. Note the connector is chrome-plated brass, rated for working pressure up to 25 bar, and uses NBR sealing (not suitable for gasoline and oils), so avoid fluid types and conditions that exceed the material or seal limits.

Does the NiTO 1/2" water quick connector plug with GZ, for gun, brass support use in high-pressure systems up to 25 bar?

Yes. The NiTO 1/2" water quick connector plug with GZ, for gun, brass is rated for use in high-pressure systems up to 25 bar. It is made of chrome-plated brass, has a working pressure specification of up to 25 bar, an operating temperature up to +80Â°C, and uses NBR sealing (not suitable for gasoline and oils). Ensure compatibility with your system fittings and media before use.

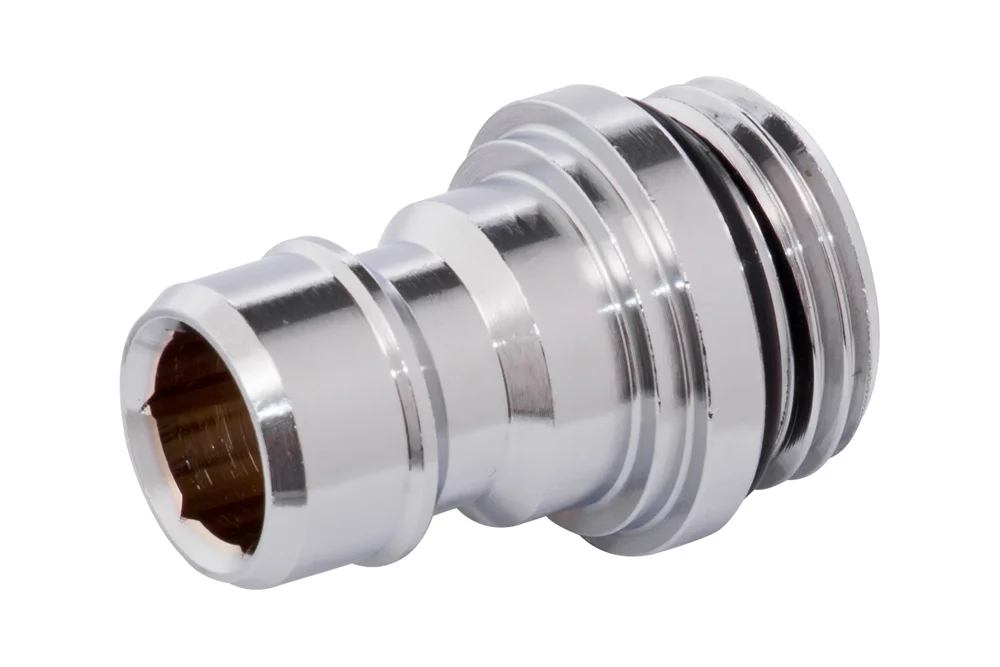

NiTO 1/2″ water quick connector plug with GZ, for gun, brass

All products, Quick couplings for water/

Additional information

Material	B – brass (bronze)

High-quality quick-connect water plug NiTO 1/2″ with external thread, for Heavy Duty gun. Material: chrome-plated brass. Working pressure: up to 25 bar. Operating temperature: up to +80°C. Sealing: NBR (not suitable for gasoline and oils).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
NT-53611A3	1/2" quick coupling plug with 1/2" BSP female thread for gun, chrome-plated brass	-	25	In stock	0 zł		Enquiry
NT-53615A3	1/2" quick coupling plug with 3/4" BSP female thread for gun, chrome-plated brass	-	25	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-quality quick-connect water plug NiTO 1/2″ with external thread, for Heavy Duty gun. Material: chrome-plated brass. Working pressure: up to 25 bar. Operating temperature: up to +80°C. Sealing: NBR (not suitable for gasoline and oils).
