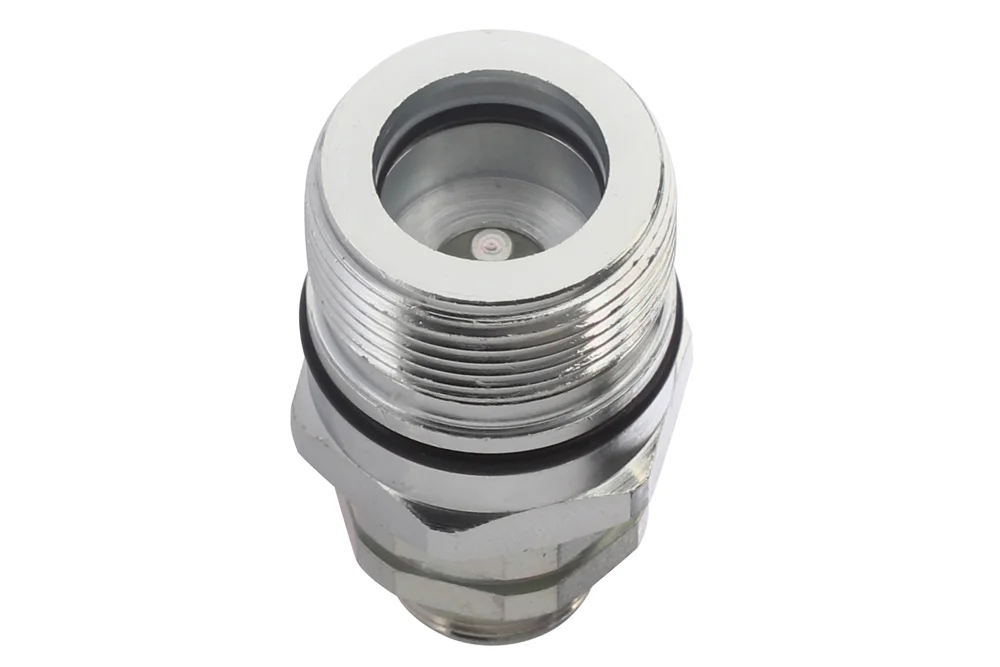

A hydraulic screw-together quick coupling, socket or plug with a shut-off valve, with a metric male thread DIN 2353, light or heavy series. The socket body has an additional O-ring, which prevents unscrewing of the quick coupling in the event of pulsating pressure and vibration. The quick coupling may be connected under a pressure of max. 50 bar. Application: power hydraulics (hydraulic oil). Quick-coupling material: galvanized steel. Sealing: NBR (operating temperature from -25°C to +100°C). Working pressure: up to 450 bar (depending on the quick-coupling size). Standard: ISO 14541. Safety factor 4:1. The flow is given for a pressure drop of 3 bar.
List of product variants
Article number
Product variant name
DN
BAR
Availability
Price
Quantity
Actions
Catalogue
DP-PVV3-0614302
Socket screw-together DN6 with M14x1.5 male (8L), seal NBR
A hydraulic screw-together quick coupling, socket or plug with a shut-off valve, with a metric male thread DIN 2353, light or heavy series. The socket body has an additional O-ring, which prevents unscrewing of the quick coupling in the event of pulsating pressure and vibration. The quick coupling may be connected under a pressure of max. 50 bar. Application: power hydraulics (hydraulic oil). Quick-coupling material: galvanized steel. Sealing: NBR (operating temperature from -25°C to +100°C). Working pressure: up to 450 bar (depending on the quick-coupling size). Standard: ISO 14541. Safety factor 4:1. The flow is given for a pressure drop of 3 bar.
Additional information
Material
CS – steel (cast iron)
