Is the SPEEDFIT protective cap, plastic compatible with all SPEEDFIT fittings and does it prevent accidental disconnection in compressed air systems?

The SPEEDFIT protective cap, plastic is designed to fit SPEEDFIT connections used in compressed air installations. Made of plastic, it provides a protective cover that helps prevent unintended or accidental disconnection by shielding the connection and reducing the likelihood of accidental movement or tampering. Compatibility: The cap is intended for SPEEDFIT connections, but universal fit cannot be guaranteed for every SPEEDFIT fitting type or size.ensure the cap matches the specific SPEEDFIT fitting dimensions used in your system. Prevention of accidental disconnection: The cap reduces the risk of accidental disconnection by covering and protecting the connection, but it is not a mechanical locking device. For applications where positive locking or secondary retention is required (critical compressed air safety or high-vibration environments), use a dedicated locking fitting or additional securing measures alongside the SPEEDFIT protective cap, plastic.

Can SPEEDFIT protective cap, plastic withstand common workshop chemicals and oils used around compressed air fittings?

SPEEDFIT protective cap, plastic offers basic protection against dust, dirt and accidental disconnection in compressed air installations. Being made of general-purpose plastic, it provides limited chemical resistance: it will tolerate mild workshop contaminants and light oils for short periods, but prolonged exposure to strong solvents, aggressive hydrocarbons, concentrated acids or alkalis can cause swelling, softening or degradation. For regular contact with harsh chemicals, prolonged oil immersion, or high-temperature/pressure environments, choose a cap specified for chemical resistance or a material such as EPDM, Viton or nylon rated by the manufacturer. If chemical exposure is occasional and limited, SPEEDFIT protective cap, plastic should perform adequately.

How to install the SPEEDFIT protective cap, plastic on fittings to ensure secure connection?

How to install the SPEEDFIT protective cap, plastic on fittings to ensure secure connection: 1. Prepare the fitting and tubing: depressurize the system and ensure the SPEEDFIT fitting and tube ends are clean, dry and free of debris. Cut the tubing squarely using a proper cutter to avoid burrs. 2. Inspect the protective cap: verify the SPEEDFIT protective cap, plastic is undamaged and the internal diameter matches the fitting. The cap should fit snugly over the release collar or coupling area. 3. Position the cap: slide the SPEEDFIT protective cap, plastic over the tube or fitting end before making the final push-in connection if the design requires. If installing after connection, align the cap so it fully covers the release collar and any exposed joint. 4. Seat the cap fully: push the cap firmly onto the fitting until it clicks or bottoms out. Ensure it covers the locking collar and any exposed tube to prevent accidental access to the release mechanism. 5. Check retention: gently pull and twist the cap to confirm it is secure and will not come off under normal vibration. The cap should resist manual removal and hold the tube in place. 6. Test the connection: re-pressurize the system slowly and inspect for movement or leaks. Confirm the SPEEDFIT protective cap, plastic remains seated and the fitting does not disengage under operating pressure. 7. Maintenance: periodically inspect the SPEEDFIT protective cap, plastic for wear, cracks or loosening, and replace if damaged. For compressed air systems, ensure caps remain in place after maintenance or component replacement. Following these steps ensures the SPEEDFIT protective cap, plastic provides effective protection against unintended disconnection in compressed air installations.

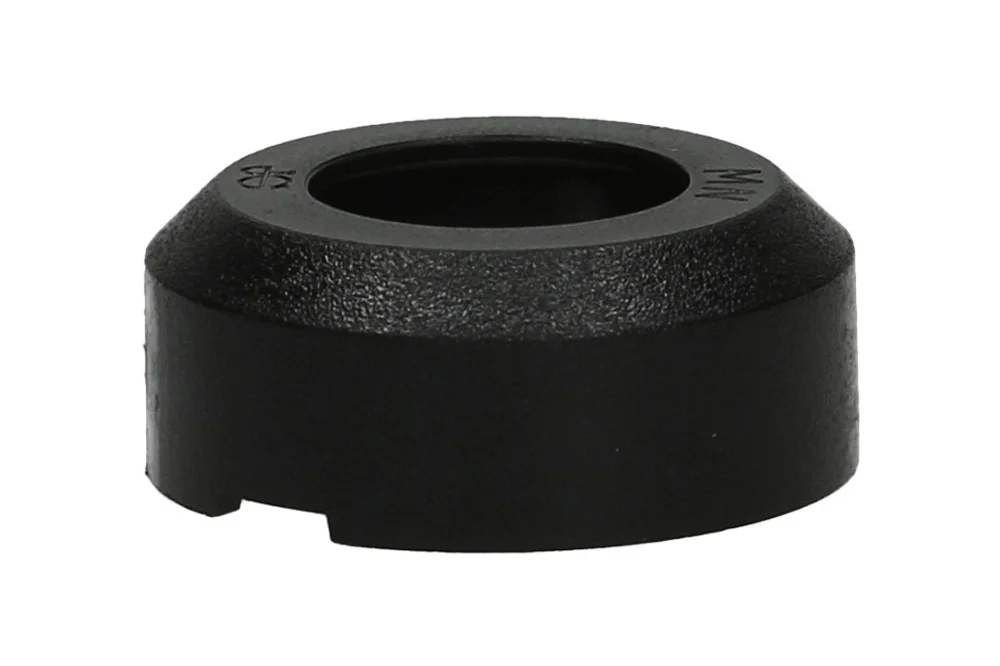

SPEEDFIT protective cap, plastic

All products, Pneumatic piping systems/

Additional information

Material	P – material (plastic)

Protective cap for SPEEDFIT connections preventing unintended disconnection, used in compressed air installations. Material: plastic.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
JG-PM1912E	Protective nut 12 mm	-	-	In stock	Enquiry
JG-PM1915E	Protective nut 15 mm	-	-	In stock	Enquiry
JG-PM1918E	Protective nut 18 mm	-	-	In stock	Enquiry
JG-PM1922E	Protective nut 22 mm	-	-	In stock	Enquiry
