Is the Straight hose end with GW BSP plastic PFA, PVDF, series 1D type EM compatible with sterile pharmaceutical and food-grade cleaning protocols?

Yes. The Straight hose end with GW BSP plastic PFA, PVDF, series 1D type EM is compatible with sterile pharmaceutical and foodâgrade cleaning protocols. Key reasons: - Materials: PFA and PVDF are chemically inert, nonâporous, and widely accepted for pharmaceutical and food contact applications; they resist common sterilants (steam, hydrogen peroxide, peracetic acid, alcohols) and aggressive cleaning agents. - Hygienic design: The flared connection for flexible PFA hoses is described to prevent particle deposition and bacterial accumulation and to eliminate medium leakage, supporting aseptic integrity and cleanability. - Cleanability and pressure: Working pressure up to 10 bar permits use with typical CIP (cleanâinâplace) and SIP (sterilizeâinâplace) procedures conducted under pressure and flow that remove residues and biofilms. Caveats: - Confirm specific sterilization method compatibility (e.g., repeated autoclaving temperatures, duration, or highâtemperature SIP cycles) with the manufacturerâs temperature and chemical exposure limits for the exact component. - Validate the entire assembly (hose, flared joint, seals, and mating BSP fittings) in your specific validated cleaning/sterilization protocol and regulatory requirements (e.g., FDA, EU regulations, GMP) before production use.

Can Straight hose end with GW BSP plastic PFA, PVDF, series 1D type EM withstand repeated autoclaving and CIP/SIP cycles?

Straight hose end with GW BSP plastic PFA, PVDF, series 1D type EM is suitable for environments requiring high cleanliness (laboratories, pharma, food) thanks to PFA/PVDF construction, flared connection preventing particle buildup and leakage, and 10 bar rating. PFA and PVDF are chemically resistant and tolerate repeated steam sterilization; however, autoclaving and SIP/CIP involve high temperature and pressure cycles that can, over many repetitions, affect polymer mechanical properties (softening, stress relaxation, creep) and sealing surfaces. Short- to medium-term repeated autoclaving and standard CIP/SIP cycles are generally acceptable for PFA/PVDF fittings if operated within recommended temperature limits and not exceeding 10 bar, but long-term durability depends on cycle frequency, peak temperatures, cleaning chemicals, and mechanical stresses. For guaranteed lifetime and validation in critical applications, consult the manufacturer for specific autoclave/CIP/SIP cycle limits and perform validation testing.

Does Straight hose end with GW BSP plastic PFA, PVDF, series 1D type EM resist chemical corrosion from aggressive process media?

Yes. Straight hose end with GW BSP plastic PFA, PVDF, series 1D type EM resists chemical corrosion from aggressive process media. Made from PFA and PVDFâboth high-performance fluoropolymersâthis fitting offers excellent chemical resistance across a wide range of acids, bases and solvents. Designed for flexible PFA hoses with a flared connection, it eliminates crevices where particles or bacteria can accumulate and prevents medium leakage, further reducing corrosion risk from trapped residues. With a working pressure of 10 bar, it is suitable for many laboratory, medical, pharmaceutical, chemical and food industry applications where chemical compatibility and hygienic integrity are required.

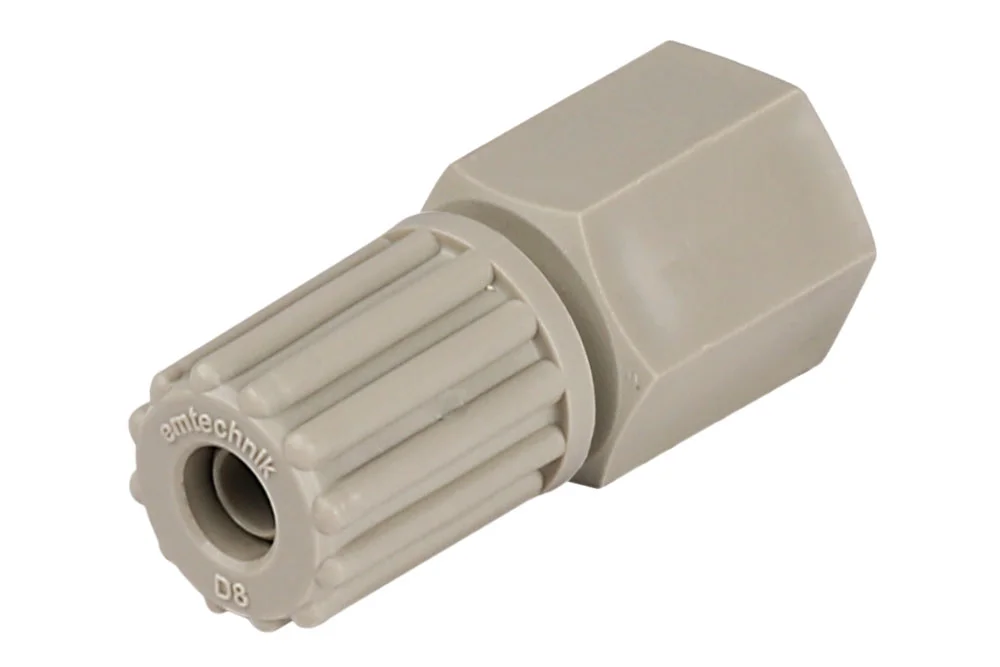

Straight hose fitting with a BSP female thread of PFA, PVDF plastic, 1D series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Straight hose fitting with a BSP female thread 1D series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. It is intended for flexible PFA hoses, whose ends must be thermally expanded for assembly (a so-called flared connection). This solution ensures no particle deposition, no bacterial build-up and elimination of medium leakage. Material: PFA, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1D100FG0318PV	Straight fitting (1D series) with 1/8" BSP female, hose 1/8" x 1/4", PVDF	-	10	In stock	Enquiry
EM-1D100FG1114PF	Straight fitting (1D series) with 1/4" BSP female, hose 1/4" x 3/8", PFA	-	10	In stock	Enquiry
EM-1D100FG1114PV	Straight fitting (1D series) with 1/4" BSP female, hose 1/4" x 3/8", PVDF	-	10	In stock	Enquiry
EM-1D100FG1512PF	Straight fitting (1D series) with 1/2" BSP female, hose 3/8" x 1/2", PFA	-	10	In stock	Enquiry
EM-1D100FG1514PF	Straight fitting (1D series) with 1/4" BSP female, hose 3/8" x 1/2", PFA	-	10	In stock	Enquiry
EM-1D100FG1538PF	Straight fitting (1D series) with 3/8" BSP female, hose 3/8" x 1/2", PFA	-	10	In stock	Enquiry
EM-1D100FG1558PF	Straight fitting (1D series) with 5/8" BSP female, hose 3/8" x 1/2", PFA	-	10	In stock	Enquiry
EM-1D100FG2012PF	Straight fitting (1D series) with 1/2" BSP female, hose 5/8" x 3/4", PFA	-	10	In stock	Enquiry
EM-1D100FG2034PF	Straight fitting (1D series) with 3/4" BSP female, hose 5/8" x 3/4", PFA	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight hose fitting with a BSP female thread 1D series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. It is intended for flexible PFA hoses, whose ends must be thermally expanded for assembly (a so-called flared connection). This solution ensures no particle deposition, no bacterial build-up and elimination of medium leakage. Material: PFA, PVDF. Working pressure: 10 bar.
