Can the Straight hose end with GZ BSP plastic PP, PVDF, series 1C type EM be used with smooth-walled PTFE and PFA hoses at 10 bar pressure?

Yes. Straight hose end with GZ BSP plastic PP, PVDF, series 1C type EM is intended for smooth-walled unreinforced hoses and tubes made from harder materials such as PTFE and PFA, and its specified working pressure is 10 bar. The design.integrated connecting sleeve (hose pushed on), PEEK locking ring with knurled nut, and PTFE sealing ring.provides secure sealing for these materials at the stated pressure. Ensure correct hose inner diameter match to the connecting sleeve, proper assembly (full push-on engagement and nut/locking ring tightened to manufacturer guidance), and verify application-specific factors (temperature, media compatibility, dynamic loads or cyclic pressure) do not reduce allowable pressure.

Is the Straight hose end with GZ BSP plastic PP, PVDF, series 1C type EM compatible with PE and PA smooth-walled hoses?

Straight hose end with GZ BSP plastic PP, PVDF, series 1C type EM is designed for smooth-walled unreinforced hoses and tubes made from harder materials including PA (polyamide) and PE (polyethylene). Therefore it is compatible with PE and PA smooth-walled hoses, provided the hose dimensions match the specified sizes and diameters and operating conditions (working pressure up to 10 bar) are respected. Ensure correct hose outer diameter for secure push-on fit and use of the PEEK locking ring, knurled nut and PTFE sealing ring.

Does the Straight hose end with GZ BSP plastic PP, PVDF, series 1C type EM require specific hose wall thickness or hardness?

Straight hose end with GZ BSP plastic PP, PVDF, series 1C type EM Format does require consideration of hose wall thickness and hardness. It is designed for smoothâwalled, unreinforced hoses and tubes made from relatively hard materials (PTFE, PFA, FEP, PA, PE). Because the connection relies on an integrated sleeve, a PEEK locking ring and knurled nut, and a PTFE sealing ring, the hose must have sufficient wall stiffness to: - slide securely over the connecting sleeve, - be compressed by the locking ring to form a reliable mechanical grip, and - allow the PTFE sealing ring to seal without extruding or deforming excessively. Soft, highly flexible or thinâwalled hoses (very low wall thickness or low Shore hardness) may not achieve adequate mechanical retention or sealing and are therefore not recommended. Conversely, smoothâwalled unreinforced hoses of moderate to high hardness and typical wall thicknesses for PTFE/PFA/FEP/PA/PE tubing used in laboratory, medical and chemical applications are suitable. If you plan to use a specific hose, verify its outer diameter tolerance, wall thickness and hardness (Shore) against the fittingâs nominal bore and manufacturer recommendations; when in doubt, choose a hose with standard wall thickness for its material or consult the supplier for compatibility to ensure safe sealing at the stated working pressure (10 bar).

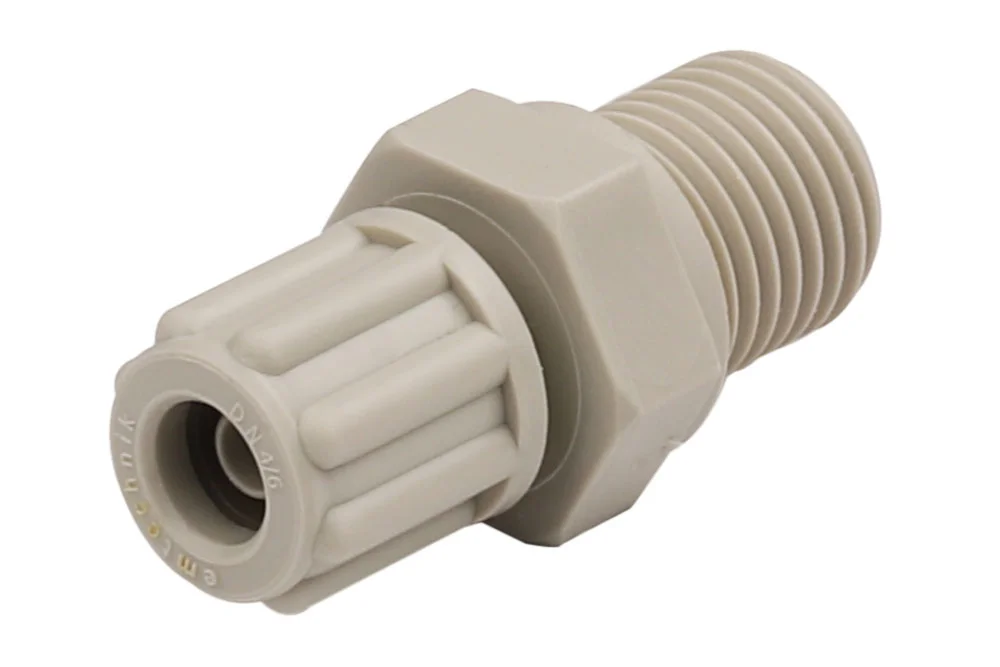

Straight hose end with GZ BSP plastic PP, PVDF, series 1C type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Straight end for hose with GZ BSP series 1C type EM, finds wide application in laboratories, medicine, pharmaceutical, chemical, and food industries. Installation is done by pushing the hose onto the integrated connecting sleeve. Locking occurs via a locking ring made of PEEK and a knurled nut. Sealing is provided by a sealing ring made of PTFE. It is intended for smooth-walled unreinforced hoses and tubes made from harder materials such as PTFE, PFA, FEP, PA, PE. Other sizes and diameters of ends and couplings are available. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1C100MG4018PP	Straight end (series 1C) with GZ BSP 1/8", hose 4x6 mm, polypropylene	4	10	In stock	Enquiry
EM-1C100MG4018PV	Straight end (series 1C) with GZ BSP 1/8", hose 4x6 mm, PVDF	4	10	In stock	Enquiry
EM-1C100MG4214PP	Straight end (series 1C) with GZ BSP 1/4", hose 5x8 mm, polypropylene	5	10	In stock	Enquiry
EM-1C100MG4214PV	Straight end (series 1C) with GZ BSP 1/4", hose 5x8 mm, PVDF	5	10	In stock	Enquiry
EM-1C100MG4314PP	Straight end (series 1C) with GZ BSP 1/4", hose 6x8 mm, polypropylene	6	10	In stock	Enquiry
EM-1C100MG4314PV	Straight end (series 1C) with GZ BSP 1/4", hose 6x8 mm, PVDF	6	10	In stock	Enquiry
EM-1C100MG4512PP	Straight end (series 1C) with GZ BSP 1/2", hose 8x10 mm, polypropylene	8	10	In stock	Enquiry
EM-1C100MG4512PV	Straight end (series 1C) with GZ BSP 1/2", hose 8x10 mm, PVDF	8	10	In stock	Enquiry
EM-1C100MG4538PP	Straight end (series 1C) with GZ BSP 3/8", hose 8x10 mm, polypropylene	8	10	In stock	Enquiry
EM-1C100MG4538PV	Straight end (series 1C) with GZ BSP 3/8", hose 8x10 mm, PVDF	8	10	In stock	Enquiry
EM-1C100MG4812PP	Straight end (series 1C) with GZ BSP 1/2", hose 10x12 mm, polypropylene	10	10	In stock	Enquiry
EM-1C100MG4812PV	Straight end (series 1C) with GZ BSP 1/2", hose 10x12 mm, PVDF	10	10	In stock	Enquiry
EM-1C100MG4838PP	Straight end (series 1C) with GZ BSP 3/8", hose 10x12 mm, polypropylene	10	10	In stock	Enquiry
EM-1C100MG4838PV	Straight end (series 1C) with GZ BSP 3/8", hose 10x12 mm, PVDF	10	10	In stock	Enquiry
EM-1C100MG5112PP	Straight end (series 1C) with GZ BSP 1/2", hose 12x14 mm, polypropylene	12	10	In stock	Enquiry
EM-1C100MG5112PV	Straight end (series 1C) with GZ BSP 1/2", hose 12x14 mm, PVDF	12	10	In stock	Enquiry
EM-1C100MG5312PP	Straight end (series 1C) with GZ BSP 1/2", hose 14x16 mm, polypropylene	14	10	In stock	Enquiry
EM-1C100MG5512PV	Straight end (series 1C) with GZ BSP 1/2", hose 14x16 mm, PVDF	14	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight end for hose with GZ BSP series 1C type EM, finds wide application in laboratories, medicine, pharmaceutical, chemical, and food industries. Installation is done by pushing the hose onto the integrated connecting sleeve. Locking occurs via a locking ring made of PEEK and a knurled nut. Sealing is provided by a sealing ring made of PTFE. It is intended for smooth-walled unreinforced hoses and tubes made from harder materials such as PTFE, PFA, FEP, PA, PE. Other sizes and diameters of ends and couplings are available. Material: polypropylene, PVDF. Working pressure: 10 bar.
