Is the Hose end straight with GZ BSP, plastic PP, PVDF, 1W+ series type EM compatible with corrugated and unreinforced PTFE hoses without tools?

Yes. Hose end straight with GZ BSP, plastic PP, PVDF, 1W+ series type EM is compatible with corrugated and unreinforced PTFE hoses and can be assembled multiple times without tools. The 1W+ series specifically does not require smoothing of the hose-end grooves, is intended for flexible corrugated hoses with a smooth inner surface and unreinforced PTFE hoses, and is rated for a working pressure of 4 bar.

Can Hose end straight with GZ BSP, plastic PP, PVDF, 1W+ series type EM withstand chemical exposure in pharmaceutical and food applications?

Hose end straight with GZ BSP, plastic PP, PVDF, 1W+ series type EM can be used in pharmaceutical and food applications with many chemical exposures, but with limitations. The product is explicitly designed for laboratories, medicine, pharmaceutical, chemical, and food industries, and is made from polypropylene (PP) or PVDF-materials broadly compatible with many chemicals and commonly accepted for such sectors. It is intended for flexible corrugated hoses with smooth inner surfaces and unreinforced PTFE hoses; Series 1W+ requires no groove smoothing and allows multiple assemblies without tools. Working pressure is limited to 4 bar. Before use in a specific pharmaceutical or food process, verify chemical compatibility of PP or PVDF with the exact media, process temperatures, regulatory/cleaning requirements (e.g., FDA/USP/EC approvals), and suitability of working pressure and hose construction for your operating conditions.

Does the Hose end straight with GZ BSP, plastic PP, PVDF, 1W+ series type EM allow repeated disassembly and reassembly without tools?

Yes. Hose end straight with GZ BSP, plastic PP, PVDF, 1W+ series type EM allows repeated disassembly and reassembly without tools. The design explicitly permits multiple assemblies without tools, is intended for flexible corrugated hoses with a smooth inner surface and unreinforced PTFE hoses, and uses polypropylene or PVDF with a working pressure of 4 bar.

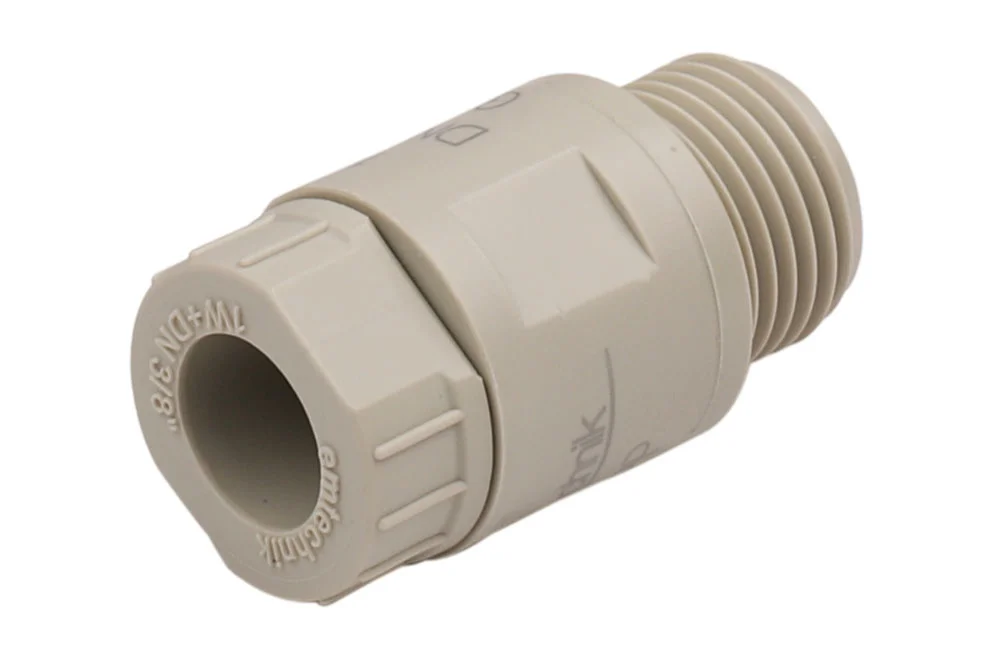

Straight hose fitting with a BSP male thread, of PP, PVDF plastic, 1W+ series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Straight hose fitting with a BSP male thread, type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. The design allows repeated assembly without the need for tools. The 1W+ series does not require smoothing the corrugations at the hose ends. It is intended for flexible, corrugated hoses with a smooth internal surface and unreinforced PTFE hoses. Material: polypropylene, PVDF. Working pressure: 4 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1WP100MG1114PV	Straight fitting (1W series+) with 1/4" BSP male, serrated hose 1/4", PVDF	-	4	In stock	Enquiry
EM-1WP100MG1538PP	Straight fitting (1W series+) with 3/8" BSP male, serrated hose 3/8", polypropylene	-	4	In stock	Enquiry
EM-1WP100MG1538PV	Straight fitting (1W series+) with 3/8" BSP male, serrated hose 3/8", PVDF	-	4	In stock	Enquiry
EM-1WP100MG1812PP	Straight fitting (1W series+) with 1/2" BSP male, serrated hose 1/2", polypropylene	-	4	In stock	Enquiry
EM-1WP100MG1812PV	Straight fitting (1W series+) with 1/2" BSP male, serrated hose 1/2", PVDF	-	4	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight hose fitting with a BSP male thread, type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. The design allows repeated assembly without the need for tools. The 1W+ series does not require smoothing the corrugations at the hose ends. It is intended for flexible, corrugated hoses with a smooth internal surface and unreinforced PTFE hoses. Material: polypropylene, PVDF. Working pressure: 4 bar.
