Is Straight screw connection RI-BE, stainless steel compatible with BSP external (DIN 3852 E gasket) and BSP internal thread sealing?

Yes. Straight screw connection RI-BE, stainless steel is compatible with both BSP external threads sealed with a DIN 3852 type E elastomer gasket (rectangular cross-section) and BSP internal threads using thread sealing. The RI-BE type per DIN 2353 is specifically offered with external BSP thread (sealing per DIN 3852 E) and internal BSP thread (thread sealing), and is available in L (light) and S (heavy) series in AISI 316 stainless steel.

Can Straight screw connection RI-BE, stainless steel be used in corrosive marine environments with BSP external (DIN 3852 E gasket) and BSP internal thread sealing?

Yes. Straight screw connection RI-BE, stainless steel (AISI 316) is suitable for corrosive marine environments thanks to AISI 316âs enhanced corrosion resistance versus ferritic/austenitic steels. The RI-BE design with BSP external thread sealed by a DIN 3852 E elastomer gasket and BSP internal thread sealing provides reliable sealing in typical hydraulic and fluid systems. Choose the S (heavy) series for higher mechanical loads or aggressive service; L (light) is acceptable for lower-pressure/light-duty applications. Ensure elastomer compatibility with the specific marine media (saltwater, fuels, lubricants) and consider additional measures (protective coatings, regular inspection, and corrosion allowances) for long-term exposure in highly aggressive or splash-prone marine conditions.

Does Straight screw connection RI-BE, stainless steel support high-pressure applications with BSP external (DIN 3852 E) and BSP internal sealing?

Straight screw connection RI-BE, stainless steel can be used in high-pressure applications, but suitability depends on series (L or S), specific pressure ratings and sealing arrangement. Key points from the DIN 2353 description: - Threading and sealing: The external BSP thread uses DIN 3852 type E sealing (elastomer gasket with rectangular cross-section) and the internal BSP thread uses thread sealing. This combination provides reliable sealing when properly assembled and when gasket and thread quality match the application requirements. - Material: AISI 316 stainless steel offers high corrosion resistance and good mechanical strength, favorable for demanding and high-pressure environments. - Series (pressure capacity): The product is available in L (light) and S (heavy) series. The S (heavy) series is intended for higher pressure ratings than the L (light) series. Exact maximum working pressures must be confirmed from manufacturer data or DIN 2353 pressure tables for the specific size and series. - Temperature and gasket limits: Elastomer gasket performance limits (temperature, chemical compatibility, aging) affect allowable pressure and long-term sealing reliability. At elevated temperatures or aggressive media, gasket selection can reduce achievable pressure. Conclusion: Straight screw connection RI-BE, stainless steel can support high-pressure use when the appropriate series (typically S/heavy) and correct gasket/thread sealing are specified and installed per DIN 2353/manufacturer specifications. Verify the exact pressure ratings, temperature and media compatibility, and assembly torque from the manufacturer or DIN 2353 tables for your specific size and application before use.

Fitting straight screw-in RI-BE, stainless steel

Additional information

Material	SS – stainless steel

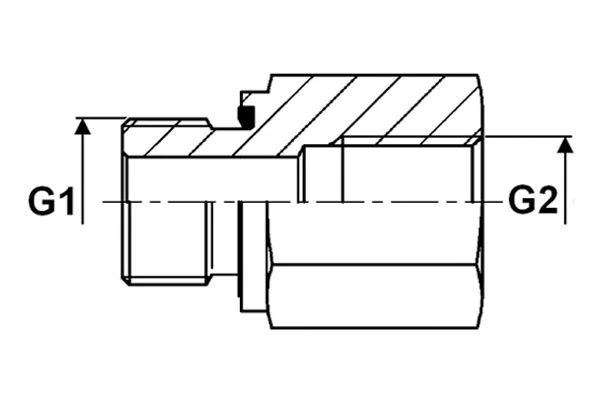

Fitting DIN 2353 straight screw-in, type RI-BE with BSP male thread (DIN 3852 type E sealing – elastomer gasket with a rectangular cross-section) and with BSP female thread (sealing on the thread). Available as: L (series light), S (series heavy). Material: AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-RI-02-04-BE-SS	Fitting 1/8" BSP male, seal E, 1/4" BSP female, AISI 316	-	630	In stock	Enquiry
HD-RI-04-02-BE-SS	Fitting 1/4" BSP male, seal E, 1/8" BSP female, AISI 316	-	630	In stock	Enquiry
HD-RI-04-06-BE-SS	Fitting 1/4" BSP male, seal E, 3/8" BSP female, AISI 316	-	630	In stock	Enquiry
HD-RI-04-08-BE-SS	Fitting 1/4" BSP male, seal E, 1/2" BSP female, AISI 316	-	630	In stock	Enquiry
HD-RI-06-02-BE-SS	Fitting 3/8" BSP male, seal E, 1/8" BSP female, AISI 316	-	630	In stock	Enquiry
HD-RI-06-04-BE-SS	Fitting 3/8" BSP male, seal E, 1/4" BSP female, AISI 316	-	630	In stock	Enquiry
HD-RI-06-08-BE-SS	Fitting 3/8" BSP male, seal E, 1/2" BSP female, AISI 316	-	630	In stock	Enquiry
HD-RI-08-04-BE-SS	Fitting 1/2" BSP male, seal E, 1/4" BSP female, AISI 316	-	630	In stock	Enquiry
HD-RI-08-06-BE-SS	Fitting 1/2" BSP male, seal E, 3/8" BSP female, AISI 316	-	630	In stock	Enquiry
HD-RI-08-12-BE-SS	Fitting 1/2" BSP male, seal E, 3/4" BSP female, AISI 316	-	400	In stock	Enquiry
HD-RI-12-06-BE-SS	Fitting 3/4" BSP male, seal E, 3/8" BSP female, AISI 316	-	400	In stock	Enquiry
HD-RI-12-08-BE-SS	Fitting 3/4" BSP male, seal E, 1/2" BSP female, AISI 316	-	400	In stock	Enquiry
HD-RI-12-16-BE-SS	Fitting 3/4" BSP male, seal E, 1" BSP female, AISI 316	-	400	In stock	Enquiry
HD-RI-16-04-BE-SS	Fitting 1" BSP male, seal E, 1/4" BSP female, AISI 316	-	400	In stock	Enquiry
HD-RI-16-06-BE-SS	Fitting 1" BSP male, seal E, 3/8" BSP female, AISI 316	-	400	In stock	Enquiry
HD-RI-16-08-BE-SS	Fitting 1" BSP male, seal E, 1/2" BSP female, AISI 316	-	400	In stock	Enquiry
HD-RI-16-12-BE-SS	Fitting 1" BSP male, seal E, 3/4" BSP female, AISI 316	-	400	In stock	Enquiry
HD-RI-20-12-BE-SS	Fitting 1.1/4" BSP male, seal E, 3/4" BSP female, AISI 316	-	400	In stock	Enquiry
HD-RI-20-16-BE-SS	Fitting 1.1/4" BSP male, seal E, 1" BSP female, AISI 316	-	400	In stock	Enquiry
HD-RI-24-16-BE-SS	Fitting 1.1/2" BSP male, seal E, 1" BSP female, AISI 316	-	315	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 straight screw-in, type RI-BE with BSP male thread (DIN 3852 type E sealing – elastomer gasket with a rectangular cross-section) and with BSP female thread (sealing on the thread). Available as: L (series light), S (series heavy). Material: AISI 316.
