Does the T-piece carbon steel type TSM require specific hose end fittings or clamps for braiding compatibility?

Yes. The T-piece carbon steel type TSM requires attention to hose ends and clamping when used with externally steel-braided hoses. Because itâs designed for low-pressure rubber, non-reinforced and textile-reinforced plastic hoses that may be covered by an external steel braid, the braid must be properly terminated and secured so it cannot fray or interfere with the mechanical seal at the hose-to-fitting junction. Typical requirements: - Hose end fitting/clamp type: use hose ends or ferrules designed for braided hoses (braid-compatible ferrules or crimp collars) or clamps that compress the hose body behind a properly flared or ferruled braid termination. Standard worm-drive clamps are generally insufficient unless the braid is first secured under a dedicated braid clamp or ferrule. - Braid termination: the external steel braid should be folded back and captured under a braid ferrule, clamp saddle, or an appropriate hose end that mechanically retains the braid, preventing it from slipping over the barb of the T-piece. - Seal area: ensure the rubber or plastic hose seats fully on the T-piece barb and that the braid termination does not intrude into the sealing area. Use a clamp that provides even compression without cutting the braid or hose. - Material compatibility: carbon steel, galvanized fittings are acceptable, but avoid galvanic corrosion issues in dissimilar-metal assemblies; consider matching materials or insulation if fluids/environment demand it. In short: use braid-compatible ferrules or clamps and proper braid termination when attaching steel-braided hoses to the T-piece carbon steel type TSM to ensure secure, leak-free connections.

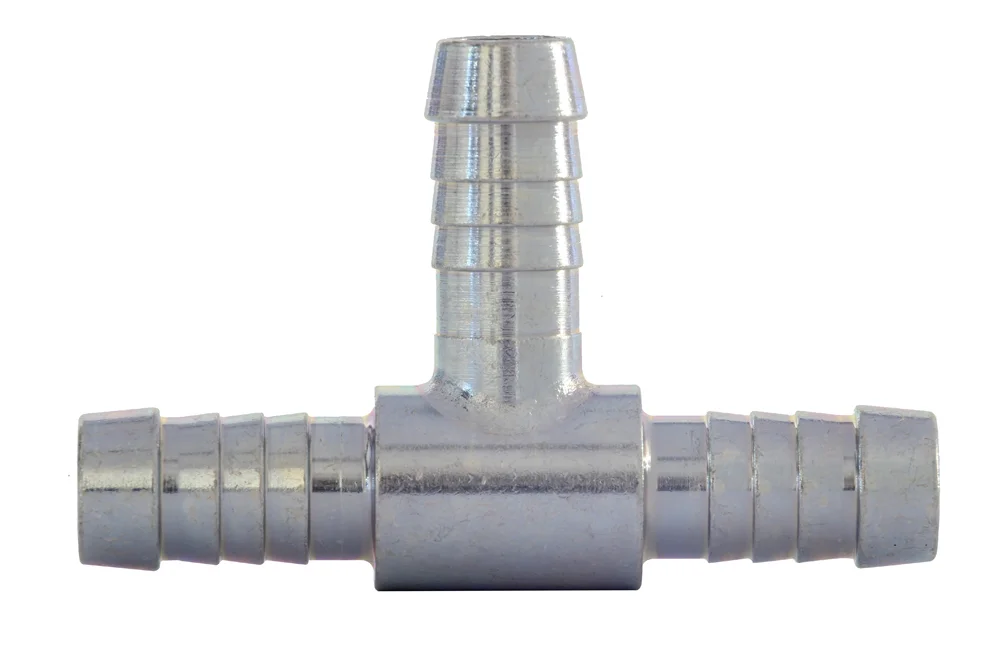

T-piece, carbon steel, type TSM

Q: Is the TSM T-piece in carbon steel suitable for low-pressure rubber and textile-reinforced plastic hoses with an external steel braid?

Yes. The TSM T-piece, carbon steel, type TSM is suitable for low-pressure rubber and textile-reinforced plastic hoses with an external steel braid. The product description explicitly states it is designed for low-pressure rubber and non-reinforced and textile-reinforced plastic hoses with an external steel braid and is commonly used in flexible hoses for sanitary fittings, fuel systems, and air systems. Carbon steel construction (galvanized) provides adequate strength and corrosion resistance for typical low-pressure applications. Ensure hose dimensions, pressure ratings, and compatibility with galvanization are verified against your system requirements before installation.

Q: Can the type TSM T-piece in carbon steel be used with flexible hoses in sanitary, fuel, and air systems?

Yes. The T-piece, carbon steel, type TSM is suitable for use with flexible hoses in sanitary, fuel, and air systems. It is specifically designed for low-pressure rubber, non-reinforced and textile-reinforced plastic hoses with an external steel braid, making it appropriate for common flexible-hose applications in sanitary fittings, fuel systems and air systems. Material: carbon steel, galvanized.

All products, Low-pressure fittings and adapters/

Additional information

Material	CS – steel (cast iron)

TSM type tee fitting designed for low-pressure rubber and non-reinforced and textile-reinforced plastic hoses, with an external steel braid. Commonly used in flexible hoses for sanitary fittings, fuel systems, air systems, etc. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EC-127829	TSM DN2 tee, 4.5 mm hose	4	30	In stock	Enquiry
EC-127830	TSM DN4 tee, 5.5 mm hose	6	30	In stock	Enquiry
EC-127831	TSM DN6 tee, 7.5 mm hose	8	30	In stock	Enquiry
EC-127832	TSM DN8 tee, 9.5 mm hose	10	30	In stock	Enquiry
EC-127833	TSM DN10 tee, 11.5 mm hose	12	30	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

TSM type tee fitting designed for low-pressure rubber and non-reinforced and textile-reinforced plastic hoses, with an external steel braid. Commonly used in flexible hoses for sanitary fittings, fuel systems, air systems, etc. Material: carbon steel, galvanized.
