Is the TrÃ³jnik gwintowany GZ / GZ / GZ BSP z tworzywa PP, PVDF, seria 3F typ EM suitable for use in food and pharmaceutical applications?

Yes. The TrÃ³jnik gwintowany GZ / GZ / GZ BSP z tworzywa PP, PVDF, seria 3F typ EM is suitable for food and pharmaceutical applications. The product description explicitly lists laboratories, medicine, pharmaceutical, chemical, and food industries among its intended uses, and it is made from materials commonly accepted for such sectors: polypropylene (PP) and polyvinylidene fluoride (PVDF). Both materials are widely used for chemical resistance, inertness and cleanliness required in pharmaceutical and food handling. The fittingâs working pressure of 10 bar is adequate for many process and fluid-transfer applications in these industries. Note: For regulatory compliance (e.g., FDA, EU food contact, pharmacopeia) and specific process conditions (temperature, cleaning agents, sterilization methods), verify material certifications and supplier documentation before use.

Can TrÃ³jnik gwintowany GZ / GZ / GZ BSP z tworzywa PP, PVDF, seria 3F typ EM withstand sterilization processes used in labs and medical facilities?

TrÃ³jnik gwintowany GZ / GZ / GZ BSP z tworzywa PP, PVDF, seria 3F typ EM can generally tolerate common sterilization methods, but suitability depends on material: - PVDF: good chemical and thermal resistance; compatible with many lab/medical sterilization processes (autoclaving at moderate temperatures, chemical sterilants like peroxide, alcohols, and some solvents). Check max temperature limits before repeated autoclaving. - PP: limited heat resistance compared with PVDF; can withstand some chemical sterilants and lower-temperature sterilization cycles but is more vulnerable to high-temperature autoclaving and aggressive chemicals. Working pressure 10 bar is unrelated to sterilization resistance. For critical medical/lab use, confirm with manufacturer data (max service temperature, compatibility with specific sterilization method and cycle frequency) before deployment.

Does TrÃ³jnik gwintowany GZ / GZ / GZ BSP z tworzywa PP, PVDF, seria 3F typ EM resist common chemical reagents used in labs?

Yes. The TrÃ³jnik gwintowany GZ / GZ / GZ BSP z tworzywa PP, PVDF, seria 3F typ EM is resistant to a wide range of common laboratory chemical reagents. Materials listed. polypropylene (PP) and polyvinylidene fluoride (PVDF). are widely used for chemical handling because they offer good chemical compatibility, low reactivity, and corrosion resistance. Typical resistance: - PP: Resistant to acids (dilute and many concentrated), alkalis, alcohols, aqueous salt solutions, many organic solvents (but limited with strong oxidizers and some chlorinated solvents at elevated temperature). - PVDF: Broad resistance to acids, alkalis, halogenated solvents, aromatic and aliphatic hydrocarbons; better chemical and temperature resistance than PP and suitable for more aggressive media. Applications and limits: - Suitable for acids (e.g., HCl, H2SO4 dilute to moderate concentrations), bases (NaOH solutions), salts, most solvents used in labs, and many process chemicals. - Avoid strong oxidizers (e.g., concentrated nitric acid, hot chromic acid) with PP; PVDF performs better but check concentration/temperature. - Check compatibility for highly aggressive organics, high-temperature or high-pressure conditions beyond the stated 10 bar working pressure. Recommendation: For specific reagents, concentrations, temperatures, and exposure times, verify compatibility using chemical resistance charts for PP and PVDF or consult the manufacturerâs datasheet to ensure safe use.

Trójnik gwintowany GZ / GZ / GZ BSP z tworzywa PP, PVDF, seria 3F typ EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

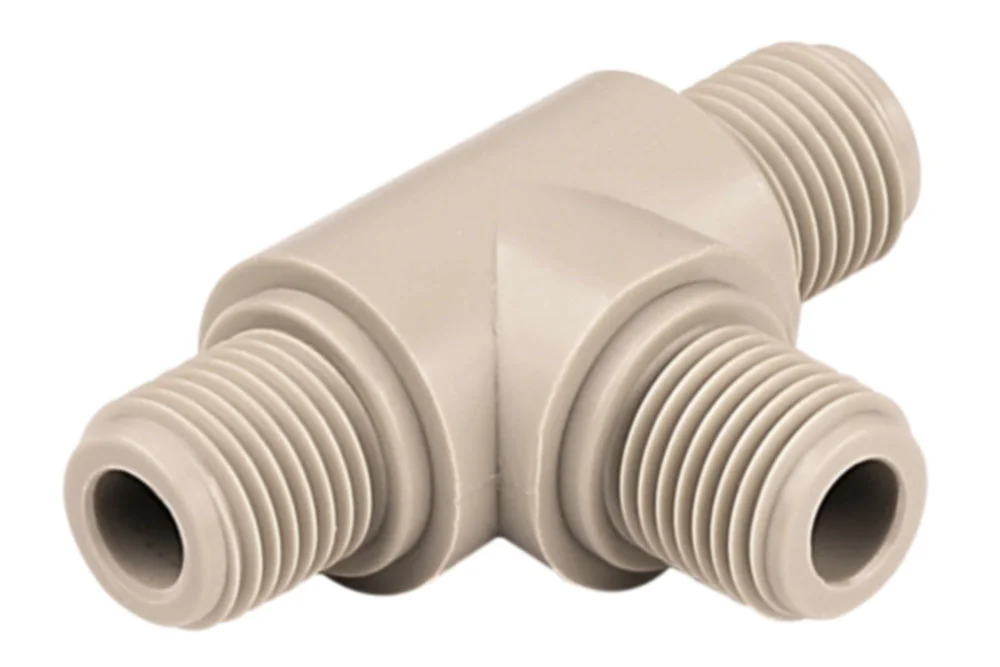

Threaded “T” fitting with three external BSP threads, series 3F type EM, has wide applications in laboratories, medicine, pharmaceutical, chemical, and food industries. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-3F333GG12PP	Tee (series 3F) with GZ BSP 1/2", polypropylene	-	10	In stock	Enquiry
EM-3F333GG12PV	Tee (series 3F) with GZ BSP 1/2", PVDF	-	10	In stock	Enquiry
EM-3F333GG14PP	Tee (series 3F) with GZ BSP 1/4", polypropylene	-	10	In stock	Enquiry
EM-3F333GG14PV	Tee (series 3F) with GZ BSP 1/4", PVDF	-	10	In stock	Enquiry
EM-3F333GG18PP	Tee (series 3F) with GZ BSP 1/8", polypropylene	-	10	In stock	Enquiry
EM-3F333GG18PV	Tee (series 3F) with GZ BSP 1/8", PVDF	-	10	In stock	Enquiry
EM-3F333GG38PP	Tee (series 3F) with GZ BSP 3/8", polypropylene	-	10	In stock	Enquiry
EM-3F333GG38PV	Tee (series 3F) with GZ BSP 3/8", PVDF	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Threaded “T” fitting with three external BSP threads, series 3F type EM, has wide applications in laboratories, medicine, pharmaceutical, chemical, and food industries. Material: polypropylene, PVDF. Working pressure: 10 bar.
