Is the TRICLOVER flange end for welding, stainless steel, type TKS compatible with CIP/SIP procedures at 16 bar?

Yes . the TRICLOVER flange end for welding, stainless steel, type TKS is compatible with CIP (Cleaning-In-Place) and SIP (Sterilization-In-Place) procedures at 16 bar, based on the provided description. Rationale: - Design & standard: Itâs a TRICLOVER flange end with a stub for welding according to DIN 32676, a standard widely used in hygienic process systems and compatible with CIP/SIP installations. - Material: AISI 316 stainless steel offers excellent chemical resistance and high-temperature performance suitable for cleaning agents and steam sterilization. - Pressure rating: The specified working pressure of 16 bar supports typical CIP/SIP operating pressures, including steam sterilization cycles that may involve pressurization. - Application scope: Itâs intended for pharmaceutical, biotechnology, cosmetic, food, and chemical industries and for liquid and high-viscosity media . sectors that routinely use CIP/SIP, implying suitability for such procedures. - Hygienic suitability: The welded stub configuration (per DIN 32676) enables smooth, crevice-free welds and hygienic internal surfaces when properly fabricated, which is critical for effective CIP/SIP. Caveat: Final compatibility in a specific installation depends on correct welding quality, surface finish, sealing components, and the exact CIP/SIP parameters (temperature, chemical concentration, exposure time). Ensure welds meet hygienic standards, verify surface finish (Ra), and confirm gasket/material compatibility for the intended cleaning/sterilization regimen.

Can TRICLOVER flange end for welding, stainless steel, type TKS withstand repeated CIP/SIP cycles at 16 bar without seal degradation?

Yes - the TRICLOVER flange end for welding, stainless steel, type TKS Format can withstand repeated CIP/SIP cycles at 16 bar without seal degradation provided correct selection and maintenance. The component is AISI 316 stainless steel and built to DIN 32676 for pharmaceutical/food/biotech use and liquid/highâviscosity media, and its 16 bar working pressure suits CIP/SIP operating pressures. To avoid seal degradation ensure: use compatible seal material rated for high temperatures and aggressive caustic/acid cleaners (e.g., EPDM, FKM, PTFE as appropriate), follow manufacturer temperature/time limits for SIP, ensure proper surface finish and weld quality, avoid mechanical damage during assembly, and perform routine inspection/replacement per process cycles.

Does TRICLOVER flange end for welding, stainless steel, type TKS meet GMP surface finish requirements for 16 bar systems?

Most likely yes, but confirmation requires supplier documentation. Explanation: TRICLOVER flange end for welding, stainless steel, type TKS is described as a DIN 32676-compatible weld stub made from AISI 316 for pharmaceutical, biotech, cosmetic, food and chemical use, for liquid and highâviscosity media, rated to 16 bar. DIN 32676 covers hygienic buttâweld ends and specifies dimensions and basic hygienic design; AISI 316 is the standard material for GMP applications. However GMP surface finish requirements are specific: typically an internal surface roughness Ra â¤ 0.8 Âµm (some applications require Ra â¤ 0.5 Âµm), electrochemical polish or electropolished finish, free from crevices/weld spatter, smooth welds blended to meet hygienic weld criteria, and documentation (material certificates, surface roughness measurements, weld procedure and inspection reports). DIN 32676 parts may be produced to these standards but the standard alone does not guarantee a particular Ra or postâweld finishing. What to request/verify from the vendor to demonstrate GMP compliance: - Explicit statement that TRICLOVER flange end for welding, stainless steel, type TKS is supplied with hygienic finish suitable for pharmaceutical/GMP use. - Measured internal surface roughness (Ra) report. - Confirmation of electropolishing or specified mechanical finish and Ra target. - Weld preparation/finish method and evidence that welds can be finished to GMP standards. - Material certificate (EN 10204/3.1) for AISI 316. - Traceability and any passivation/certification data. - Dimensional compliance with DIN 32676 and any additional hygienic design certificates. Conclusion: The productâs intended use and material make it appropriate for GMP environments, but acceptance for a 16 bar pharmaceutical system requires documented surface roughness and finishing evidence. Request the specific finish/Ra and supporting certificates from the supplier before acceptance.

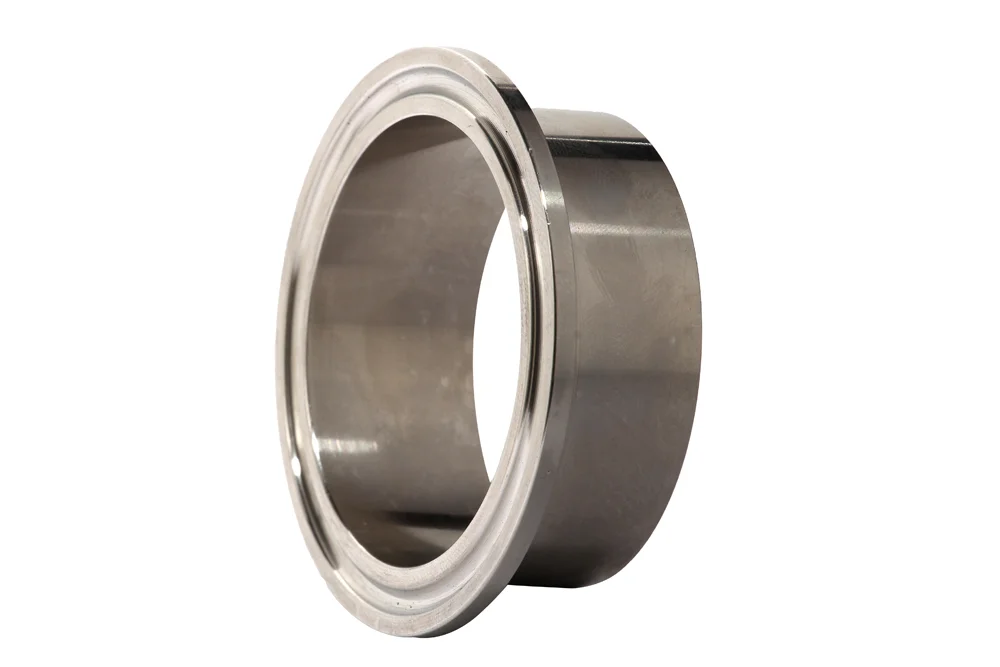

TRICLOVER flange end for welding, stainless steel, type TKS

All products, Hygienic stainless steel couplings/

Additional information

Material	SS – stainless steel

TRICLOVER flange end with a stub for welding to the installation, according to DIN 32676. For use in the pharmaceutical, biotechnology, cosmetic, food, and chemical industries, for liquid and high-viscosity media. Working pressure: 16 bar. Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-TKS-034-010	End. TRICLOVER for adult DN10, collar 34 mm	-	16	In stock	Enquiry
NH-TKS-034-015	End. TRICLOVER for adult DN15, collar 34 mm	-	16	In stock	Enquiry
NH-TKS-034-020	End. TRICLOVER for adult DN20, collar 34 mm	-	16	In stock	Enquiry
NH-TKS-050-025	End. TRICLOVER for adult DN25, collar 50.5 mm	-	16	In stock	Enquiry
NH-TKS-050-032	End. TRICLOVER for adult DN32, collar 50.5 mm	-	16	In stock	Enquiry
NH-TKS-050-038	End. TRICLOVER for adult DN38, collar 50.5 mm	-	16	In stock	Enquiry
NH-TKS-064-050	End. TRICLOVER for adult DN50, collar 64 mm	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

TRICLOVER flange end with a stub for welding to the installation, according to DIN 32676. For use in the pharmaceutical, biotechnology, cosmetic, food, and chemical industries, for liquid and high-viscosity media. Working pressure: 16 bar. Material: AISI 316 steel.
