Is the Adaptor - hexagonal head plug with GZ BSPT, stainless steel, type A113T suitable for high-pressure marine applications and corrosion-resistant environments?

Adaptor - hexagonal head plug with GZ BSPT, stainless steel, type A113T is likely suitable for many high-pressure marine and corrosionâresistant applications, but suitability depends on specific service conditions. Why it is generally suitable: - Material AISI 316 stainless steel offers good corrosion resistance in marine environments, including resistance to chloride-induced corrosion typical of seawater, better than 304 stainless. - BSPT (British Standard Pipe Taper) external thread provides a pressure-tight seal when properly installed with appropriate sealing compound or tape. - Hexagonal head plug design allows secure torque application for reliable sealing under pressure. Limitations and considerations: - AISI 316 has improved but not unlimited resistance to pitting and crevice corrosion in highly aggressive seawater or polluted marine environments; for very harsh conditions (warm, stagnant seawater, high chloride concentrations) consider duplex or superaustenitic alloys. - âHigh-pressureâ suitability requires verifying the componentâs pressure rating for the specific thread size and wall thickness; BSPT joints and the plugâs mechanical strength must meet system working pressure plus safety margin. - Temperature, media (e.g., hydraulic oil, fuel, seawater), cyclic loading, galvanic corrosion with mating materials, and installation torque affect performance. - Use appropriate sealing method for BSPT threads and ensure compatible mating threads/materials to avoid galling. Recommendation: Confirm the required pressure and temperature, check the plugâs certified pressure rating for the exact size, and evaluate exposure specifics. For many standard marine and moderate highâpressure applications, Adaptor - hexagonal head plug with GZ BSPT, stainless steel, type A113T will be suitable; for extreme conditions consider higherâgrade alloys or duplex stainless steel.

Can Adaptor - hexagonal head plug with GZ BSPT, stainless steel, type A113T withstand seawater and salt spray exposure?

Adaptor - hexagonal head plug with GZ BSPT, stainless steel, type A113T is made from AISI 316 stainless steel, which offers good corrosion resistance in marine environments and against salt spray. AISI 316 contains molybdenum that improves pitting and crevice corrosion resistance compared with 304. For general seawater and atmospheric salt-spray exposure, the A113T plug should perform well; however, long-term immersion in aggressive seawater, galvanic coupling, high temperatures, or contaminated/oxygen-depleted conditions can still cause localized corrosion. For critical or prolonged seawater service, consider additional protections (e.g., cathodic protection, coatings, regular maintenance) or duplex/super-austenitic alloys for improved resistance.

Does Adaptor - hexagonal head plug with GZ BSPT, stainless steel, type A113T meet NPT or other thread compatibility requirements?

Adaptor - hexagonal head plug with GZ BSPT, stainless steel, type A113T is specified with external BSPT threads (British Standard Pipe Taper). BSPT threads are different from NPT (National Pipe Taper) threads in thread form, pitch, and angle: BSPT uses a 55Â° thread angle and Whitworth 55Â° form, while NPT uses a 60Â° angle with a different thread profile. Because of these differences, BSPT and NPT threads are not directly compatible and will not provide a reliable pressure-tight seal if interchanged. Therefore Adaptor - hexagonal head plug with GZ BSPT, stainless steel, type A113T does not meet NPT compatibility requirements; it is intended for BSPT threaded connections. If you require NPT compatibility, choose a plug specified as NPT (or use an appropriate adapter designed for safe conversion between BSPT and NPT, taking sealing method and pressure rating into account).

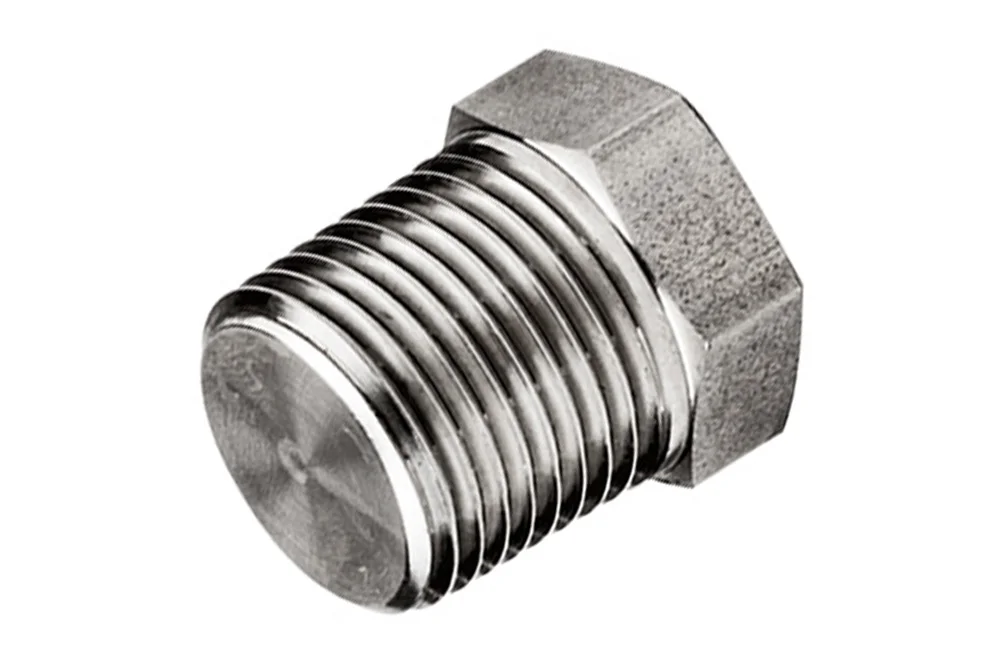

Adapter – plug with a hexagon head with BSPT male, stainless steel, type A113T

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel

Adapter – plug with a hexagon head with BSPT male thread, Material: AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A113T-04-SS	Plug 1/4" BSPT male, AISI 316	-	350	In stock	Enquiry
TI-A113T-06-SS	Plug 3/8" BSPT male, AISI 316	-	250	In stock	Enquiry
TI-A113T-08-SS	Plug 1/2" BSPT male, AISI 316	-	225	In stock	Enquiry
TI-A113T-12-SS	Plug 3/4" BSPT male, AISI 316	-	200	In stock	Enquiry
TI-A113T-16-SS	Plug 1" BSPT male, AISI 316	-	160	In stock	Enquiry
TI-A113T-20-SS	Plug 1.1/4" BSPT male, AISI 316	-	160	In stock	Enquiry
TI-A113T-24-SS	Plug 1.1/2" BSPT male, AISI 316	-	160	In stock	Enquiry
TI-A113T-32-SS	Plug 2" BSPT male, AISI 316	-	100	In stock	Enquiry
