Is the Adaptor - hexagonal head plug GZ BSPT, carbon steel, type A113T suitable for high-pressure hydraulic systems and what is its maximum working pressure?

Adaptor - hexagonal head plug GZ BSPT, carbon steel, type A113T is a general-purpose threaded plug made of galvanized carbon steel with an external BSPT (British Standard Pipe Taper) thread. Its suitability for high-pressure hydraulic systems depends on specific pressure ratings, which are not provided in the given description. Carbon steel construction can handle moderate to high pressures if the part is manufactured and rated accordingly, but BSPT threaded plugs are commonly used in fluid and pneumatic installations where pressure ratings vary by size, wall thickness, thread engagement and heat treatment. Without a certified maximum working pressure from the manufacturer or product datasheet, you should not assume it is suitable for high-pressure hydraulic service. To determine suitability and maximum working pressure, obtain the manufacturerâs technical specification or pressure rating for type A113T (including thread size and material grade) and confirm compatibility with your hydraulic systemâs maximum operating pressure and safety factor.

Does the Adaptor - hexagonal head plug GZ BSPT, carbon steel, type A113T resist corrosion in marine environments?

Adaptor - hexagonal head plug GZ BSPT, carbon steel, type A113T has a galvanized carbon steel construction. Galvanization (zinc coating) provides sacrificial corrosion protection and improves resistance to rust compared with bare carbon steel, so it offers basic protection in mildly corrosive or intermittent wet environments. However, in harsh marine conditions (continuous salt spray, high humidity, splash zones, or immersion) standard galvanization will degrade over time and is not as durable as stainless steel, duplex, or specially coated materials. For long-term marine exposure or critical applications, choose stainless steel or additional protective coatings and regular maintenance.

What sealing methods are recommended for Adaptor - hexagonal head plug GZ BSPT, carbon steel, type A113T to prevent leaks?

For the Adaptor - hexagonal head plug GZ BSPT, carbon steel, type A113T, recommended sealing methods to prevent leaks are: 1. Thread sealant tape (PTFE tape). wrap 3â5 turns clockwise on the external BSPT thread, ensure even coverage and avoid overhang into bore. Use PTFE rated for petroleum/hydraulic service if applicable. 2. Thread sealant paste (anaerobic or PTFE-based). apply a thin, even layer to male threads before assembly. Choose a product compatible with carbon steel and the conveyed media; anaerobic sealants cure in the absence of air and give strong, vibration-resistant seals. 3. Combined use. PTFE tape plus a small amount of sealing paste can improve reliability in high-pressure or dynamic systems. 4. Mechanical joint enhancement. tighten to the manufacturerâs recommended torque for BSPT threads to compress the tapered thread interface without over-stressing the carbon steel plug. Use proper tools and avoid excessive torque that can damage galvanizing. 5. Optional gasket/washer. if mating into a port allowing a face seal, use a suitable metal or elastomeric washer compatible with media and temperature; however BSPT relies primarily on tapered thread sealing, so face gaskets are secondary. 6. Surface preparation and corrosion protection. ensure threads are clean, undamaged, and free of galvanizing flake; repair or replace parts with thread damage. For long-term prevention, consider suitable anti-corrosion coatings or maintenance of galvanizing. Select sealant type based on operating pressure, temperature, media chemical compatibility, and service requirements; always follow sealant manufacturer instructions and industry standards for BSPT tapered thread assembly.

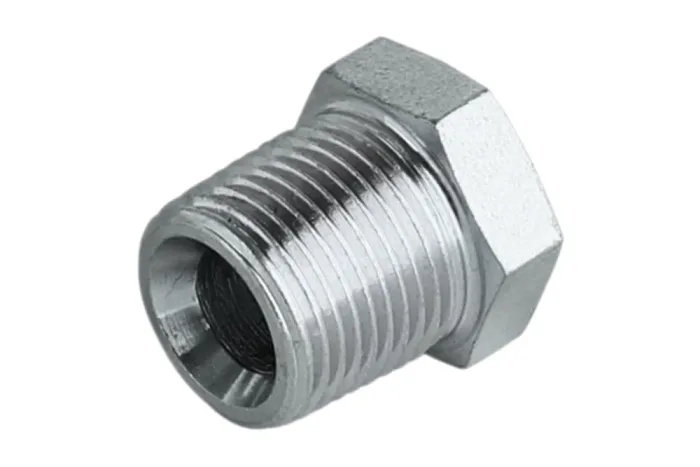

Adaptor – hexagonal head plug GZ BSPT, carbon steel, type A113T

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

Adaptor – plug with hexagonal head and external BSPT thread. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A113T-02	GZ BSPT 1/8" plug	-	350	In stock	Enquiry
TI-A113T-04	BSPT 1/4" plug	-	350	In stock	Enquiry
TI-A113T-06	3/8" BSPT plug	-	250	In stock	Enquiry
TI-A113T-08	GZ BSPT 1/2" plug	-	225	In stock	Enquiry
TI-A113T-12	GZ BSPT 3/4" plug	-	200	In stock	Enquiry
TI-A113T-16	GZ BSPT 1"" plug	-	160	In stock	Enquiry
TI-A113T-20	Plug GZ BSPT 1.1/4"	-	160	In stock	Enquiry
TI-A113T-24	Plug GZ BSPT 1.1/2"	-	160	In stock	Enquiry
TI-A113T-32	GZ BSPT 2"" plug	-	100	In stock	Enquiry
