Can the Adaptor - reduction from GZ / GW NPT, carbon steel, type A303 be used with thread sealant on both external and internal NPT threads?

Yes. The Adaptor - reduction from GZ / GW NPT, carbon steel, type A303 can be used with thread sealant on both its external and internal NPT threads. The product description explicitly notes "external NPT thread (thread seal) and internal NPT thread (thread seal)," indicating both threads are intended to be sealed. Use a sealant compatible with carbon steel and the media, temperature and pressure of your system, and follow proper application and assembly procedures for NPT connections (apply sealant to male threads, avoid contaminating the bore, and tighten to recommended engagement).

Is Adaptor - reduction from GZ / GW NPT, carbon steel, type A303 compatible with PTFE tape on both internal and external NPT threads?

Adaptor - reduction from GZ / GW NPT, carbon steel, type A303 Format: Yes. The High-pressure adaptor type A303 is specified with both external NPT thread (thread seal) and internal NPT thread (thread seal), carbon steel, galvanized. PTFE tape is compatible for sealing both external and internal NPT threads on this adaptor, provided standard proper tape application is used (wrap external male threads in the direction of engagement; for internal female threads, tape can be applied on a male fitting that threads into the adaptor). Ensure tape is applied neatly and not used as a substitute for correct thread engagement; verify compatibility with system media and pressure ratings.

Does Adaptor - reduction from GZ / GW NPT, carbon steel, type A303 require specific torque when using thread sealant?

Adaptor - reduction from GZ / GW NPT, carbon steel, type A303: Yes. when using thread sealant on the NPT male/female threads of this highâpressure adaptor, you should still apply proper torque. NPT fittings seal by thread interference and deformation; thread sealant helps fill gaps and improve sealing but does not replace correct tightening. Follow these guidelines: - Use the manufacturerâs recommended torque values if available for carbon steel NPT fittings of the relevant size. - If no specific torque is provided, tighten to typical NPT assembly practice: handâtight plus additional turns with a wrench (commonly 2â3 turns for tapered NPT), or tighten to a torque consistent with pipe size and material tables (avoid overâtorquing). - Apply thread sealant appropriately on male threads only, keeping sealant away from the first thread near the end to prevent contamination of the flow path. - Ensure threads are clean and undamaged; use compatible sealant for carbon steel and the system media/pressure. - After assembly, inspect for leaks under pressure and, if necessary, retorque per safe practice (only when system is depressurized and cooled to ambient). In summary: thread sealant does not eliminate the need for correct torque. use recommended torque/assembly practice for NPT carbon steel fittings and manufacturer guidance when available.

Adapter – reducer male / NPT female, carbon steel, type A303

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

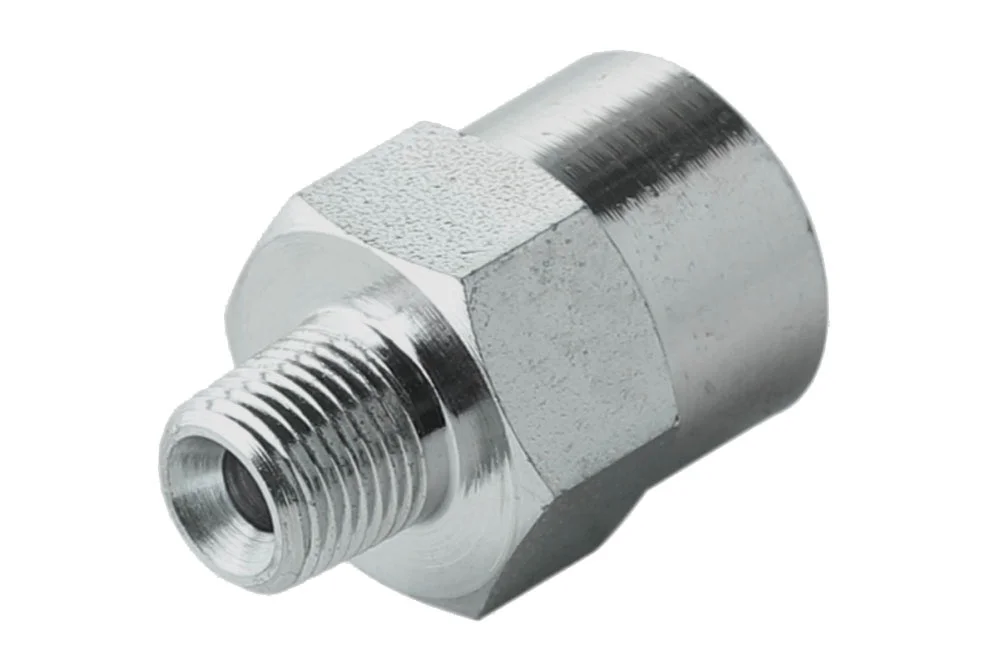

High-pressure adapter type A303 with NPT male thread (thread sealing) and with NPT female thread (thread sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A303-02-02	Adapter 1/8" NPT male / 1/8" NPT female	-	345	In stock	Enquiry
TI-A303-02-04	Adapter 1/8" NPT male / 1/4" NPT female	-	345	In stock	Enquiry
TI-A303-02-06	Adapter 1/8" NPT male / 3/8" NPT female	-	276	In stock	Enquiry
TI-A303-04-02	Adapter 1/4" NPT male / 1/8" NPT female	-	345	In stock	Enquiry
TI-A303-04-04	Adapter 1/4" NPT male / 1/4" NPT female	-	345	In stock	Enquiry
TI-A303-04-06	Adapter 1/4" NPT male / 3/8" NPT female	-	276	In stock	Enquiry
TI-A303-04-08	Adapter 1/4" NPT male / 1/2" NPT female	-	241	In stock	Enquiry
TI-A303-06-02	Adapter 3/8" NPT male / 1/8" NPT female	-	276	In stock	Enquiry
TI-A303-06-04	Adapter 3/8" NPT male / 1/4" NPT female	-	276	In stock	Enquiry
TI-A303-06-06	Adapter 3/8" NPT male / 3/8" NPT female	-	276	In stock	Enquiry
TI-A303-06-08	Adapter 3/8" NPT male / 1/2" NPT female	-	241	In stock	Enquiry
TI-A303-08-02	Adapter 1/2" NPT male / 1/8" NPT female	-	241	In stock	Enquiry
TI-A303-08-04	Adapter 1/2" NPT male / 1/4" NPT female	-	241	In stock	Enquiry
TI-A303-08-06	Adapter 1/2" NPT male / 3/8" NPT female	-	241	In stock	Enquiry
TI-A303-08-08	Adapter 1/2" NPT male / 1/2" NPT female	-	241	In stock	Enquiry
TI-A303-08-12	Adapter 1/2" NPT male / 3/4" NPT female	-	155	In stock	Enquiry
TI-A303-08-16	Adapter 1/2" NPT male / 1" NPT female	-	138	In stock	Enquiry
TI-A303-12-04	Adapter 3/4" NPT male / 1/4" NPT female	-	155	In stock	Enquiry
TI-A303-12-06	Adapter 3/4" NPT male / 3/8" NPT female	-	155	In stock	Enquiry
TI-A303-12-08	Adapter 3/4" NPT male / 1/2" NPT female	-	155	In stock	Enquiry
TI-A303-12-12	Adapter 3/4" NPT male / 3/4" NPT female	-	155	In stock	Enquiry
TI-A303-12-20	Adapter 3/4" NPT male / 1.1/4" NPT female	-	112	In stock	Enquiry
TI-A303-16-04	Adapter 1" NPT male / 1/4" NPT female	-	138	In stock	Enquiry
TI-A303-16-06	Adapter 1" NPT male / 3/8" NPT female	-	138	In stock	Enquiry
TI-A303-16-08	Adapter 1" NPT male / 1/2" NPT female	-	138	In stock	Enquiry
TI-A303-16-12	Adapter 1" NPT male / 3/4" NPT female	-	138	In stock	Enquiry
TI-A303-16-16	Adapter 1" NPT male / 1" NPT female	-	138	In stock	Enquiry
TI-A303-16-20	Adapter 1" NPT male / 1.1/4" NPT female	-	112	In stock	Enquiry
TI-A303-20-08	Adapter 1.1/4" NPT male / 1/2" NPT female	-	112	In stock	Enquiry
TI-A303-20-12	Adapter 1.1/4" NPT male / 3/4" NPT female	-	112	In stock	Enquiry
TI-A303-20-16	Adapter 1.1/4" NPT male / 1" NPT female	-	112	In stock	Enquiry
TI-A303-20-24	Adapter 1.1/4" NPT male / 1.1/2" NPT female	-	86	In stock	Enquiry
TI-A303-24-12	Adapter 1.1/2" NPT male / 3/4" NPT female	-	86	In stock	Enquiry
TI-A303-24-16	Adapter 1.1/2" NPT male / 1" NPT female	-	86	In stock	Enquiry
TI-A303-24-20	Adapter 1.1/2" NPT male / 1.1/4" NPT female	-	86	In stock	Enquiry
TI-A303-32-16	Adapter 2" NPT male / 1" NPT female	-	78	In stock	Enquiry
TI-A303-32-20	Adapter 2" NPT male / 1.1/4" NPT female	-	78	In stock	Enquiry
TI-A303-32-24	Adapter 2" NPT male / 1.1/2" NPT female	-	78	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure adapter type A303 with NPT male thread (thread sealing) and with NPT female thread (thread sealing). Material: carbon steel, galvanized.
