Can a Hose clamp, two-part with integrated tongue, cast iron be used on hoses without a safety flange at 16 bar working pressure?

Yes . provided all conditions are met. The Hose clamp, two-part with integrated tongue, cast iron is specifically designed for mounting on hose ends and connections that lack a safety flange (lock). When you use a properly selected hose and compatible end fitting, and you install the clamp correctly, the assembly can safely operate up to the stated working pressure of 16 bar. Key requirements to ensure safety and performance: - Use a hose rated for â¥16 bar and compatible with the fluid and temperature. - Use an end fitting (tail) that matches the hose and the clampâs geometry to ensure even compression and no slippage. - Follow correct installation procedure and clamp torque so the integrated tongue engages as intended and distributes load evenly. - Inspect for damage, corrosion, and proper galvanization; ensure components are in good condition. If any of these conditions are not met (wrong hose rating, improper fitting, poor installation, or damaged parts), the clamp should not be relied on at 16 bar.

Is the Hose clamp, two-part with integrated tongue, cast iron suitable for repeated removal and reassembly at 16 bar?

Yes - the Hose clamp, two-part with integrated tongue, cast iron is suitable for repeated removal and reassembly at up to 16 bar, provided conditions are met. The clamp is made of galvanized ductile cast iron with integrated pressure tongues and is designed for hose tails without a safety flange. With correct installation, an appropriately selected hose and compatible end fitting, it will support a working pressure up to 16 bar and withstand repeated assembly/disassembly cycles. Ensure torque settings, hose type, and end fitting match manufacturer recommendations to maintain sealing and prevent damage during repeated reuse.

Does the Hose clamp, two-part with integrated tongue, cast iron require special hose liners for 16 bar operation?

Hose clamp, two-part with integrated tongue, cast iron Format. based on the provided description, special hose liners are not explicitly required for 16 bar operation. The text states that with proper installation, an appropriately selected hose, and a suitable end fitting, the working pressure can be up to 16 bar. That implies the clamp itself is capable of 16 bar when used with a hose and end fitting rated for that pressure. Recommendations: - Use a hose rated for â¥16 bar and compatible with the conveyed medium and temperature. - Ensure the hose end fitting (tail) and any sealing surfaces are rated and designed for 16 bar and match the clamp geometry (no safety flange). - Follow manufacturer installation instructions and torque specifications to achieve proper compression and sealing. - If the hose material is soft or prone to extrusion under clamping, consider using an internal or external liner or reinforcement recommended by the hose manufacturer. - For critical or safety-sensitive applications, consult the hose and clamp manufacturers for confirmation and any recommended liners or accessories. In summary: Hose clamp, two-part with integrated tongue, cast iron Format does not inherently require special liners for 16 bar, but the hose and end fitting must be appropriate for that pressure and liners may be needed depending on hose construction and application.

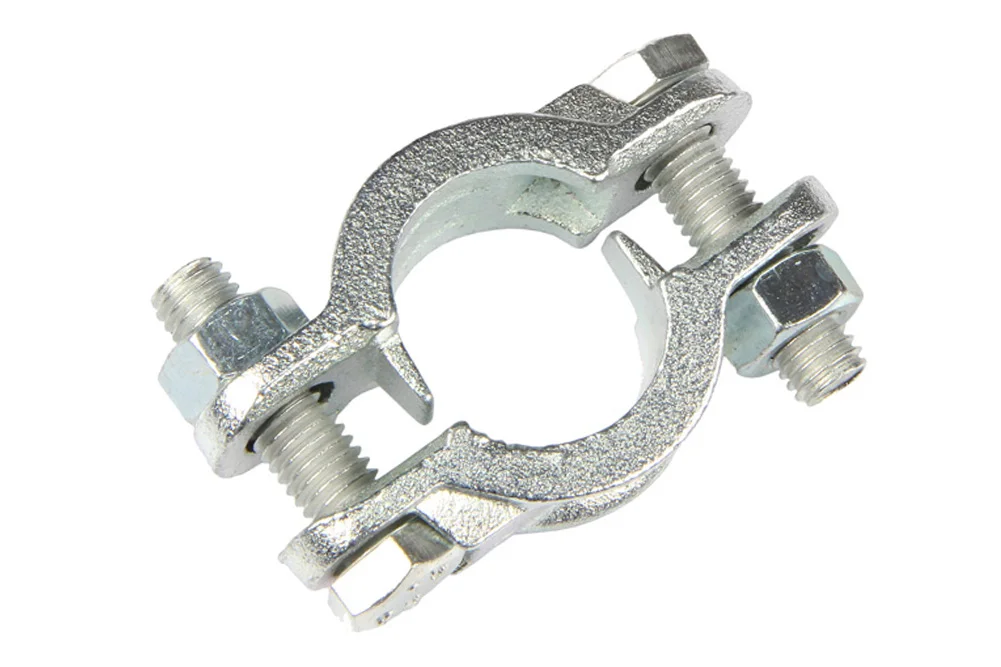

Hose clamp, two-part with integrated tongue, cast iron

Additional information

Material	CS – steel (cast iron)

Two-part clamp with integrated, cast pressure “tongues.” The clamp is designed for mounting ends and connections with a hose part (“tail”) without a lock (safety flange), made of high-quality ductile cast iron, galvanized (with yellow passivation free of hexavalent chromium). Material: galvanized ductile cast iron. With proper installation, appropriately selected hose, and end fitting, working pressure up to 16 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MU-1352	2-piece clamp with a tongue 17÷22 mm (1/2")	-	-	In stock	0 zł		Enquiry
MU-1353	2-piece clamp with a tongue 27÷32 mm (3/4")	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Two-part clamp with integrated, cast pressure “tongues.” The clamp is designed for mounting ends and connections with a hose part (“tail”) without a lock (safety flange), made of high-quality ductile cast iron, galvanized (with yellow passivation free of hexavalent chromium). Material: galvanized ductile cast iron. With proper installation, appropriately selected hose, and end fitting, working pressure up to 16 bar.
