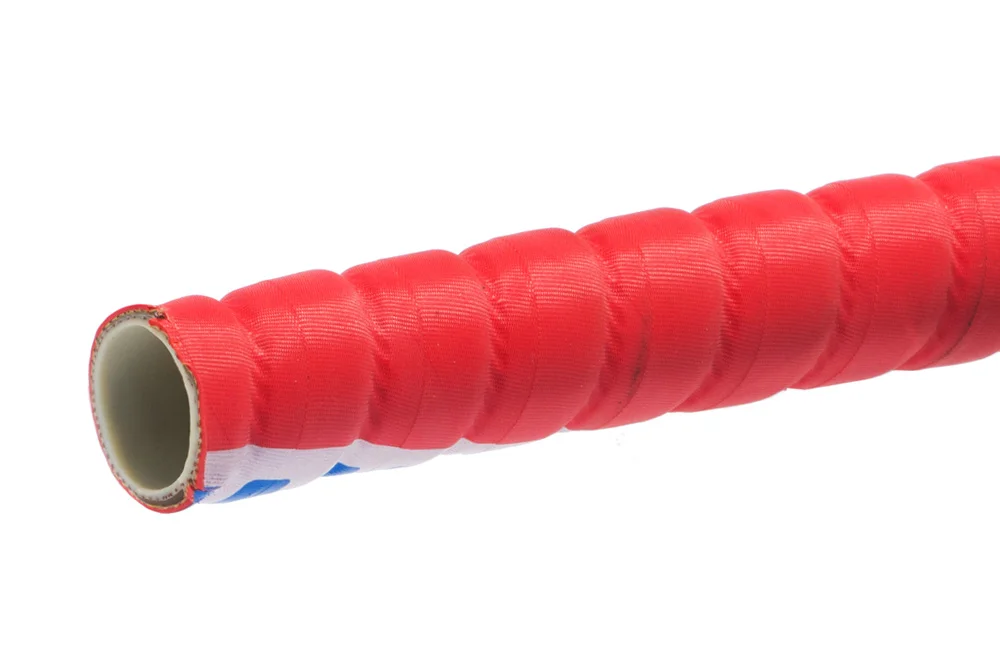

VINOFLEX EASY flexible hose for wine and spirits
Suction and discharge hose, intended for the transfer of wine, beer, fruit juices, alcohols with a concentration of up to 96%, and other food substances that do not contain fats. The inner layer is odorless and tasteless. It does not contain phthalates and bisphenol A, as well as polycyclic aromatic hydrocarbons (PAH Free), in accordance with ZEK 01.4-08 Cat.1. Tested for heavy metals. Thanks to the external corrugation, the hose is exceptionally flexible and elastic. The outer surface of the hose made of thermoplastic material with slippery fabric properties has a very low coefficient of friction, which further facilitates hose handling and eliminates friction with other hoses and equipment components. The recommended method of installation with fittings is special EASY SHELL clamp shells, shaped to fit the hose corrugation. Standards and requirements: Food industry, food contact 1935/2004/EC and 2023/2006/EC (GMP). Inner layer compliant with FDA 21 CFR 177.2600, BfR XXI cat. 2, D.M. 21/03/73. Inner layer: white, smooth butyl rubber (IIR). Reinforcement: synthetic cord, steel spiral. Outer layer: red synthetic rubber with a thermoplastic coating. Working pressure: 10 bar. Vacuum: 0.6 bar. Operating temperature: from -40°C to +120°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Suction and discharge hose, intended for the transfer of wine, beer, fruit juices, alcohols with a concentration of up to 96%, and other food substances that do not contain fats. The inner layer is odorless and tasteless. It does not contain phthalates and bisphenol A, as well as polycyclic aromatic hydrocarbons (PAH Free), in accordance with ZEK 01.4-08 Cat.1. Tested for heavy metals. Thanks to the external corrugation, the hose is exceptionally flexible and elastic. The outer surface of the hose made of thermoplastic material with slippery fabric properties has a very low coefficient of friction, which further facilitates hose handling and eliminates friction with other hoses and equipment components. The recommended method of installation with fittings is special EASY SHELL clamp shells, shaped to fit the hose corrugation. Standards and requirements: Food industry, food contact 1935/2004/EC and 2023/2006/EC (GMP). Inner layer compliant with FDA 21 CFR 177.2600, BfR XXI cat. 2, D.M. 21/03/73. Inner layer: white, smooth butyl rubber (IIR). Reinforcement: synthetic cord, steel spiral. Outer layer: red synthetic rubber with a thermoplastic coating. Working pressure: 10 bar. Vacuum: 0.6 bar. Operating temperature: from -40°C to +120°C.
Additional information
| Material | IIR – butyl rubber |
|---|---|
| Maximum operating temperature [°C] | 120 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | yes |
| Standard length [m] | 60, 60 / 120 |
| Reinforcement | steel spiral, synthetic cover |
