Is the DKR 45Â° hydraulic end, type ZBW310, carbon steel, zinc-nickel compatible with standard crimping sleeves for hydraulic hose assembly?

Yes . the DKR 45Â° hydraulic end, type ZBW310, carbon steel, zinc-nickel is compatible with standard crimping sleeves for hydraulic hose assembly, provided the sleeve is matched to the hose type and dimensions. The product description explicitly states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type." Key points to ensure compatibility: - Use a crimping sleeve sized and specified for the hose inner/outer diameter and reinforcement (e.g., textile, single-wire, spiral). - Confirm the hose tail (regular hydraulic "tail") dimensions and profile match the sleeve and the hose manufacturerâs assembly instructions. - Maintain correct crimping parameters (force, die profile, and crimp length) per hose and sleeve manufacturer recommendations. - The internal BSP thread, 60Â° DKR sealing cone and 45Â° angle do not prevent crimping compatibility; they affect connection sealing and routing, not the crimp sleeve fit. - Corrosion-resistant zinc-nickel coating does not interfere with crimping function. If you supply the hose type and sleeve model, I can confirm fit and recommend crimp specifications.

Can the DKR 45Â° hydraulic end, type ZBW310, carbon steel, zinc-nickel withstand continuous exposure to corrosive environments without additional protection?

No. The DKR 45Â° hydraulic end, type ZBW310, carbon steel, zinc-nickel offers very high corrosion resistance due to its zinc-nickel coating (6â10 Âµm) and is rated up to ~720 hours in salt spray tests, which makes it suitable for many corrosive conditions. However, continuous exposure to aggressive or marine environments typically exceeds salt-spray test conditions and can lead to eventual degradation. For guaranteed long-term performance in continuously corrosive environments, additional protective measures (e.g., thicker coating, corrosion-resistant base material like stainless steel, sealing, or regular maintenance) are recommended.

Does the DKR 45Â° hydraulic end, type ZBW310, carbon steel, zinc-nickel require special tools for installation?

No, the DKR 45Â° hydraulic end, type ZBW310, carbon steel, zinc-nickel does not require any special or proprietary tools for installation. It is designed for crimping into hydraulic and industrial hoses using a crimping sleeve that is appropriate for the hose type. Standard hydraulic hose crimping equipment (with the correct crimping die/profile and sleeve size matched to your hose) is all thatâs needed. Ensure you use the correct sleeve dimensions and crimping parameters recommended for the hose to achieve a secure, leak-free connection. Also follow good practice: clean hose ends, check internal BSP thread and nut fit, and inspect the 60Â° sealing cone seating after crimping.

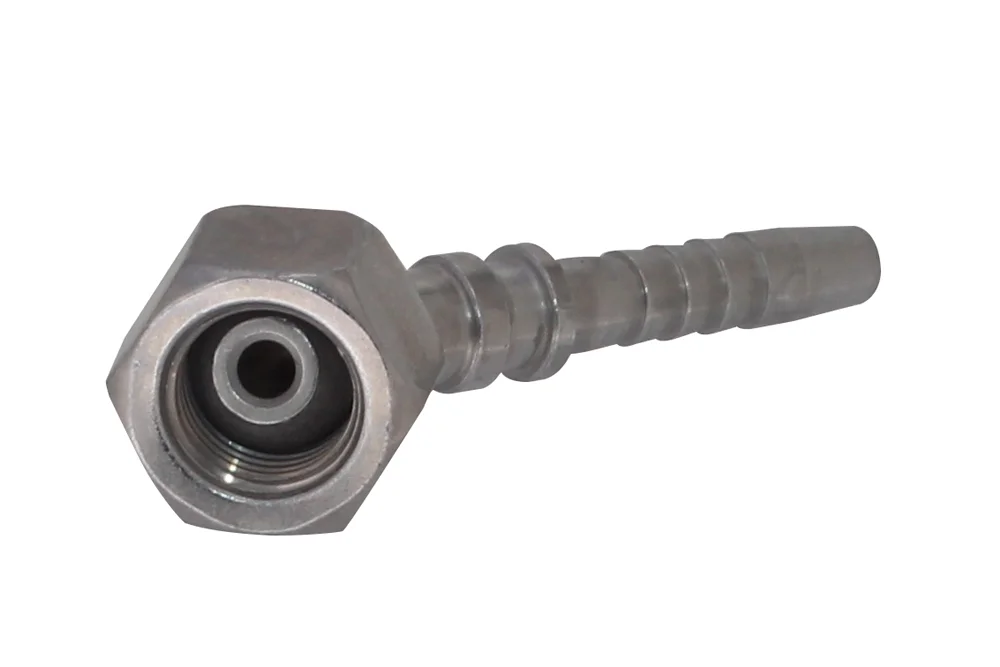

Fitting hydraulic DKR 45°, type ZBW310, carbon steel, zinc-nickel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with BSP female thread with a nut, 60° sealing cone (DKR), angled 45°. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which offers very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW310-02-03-CN	Fitting 45° 1/8" BSP female, hose 3/16", 60° cone, Zn-Ni	5	-	In stock	Enquiry
TI-ZBW310-02-04-CN	Fitting 45° 1/8" BSP female, hose 1/4", 60° cone, Zn-Ni	6	-	In stock	Enquiry
TI-ZBW310-04-04-CN	Fitting 45° 1/4" BSP female, hose 1/4", 60° cone, Zn-Ni	6	-	In stock	Enquiry
TI-ZBW310-06-04-CN	Fitting 45° 3/8" BSP female, hose 1/4", 60° cone, Zn-Ni	6	-	In stock	Enquiry
TI-ZBW310-06-05-CN	Fitting 45° 3/8" BSP female, hose 5/16", 60° cone, Zn-Ni	8	-	In stock	Enquiry
TI-ZBW310-06-06-CN	Fitting 45° 3/8" BSP female, hose 3/8", 60° cone, Zn-Ni	10	-	In stock	Enquiry
TI-ZBW310-08-06-CN	Fitting 45° 1/2" BSP female, hose 3/8", 60° cone, Zn-Ni	10	-	In stock	Enquiry
TI-ZBW310-08-08-CN	Fitting 45° 1/2" BSP female, hose 1/2", 60° cone, Zn-Ni	12	-	In stock	Enquiry
TI-ZBW310-10-08-CN	Fitting 45° 5/8" BSP female, hose 1/2", 60° cone, Zn-Ni	12	-	In stock	Enquiry
TI-ZBW310-10-10-CN	Fitting 45° 5/8" BSP female, hose 5/8", 60° cone, Zn-Ni	16	-	In stock	Enquiry
TI-ZBW310-12-08-CN	Fitting 45° 3/4" BSP female, hose 1/2", 60° cone, Zn-Ni	12	-	In stock	Enquiry
TI-ZBW310-12-10-CN	Fitting 45° 3/4" BSP female, hose 5/8", 60° cone, Zn-Ni	16	-	In stock	Enquiry
TI-ZBW310-12-12-CN	Fitting 45° 3/4" BSP female, hose 3/4", 60° cone, Zn-Ni	20	-	In stock	Enquiry
TI-ZBW310-16-12-CN	Fitting 45° 1" BSP female, hose 3/4", 60° cone, Zn-Ni	20	-	In stock	Enquiry
TI-ZBW310-16-16-CN	Fitting 45° 1" BSP female, hose 1", 60° cone, Zn-Ni	25	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with BSP female thread with a nut, 60° sealing cone (DKR), angled 45°. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which offers very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
