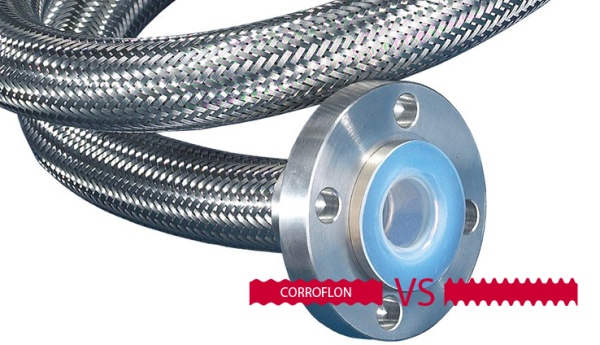

Smoothbore PTFE hoses reinforced with stainless steel braid. Can be used at high working pressure (up to several hundred bar). Working temperature ranges from -70°C up to +260°C. Available in AS version with antistatic PTFE to prevent static charge build-up. Extensively used in a variety of industrial applications as complete hose assemblies with fittings crimped with ferrules.

Basic smoothbore braided hoses:

• SMOOTHBORE – PTFE smoothbore hose in a single or double AISI 304 stainless steel braid. It is assembled with special fittings for PTFE hoses. Nominal diameter from 1/8″ to 2″.
• HYPERLINE SB – PTFE smoothbore hose in AISI 304 stainless steel braid. To be crimped with standard hydraulic fittings. Nominal diameter from 3/16″ to 1″.

Corrugated PTFE hoses

Corrugated PTFE hoses offer superior flexibility due to a corrugated PTFE hose wall with outer braid made of stainless steel, polypropylene or Kevlar. Average working pressure – up to almost 100 bar. Working temperature ranges from -70°C to 260°C (depending on hose type). An antistatic version that prevents the build-up of static charge is also available. Extensively used in a variety of industrial applications as complete hose assemblies with fittings crimped with ferrules.

• VISIFLON (HYPERLINE V) – helically corrugated inside and outside, extremely flexible PTFE hose in AISI 304 stainless steel or polypropylene braid. Assembled with special PTFE hose fittings or standard hydraulic fittings. Available as complete hose assemblies. Nominal diameter from 3/8″ to 2″.
• HYPERLINE FX – corrugated outside, smoothbore inside PTFE hose with AISI 304 stainless steel braid or Kevlar braid (aramid fibre). Assembled with standard hydraulic fittings. Nominal diameter from 1/4″ to 1″.
